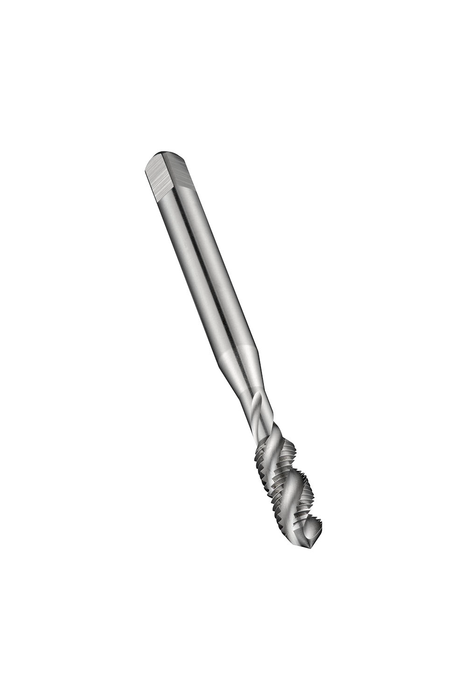

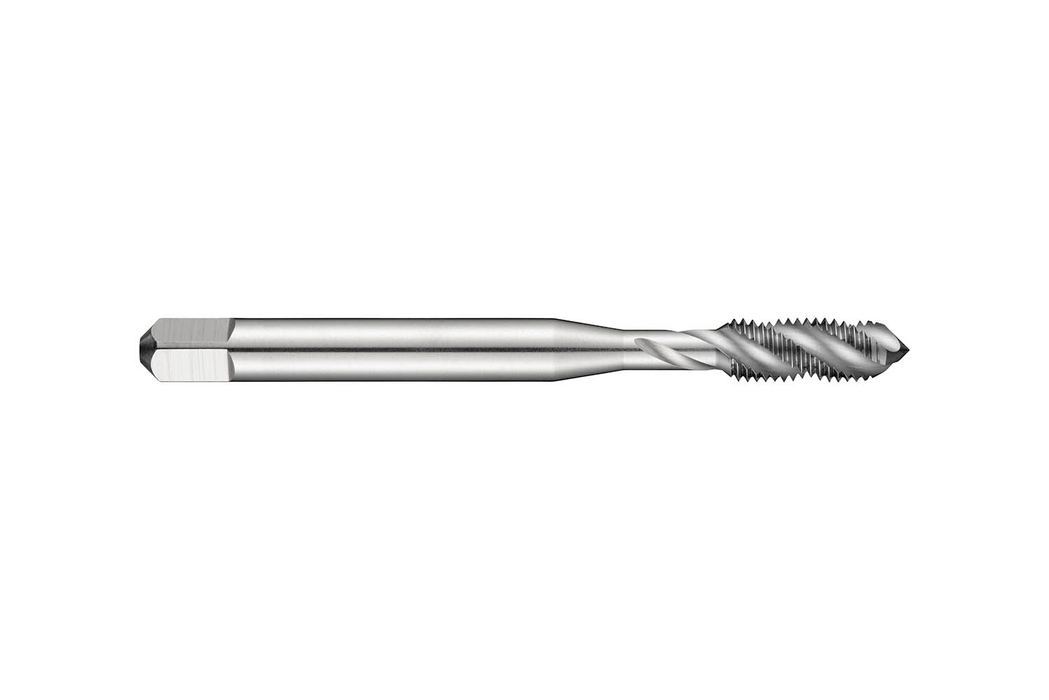

E621M10

E621M10

SKU DOR5978401
by Dormer Pramet
Primary Use: Possible Use:

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM10 with 1.50 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$75.11 - $75.11
$75.11
$75.11 - $75.11
$75.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

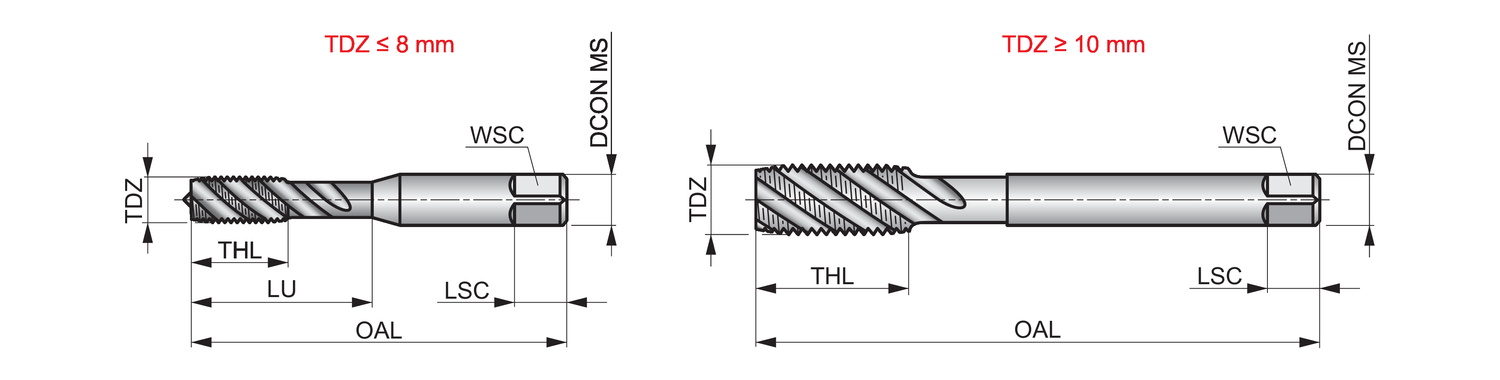

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 3.5039

Connetion Diameter: 0.3543

Tool Direction: Right

Diameter Size: 10

Thread Diameter - in: 0.4705

Thread Diameter - mm: 11.95

Pitch - mm: 1.5

Pitch - in: 0.0591

Thread Form: EGM - EGM (Wire Insert)

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 384961

EAN: 7320760384961

MFG Part Number: 5978401
