E6533/8

E6533/8

SKU DOR5978403
by Dormer Pramet
Primary Use: Possible Use:

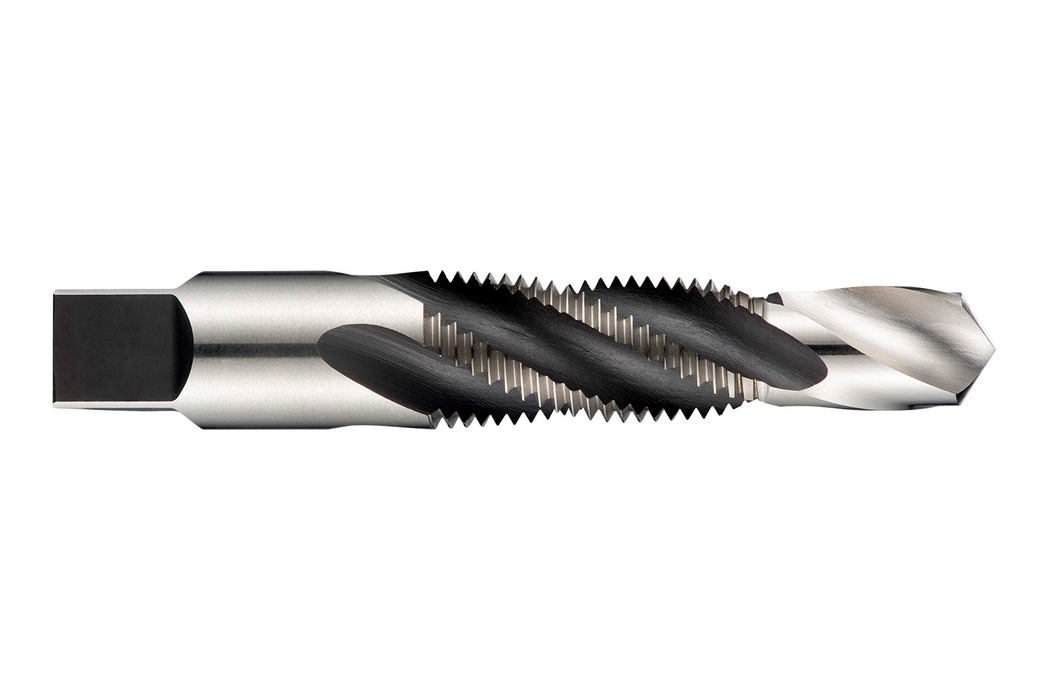

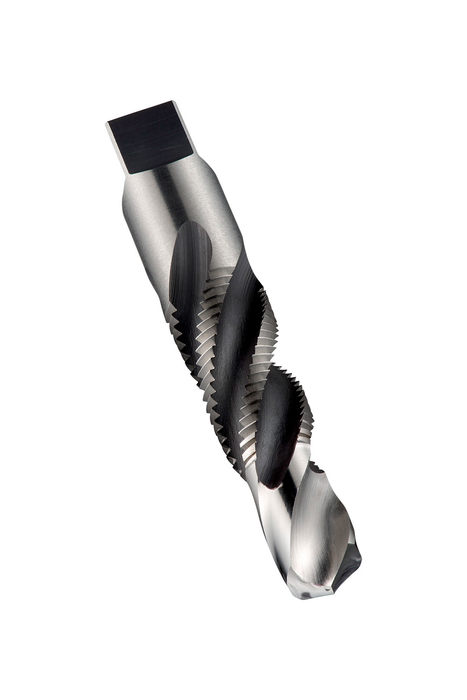

Combination drill-tap with a 27° spiral flute, for National Pipe Taper thread NPT 3/8" with 18 TPI and Normal class of fit, dimensions according to ANSI standard with 0.7000" shank and 0.7000" square drive, HSS with bright finish and 27° helix angle for 1.5xD through or blind hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$156.96 - $156.96
$156.96
$156.96 - $156.96
$156.96
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

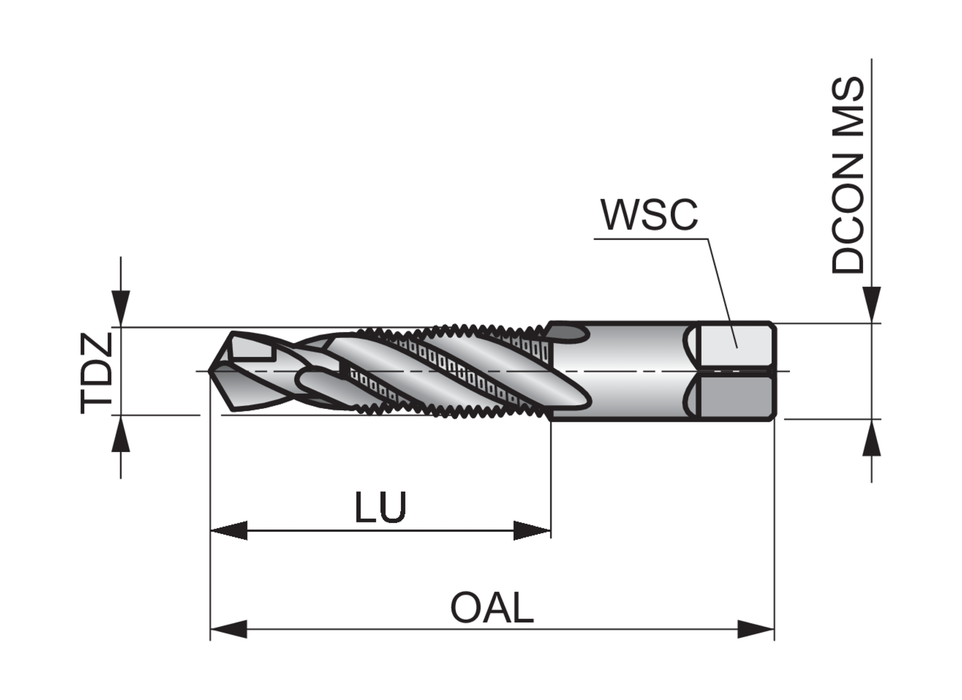

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.5

Connetion Diameter: 0.7

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.5709

TPI: 18.0

Thread Form: NPT - National taper pipe

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 297308

EAN: 7320760297308

MFG Part Number: 5978403
