E621M14

Name: E621M14
Brand: Dormer Pramet
SKU: DOR5978435
Price: 144.24 CAD
Availability: InStock

SKU DOR5978435

by Dormer Pramet

Primary Use: Possible Use:

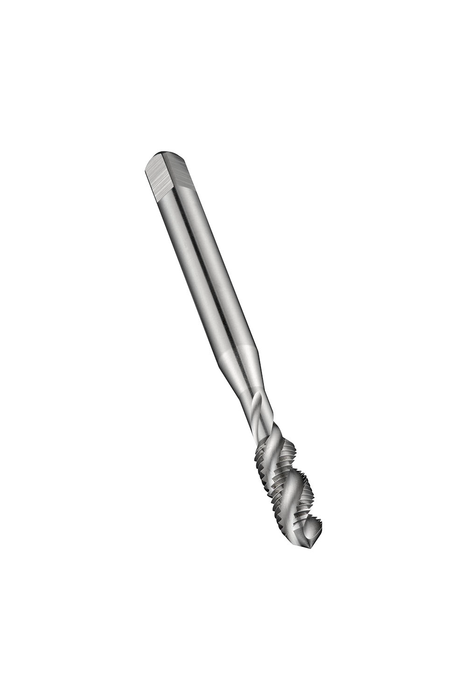

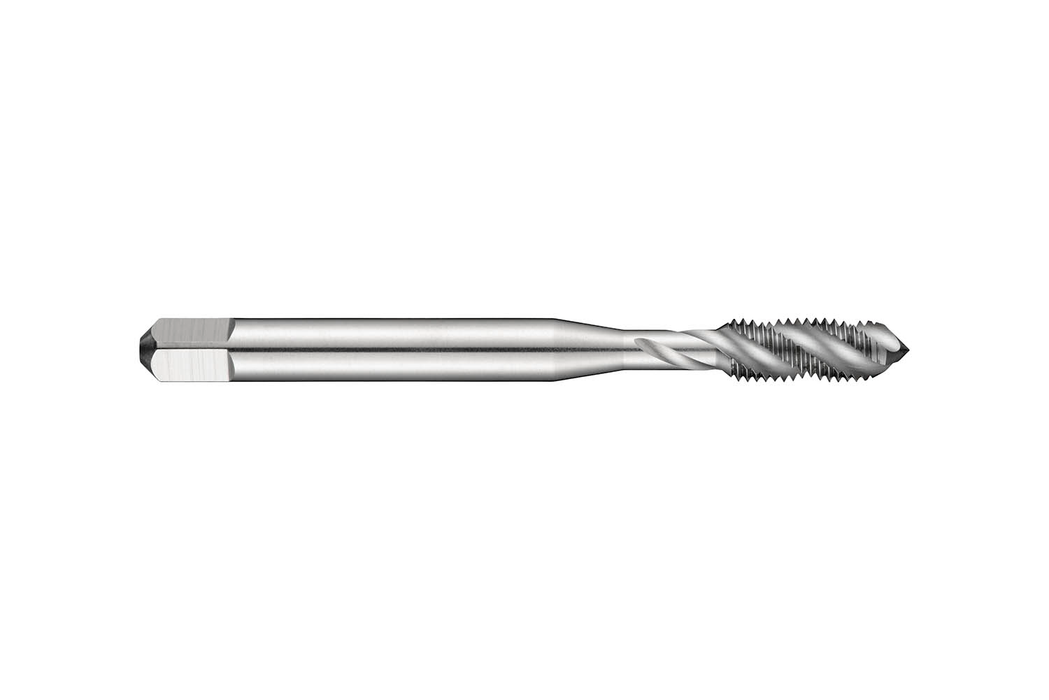

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM14 with 2.00 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 14.0mm shank and 11.2mm square drive, HSS with bright finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here

$144.24 - $144.24

$144.24

$144.24 - $144.24

$144.24

For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

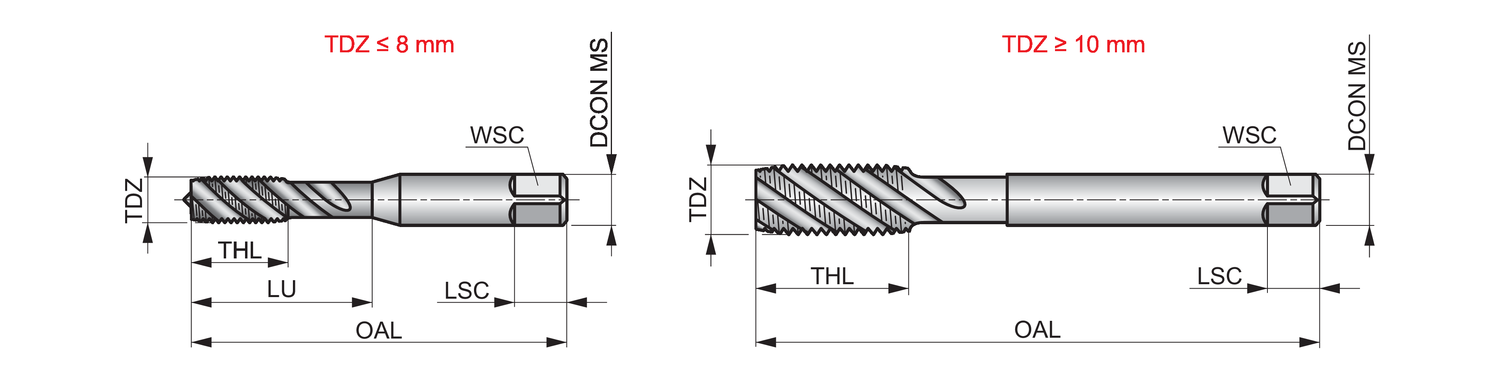

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 4.4094

Connetion Diameter: 0.5512

Tool Direction: Right

Diameter Size: 14

Thread Diameter - in: 0.6535

Thread Diameter - mm: 16.6

Pitch - mm: 2.0

Pitch - in: 0.0787

Thread Form: EGM - EGM (Wire Insert)

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 384985

EAN: 7320760384985

MFG Part Number: 5978435
