F3701/4X1.5/16

F3701/4X1.5/16

SKU DOR5978451
by Dormer Pramet
Primary Use:

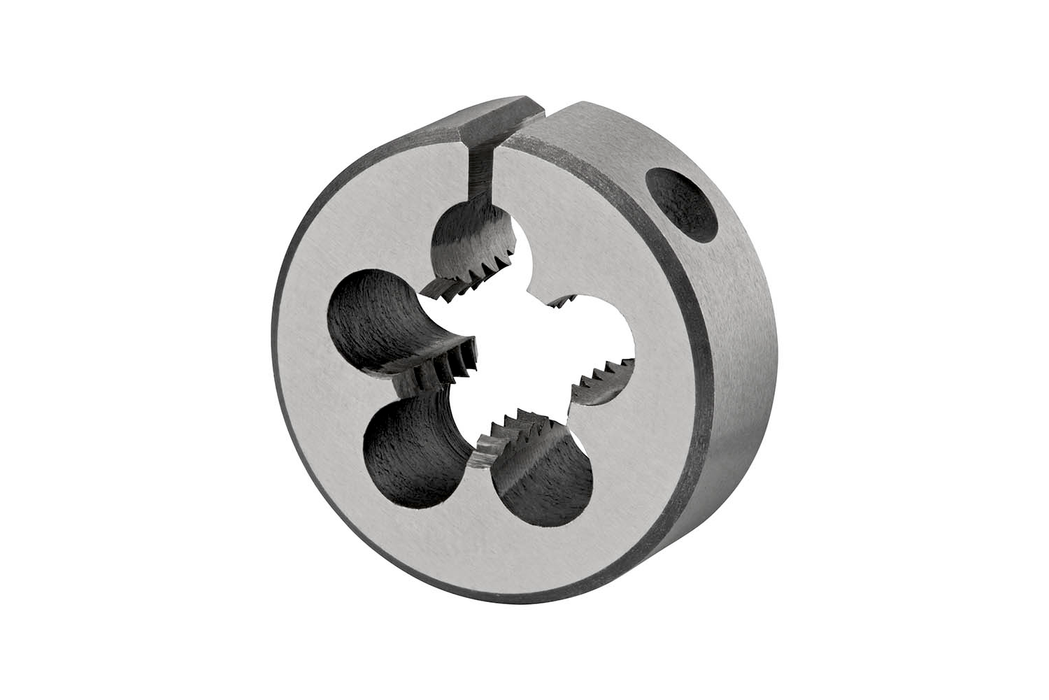

Adjustable circular split die, for British Standard Pipe thread G 1/4" with 19 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 1.5/16" outside diameter and 7/16" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$88.27 - $88.27
$88.27
$88.27 - $88.27
$88.27
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

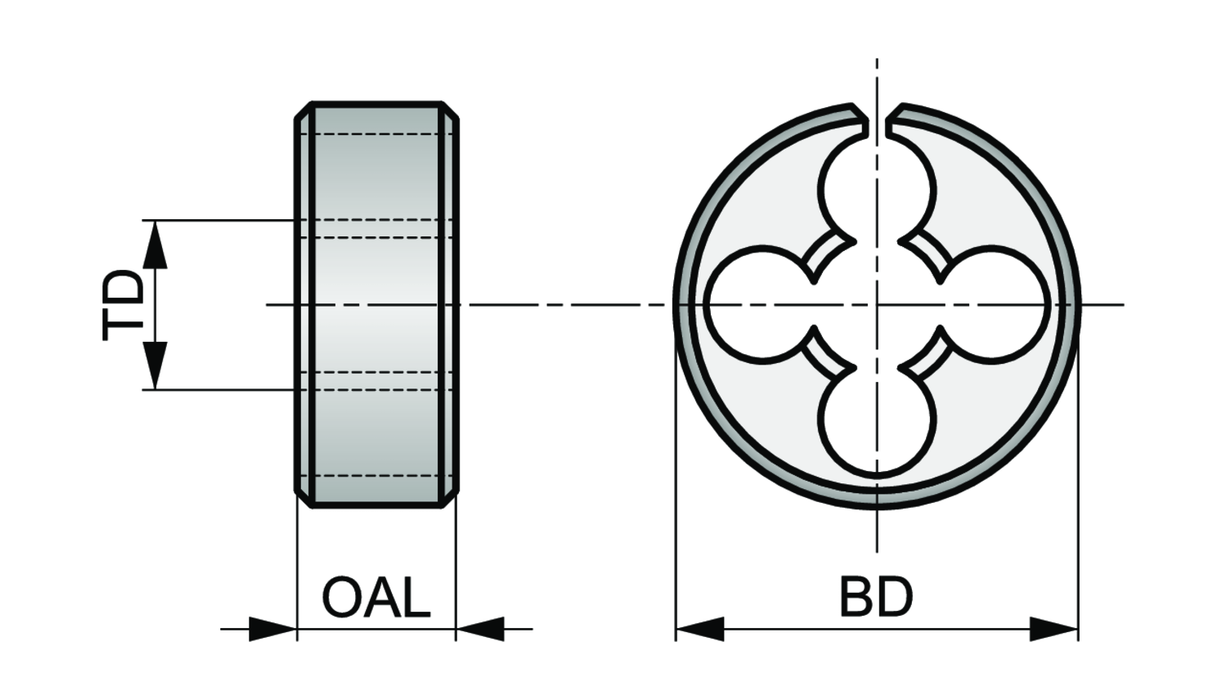

Material: HSS

Overall Length (OAL): 0.4375

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - mm: 13.16

TPI: 19.0

Thread Form: G - British standard pipe fastening - G series

Grade: Bright

EDP: 209332

EAN: 7320760209332

MFG Part Number: 5978451
