F302M22

F302M22

SKU DOR5978484
by Dormer Pramet
Primary Use:

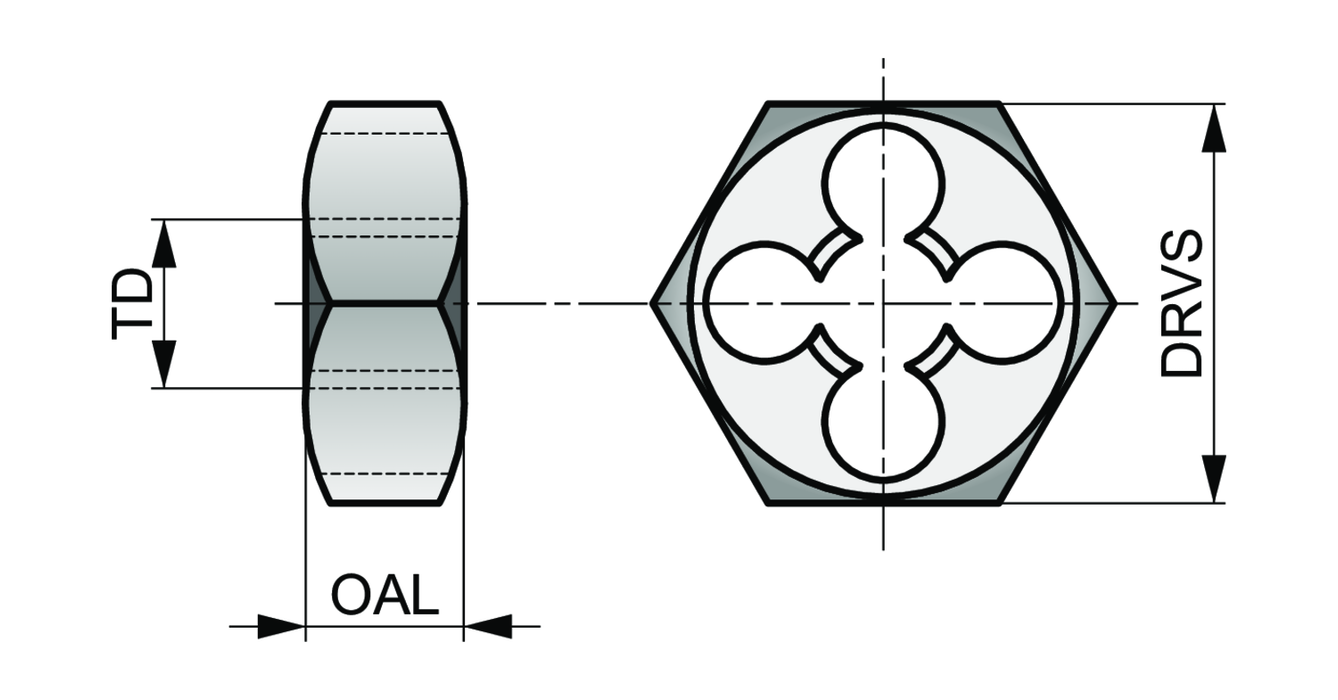

Hexagon die nut, for ISO-Metric thread M22 with 2.50 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.6700" width across flat and 13/16" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$221.47 - $221.47
$221.47
$221.47 - $221.47
$221.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Overall Length (OAL): 0.8125

Tool Direction: Right

Diameter Size: 22

Thread Diameter - mm: 22.0

Pitch - mm: 2.5

Thread Form: M - Metric coarse

Grade: Bright

EDP: 105597

EAN: 7320760105597

MFG Part Number: 5978484
