F108M8

F108M8

SKU DOR5978601
by Dormer Pramet
Primary Use: Possible Use:

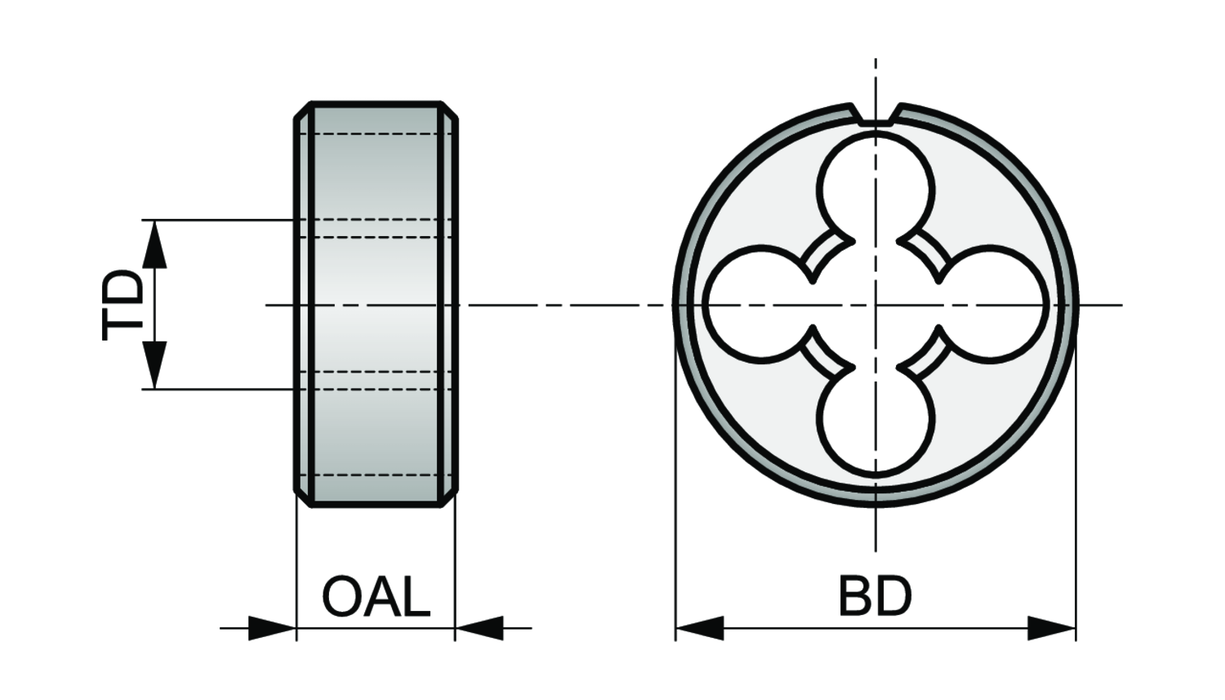

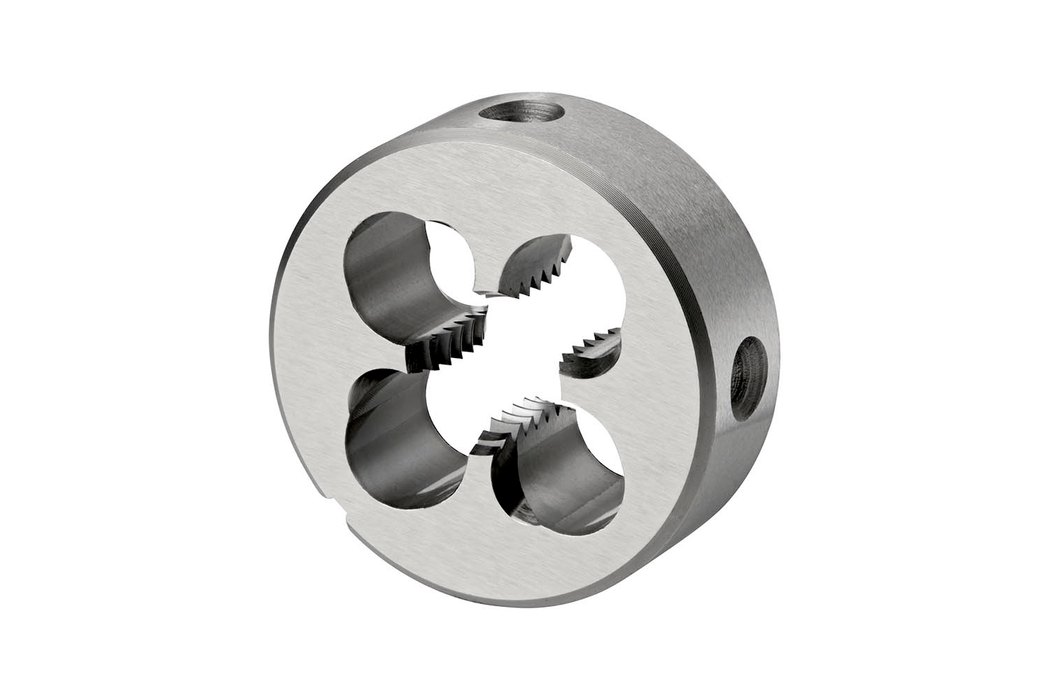

Solid round die with a gun nose, for ISO-Metric thread M8 with 1.25 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 25mm outside diameter and 9mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$78.23 - $78.23
$78.23
$78.23 - $78.23
$78.23
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Overall Length (OAL): 0.3543

Tool Direction: Right

Diameter Size: 8

Thread Diameter - mm: 8.0

Pitch - mm: 1.25

Thread Form: M - Metric coarse

Grade: Bright

EDP: 381335

EAN: 7320760381335

MFG Part Number: 5978601
