F202M3

F202M3

SKU DOR5978773
by Dormer Pramet
Primary Use:

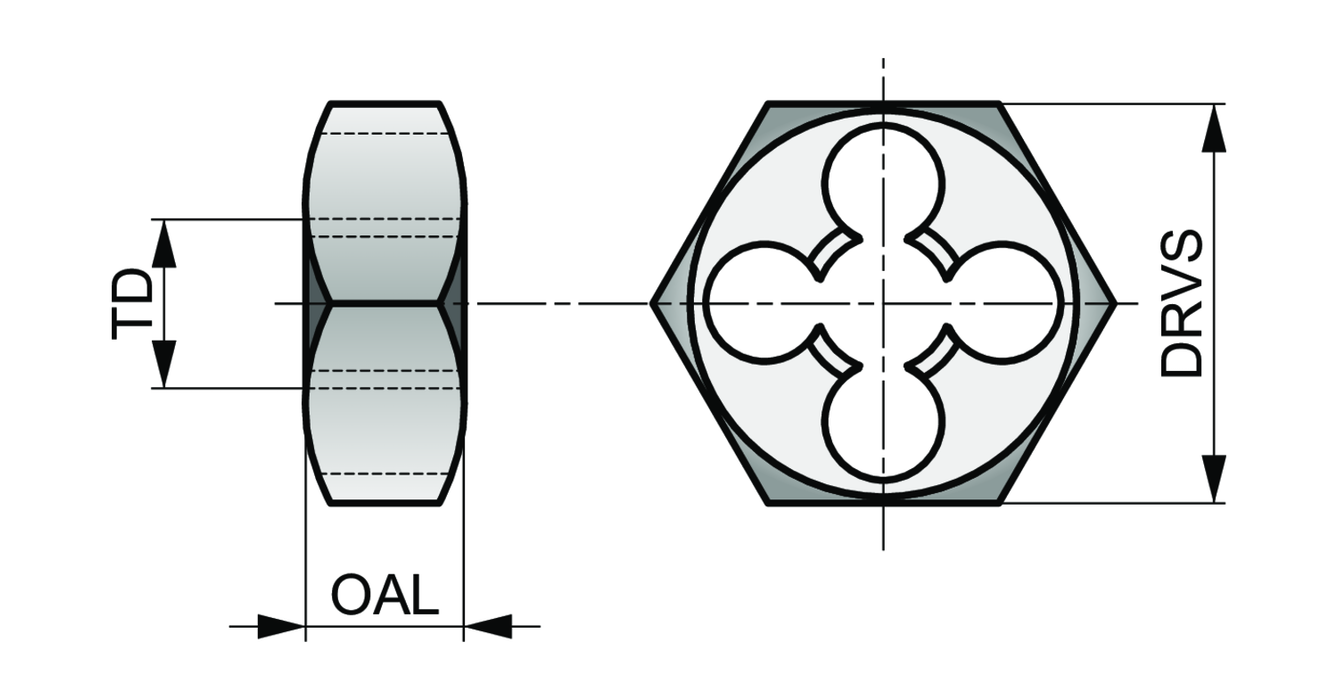

Hexagon die nut, for ISO-Metric thread M3 with 0.50 mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 19mm width across flat and 5mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$71.89 - $71.89
$71.89
$71.89 - $71.89
$71.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Overall Length (OAL): 0.1969

Tool Direction: Right

Diameter Size: 3

Thread Diameter - mm: 3.0

Pitch - mm: 0.5

Thread Form: M - Metric coarse

Grade: Bright

EDP: 217122

EAN: 7320760217122

MFG Part Number: 5978773
