R457N29

R457N29

SKU DOR5979338
by Dormer Pramet
Primary Use: Possible Use:

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1360" (N29) with an overall length of 62mm and flute length of 20mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$114.71 - $114.71
$114.71
$114.71 - $114.71
$114.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

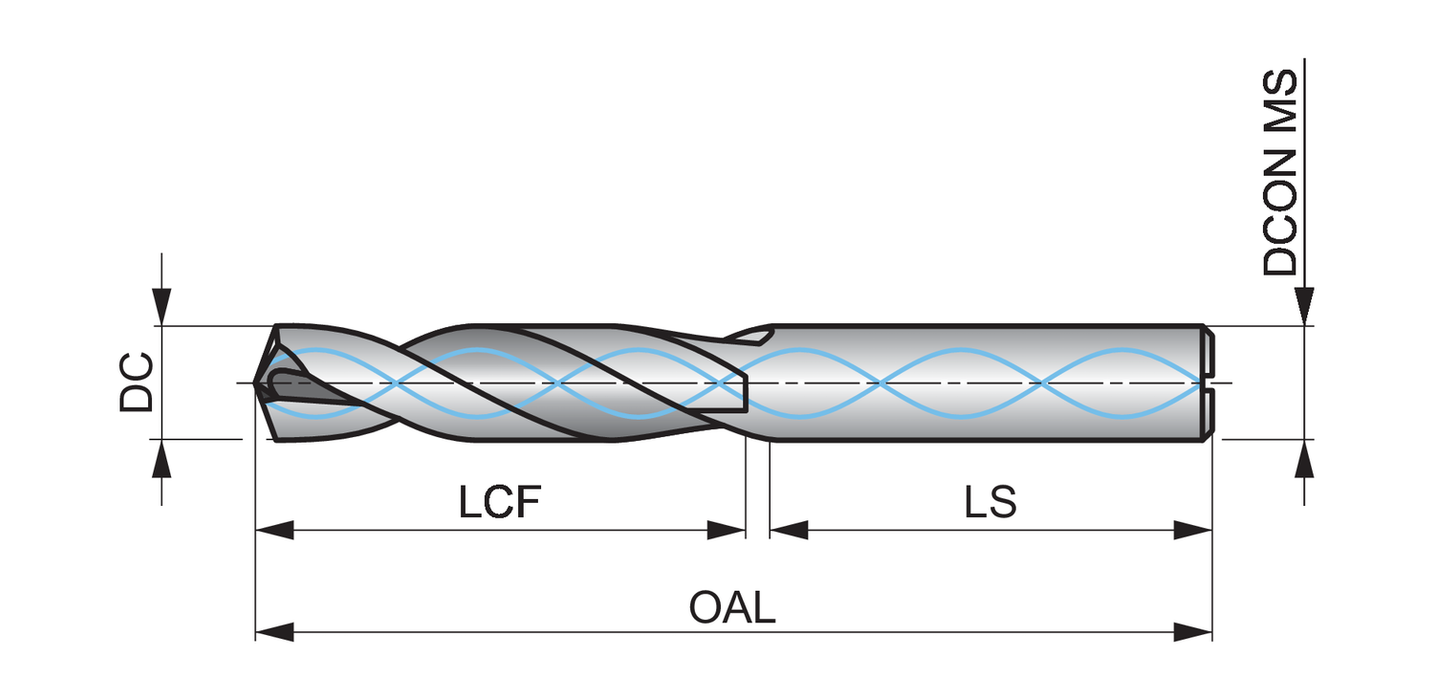

Material: HM

Cutting Diameter - in (DC): 0.136

Cutting Diameter - mm (DC): 3.45

Drill Point Angle - deg: 140

Flute Length: 0.7874

Through Coolant: 1

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.4409

Connetion Diameter: 0.2362

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 41840

EAN: 7320760041840

MFG Part Number: 5979338
