R45319.5

R45319.5

SKU DOR5979590
by Dormer Pramet
Primary Use: Possible Use:

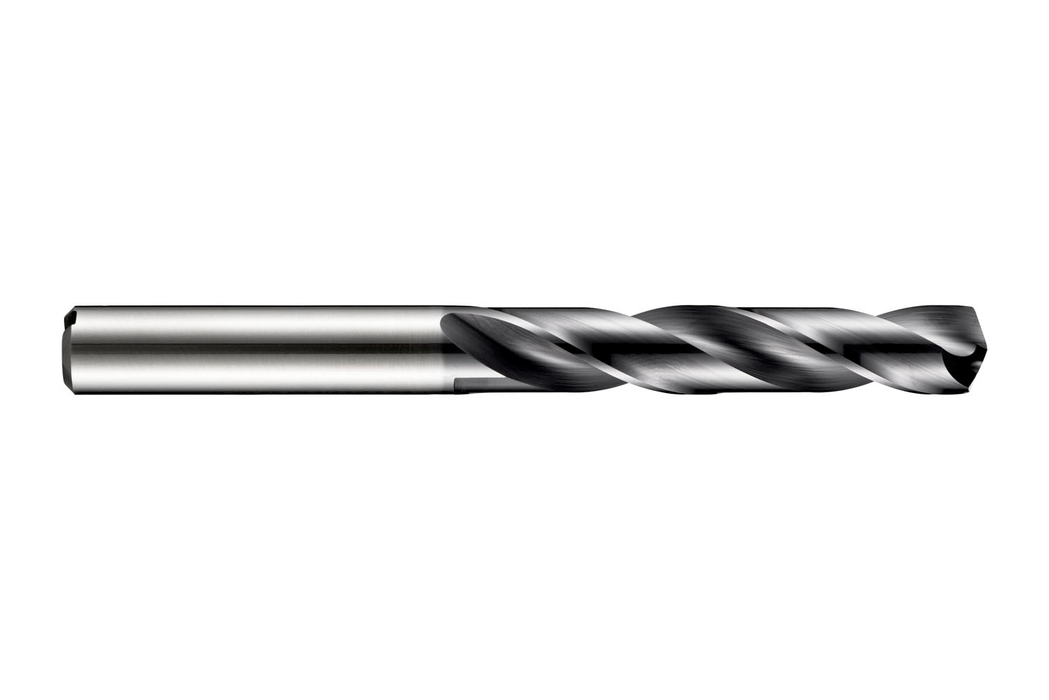

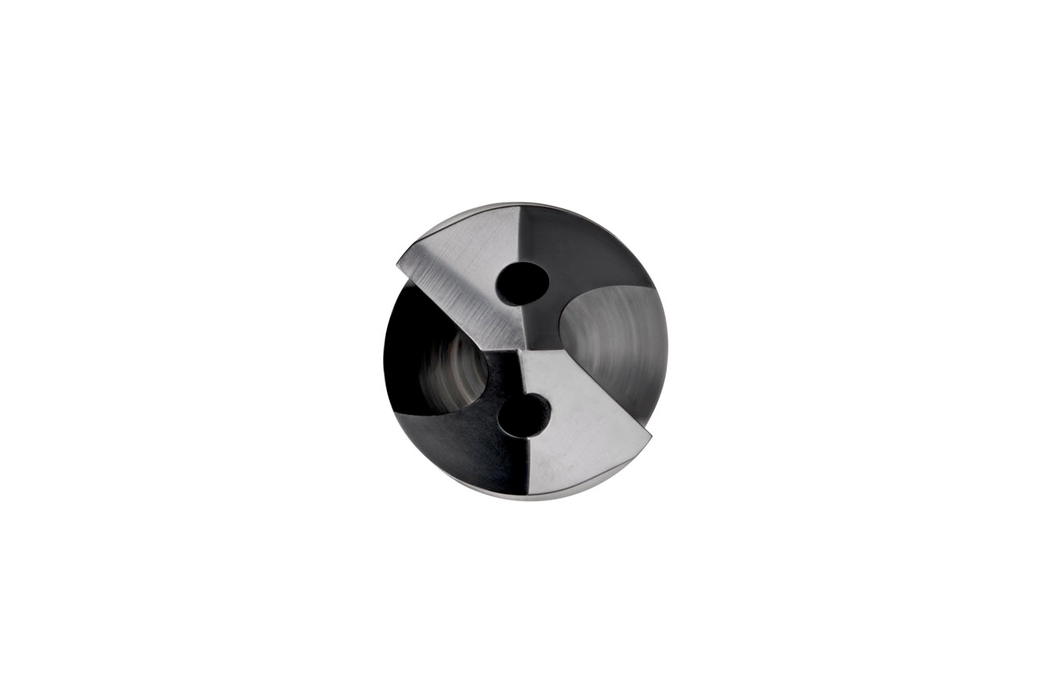

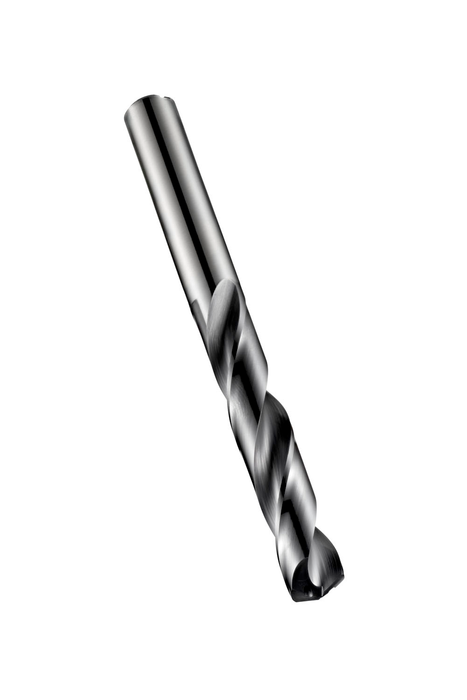

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 19.5mm with an overall length of 153mm and flute length of 99mm according to DIN 6537 L standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$883.14 - $883.14
$883.14
$883.14 - $883.14
$883.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

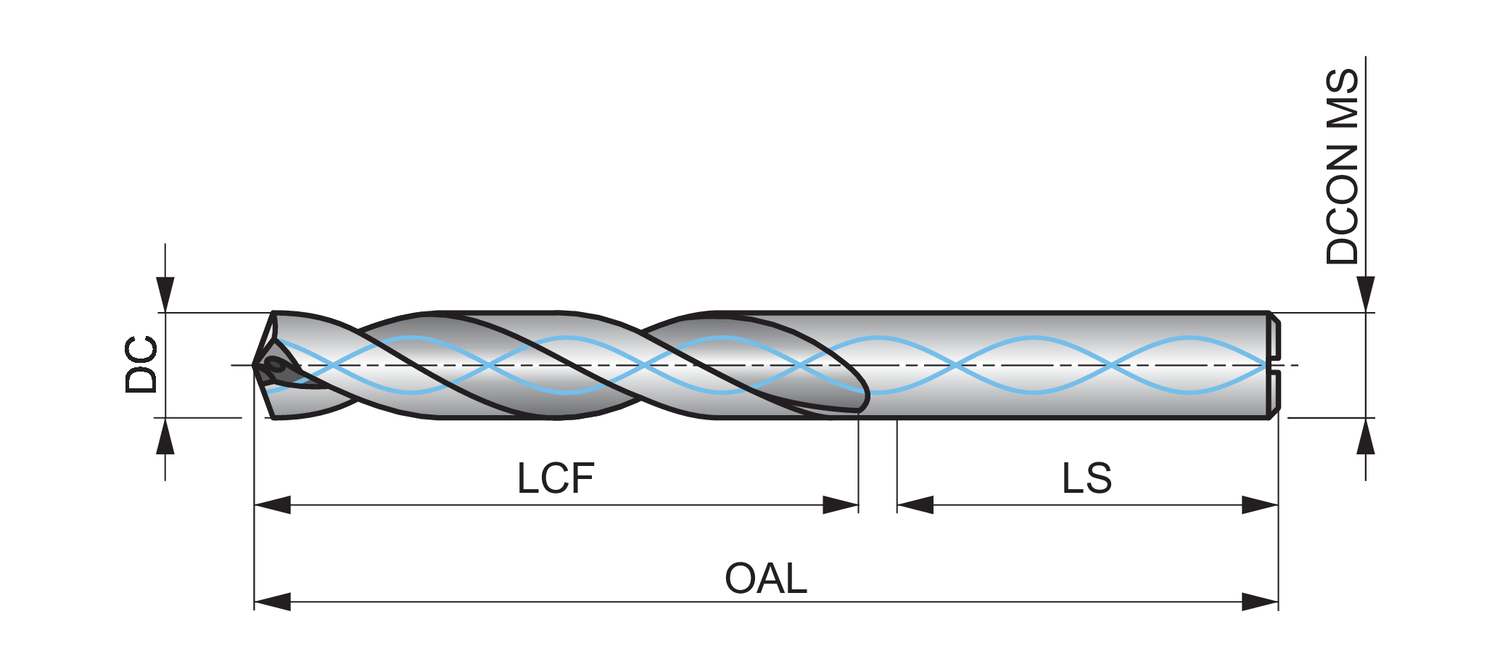

Material: HM

Cutting Diameter - in (DC): 0.7677

Cutting Diameter - mm (DC): 19.5

Drill Point Angle - deg: 140

Flute Length: 3.8976

Through Coolant: 1

Lenxth x Diameter Ratio: 5

Overall Length (OAL): 6.0236

Connetion Diameter: 0.7874

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 625361

EAN: 7320760625361

MFG Part Number: 5979590
