SKU DOR5979832
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$498.14 CAD - $498.14 CAD
$498.14 CAD
$498.14 CAD - $498.14 CAD
$498.14 CAD

Sold in packs of: 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R12320.0
GradeBright
Product Number5979832
Product FamilyR123

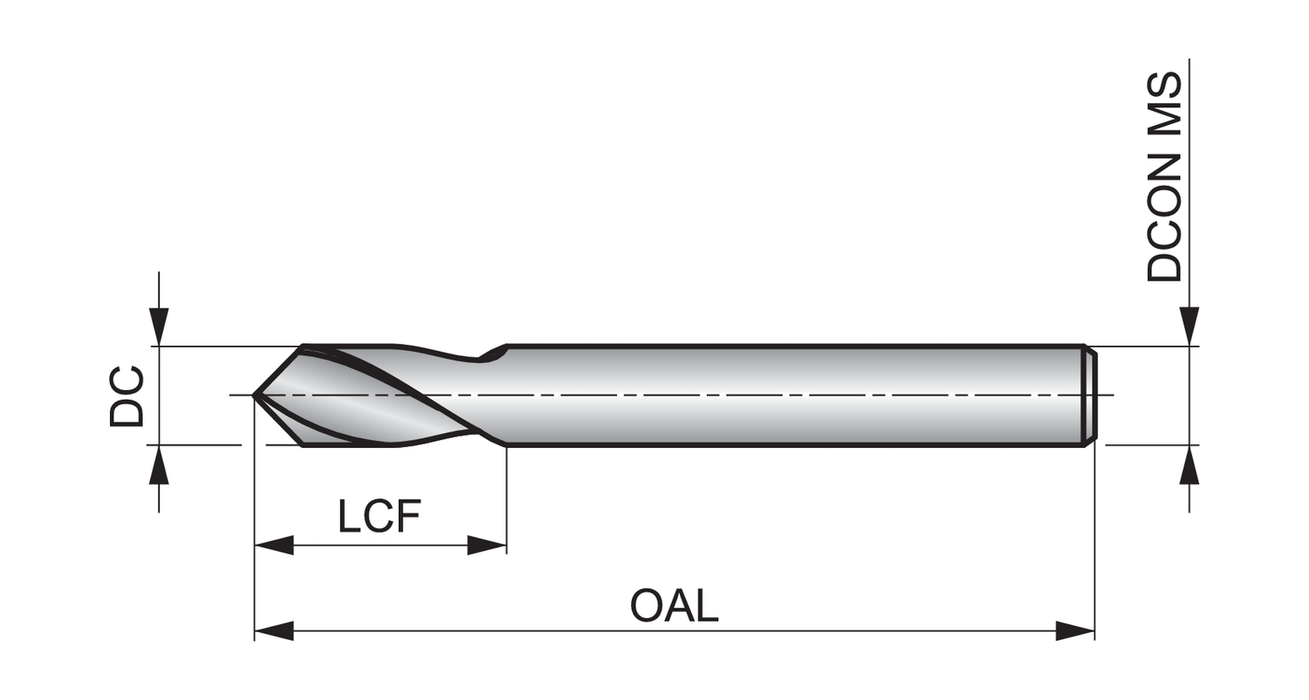

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)1.5748"
Flute Length — mm (LCF)40.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)90°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number114735
EAN7320760114735
File Type Download
R12320.0 — 3D Model STP Download
R12320.0 — Line Drawing PDF Download
