R4575/32

R4575/32

SKU DOR5980298
by Dormer Pramet
Primary Use: Possible Use:

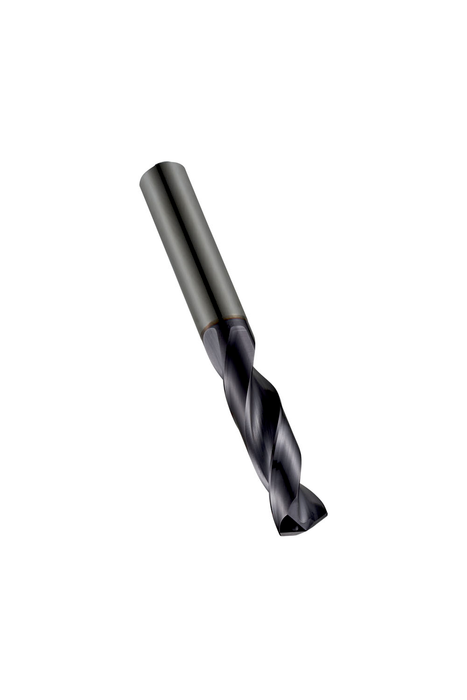

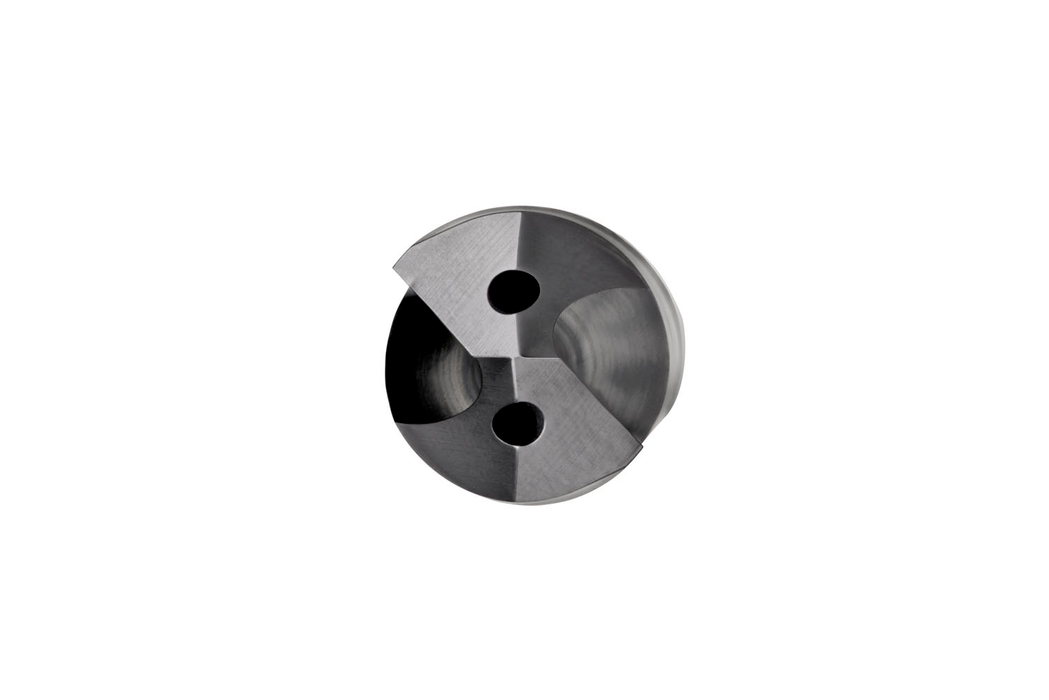

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 0.1563" (5/32) with an overall length of 66mm and flute length of 24mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material, super-alloy and hardened material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$114.71 - $114.71
$114.71
$114.71 - $114.71
$114.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

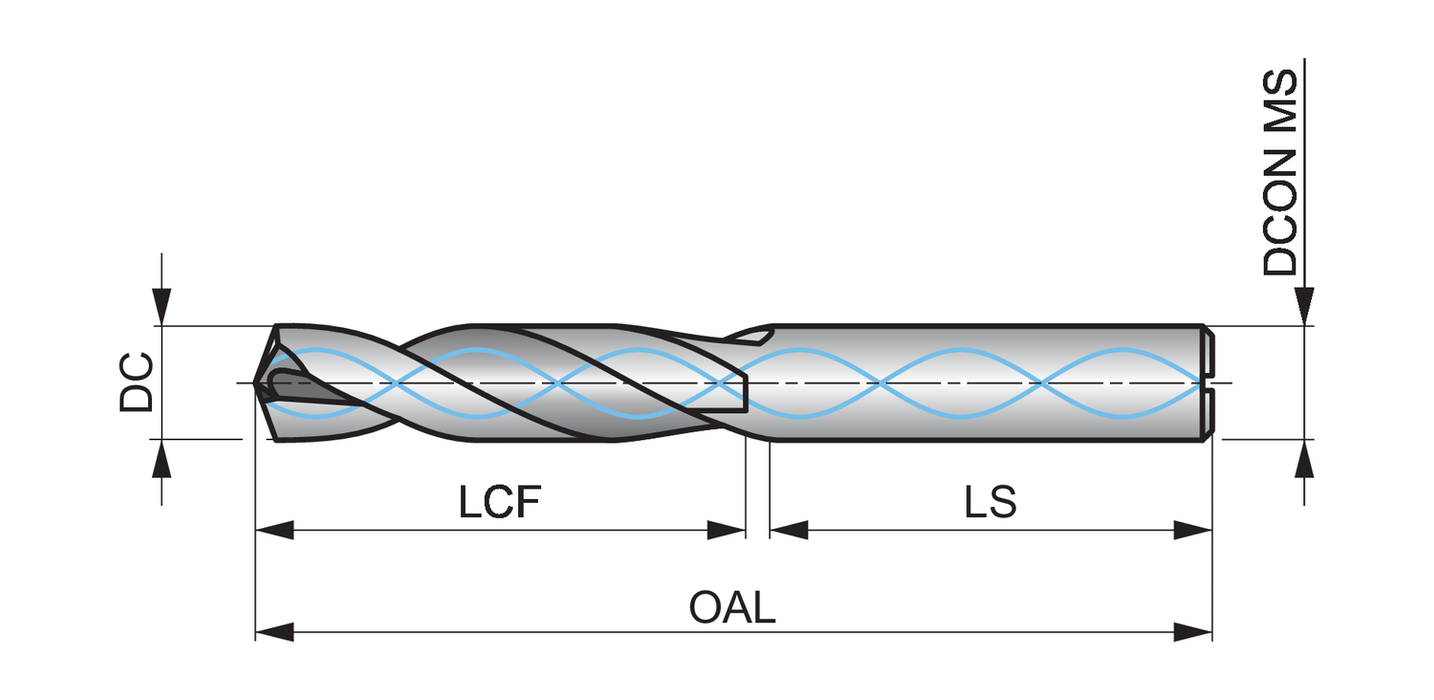

Material: HM

Cutting Diameter - in (DC): 0.1563

Cutting Diameter - mm (DC): 3.97

Drill Point Angle - deg: 140

Flute Length: 0.9449

Through Coolant: 1

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.5984

Connetion Diameter: 0.2362

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Fractional: 5/32

Grade: TiAlN

EDP: 624753

EAN: 7320760624753

MFG Part Number: 5980298
