R45814.25

R45814.25

SKU DOR5980462
by Dormer Pramet
Primary Use: Possible Use:

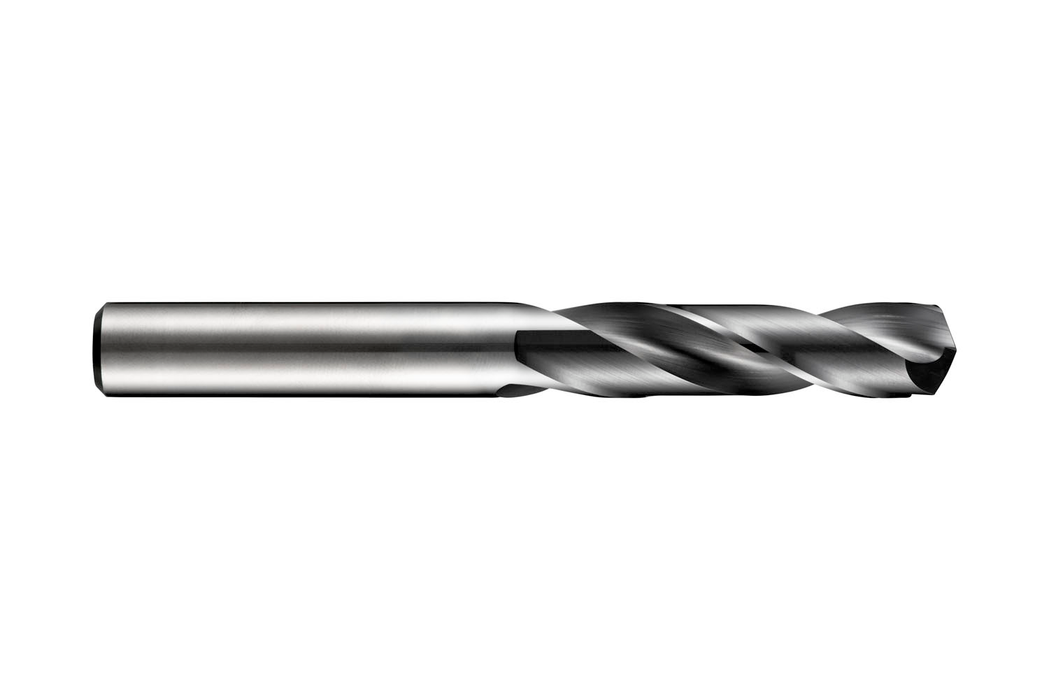

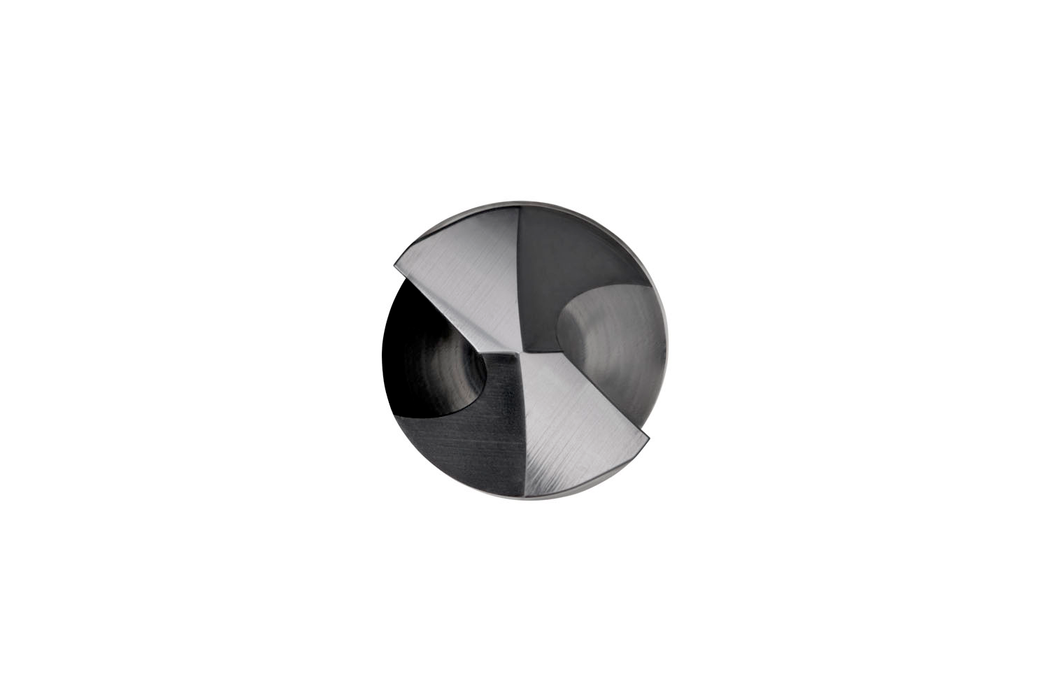

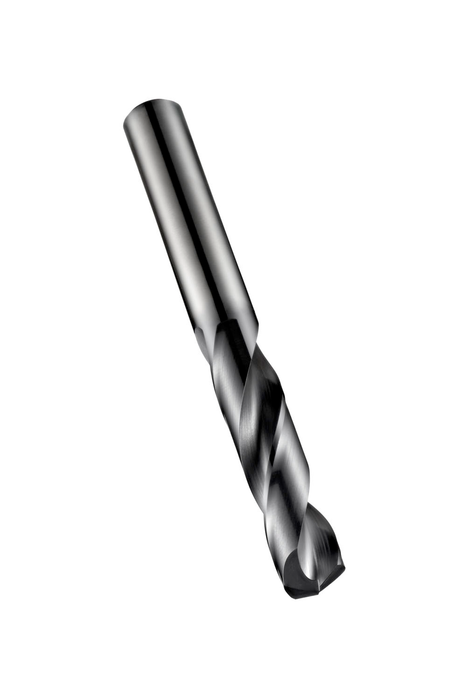

High-performance FORCE X drill with DIN 6535HA NC parallel shank, diameter 14.25mm with an overall length of 115mm and flute length of 65mm according to DIN 6537 K standard with 140° modified 4-facet split point, solid carbide with TiAlN coating and continiously thinned parallel web for 3xD drilling without pecking in steel, stainless steel, cast iron, non-ferrous material and hardened material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$323.71 - $323.71
$323.71
$323.71 - $323.71
$323.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

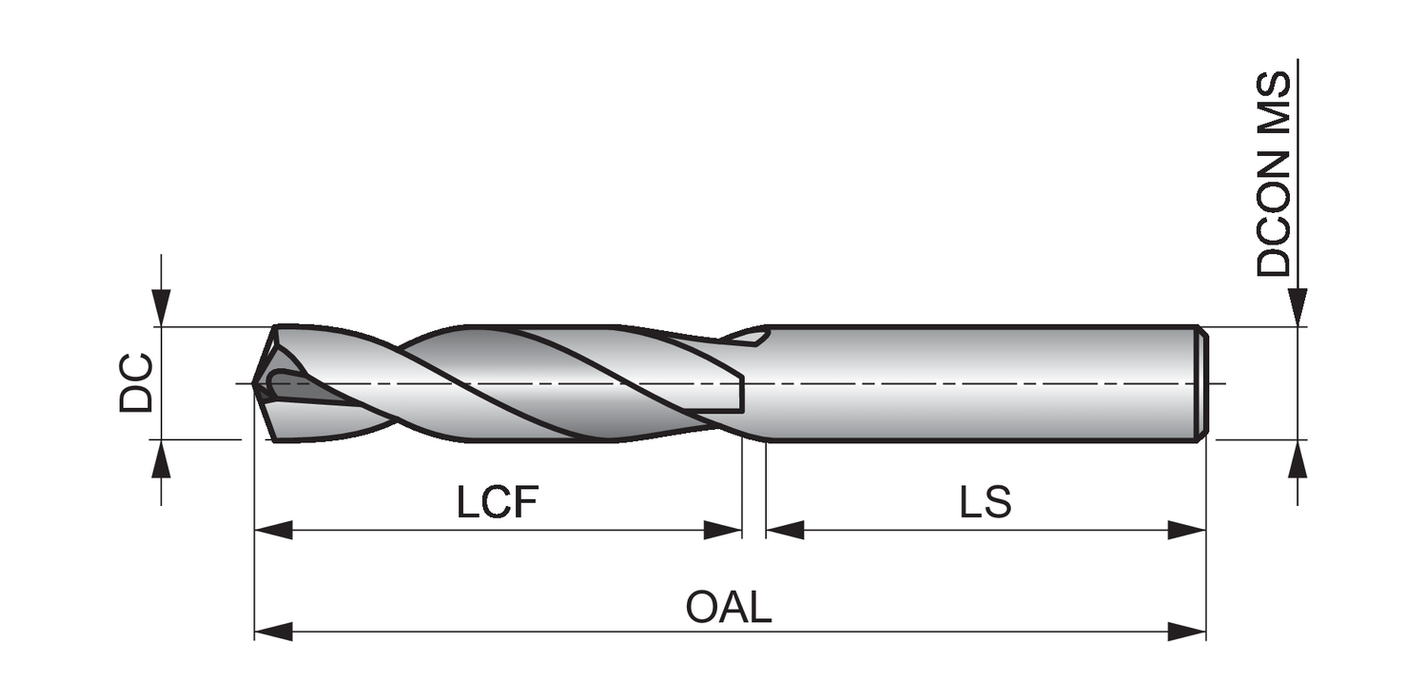

Cutting Diameter - in (DC): 0.561

Cutting Diameter - mm (DC): 14.25

Drill Point Angle - deg: 140

Flute Length: 2.5591

Through Coolant: 0

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 4.5276

Connetion Diameter: 0.6299

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 615270

EAN: 7320760615270

MFG Part Number: 5980462
