R5104.1

R5104.1

SKU DOR5980540
by Dormer Pramet
Primary Use: Possible Use:

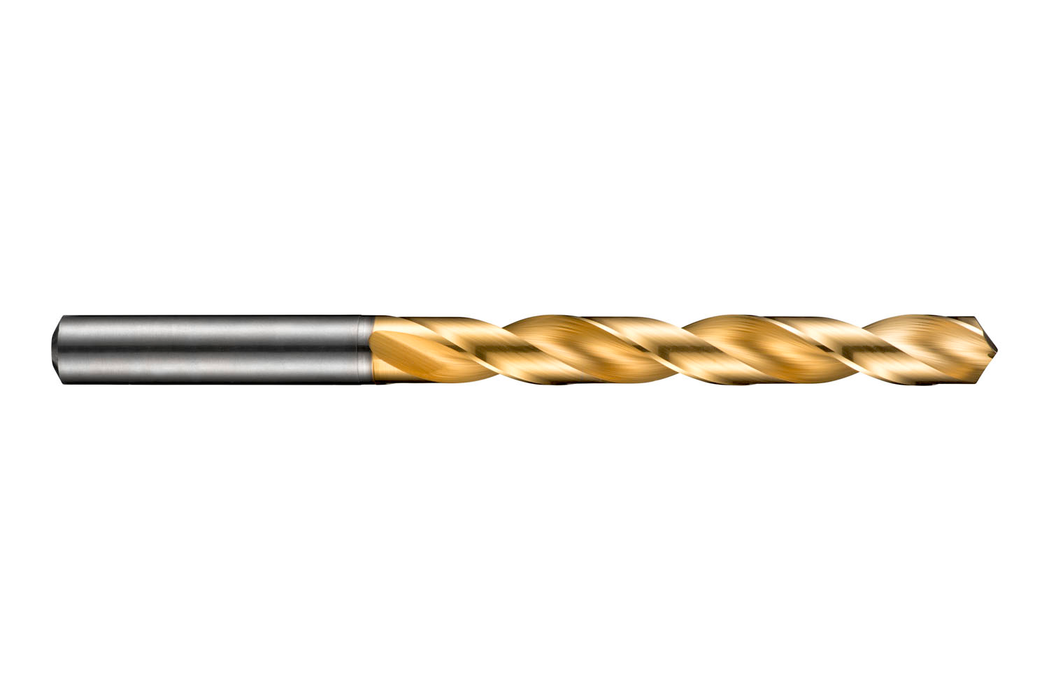

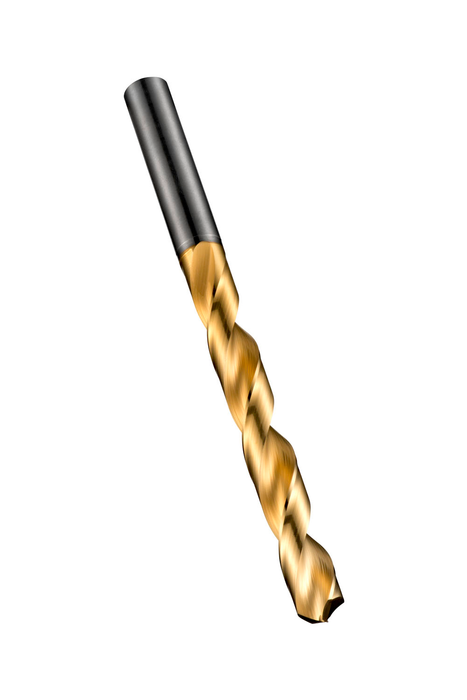

High-performance CDX drill with straight shank, diameter 4.1mm with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$110.00 - $110.00
$110.00
$110.00 - $110.00
$110.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

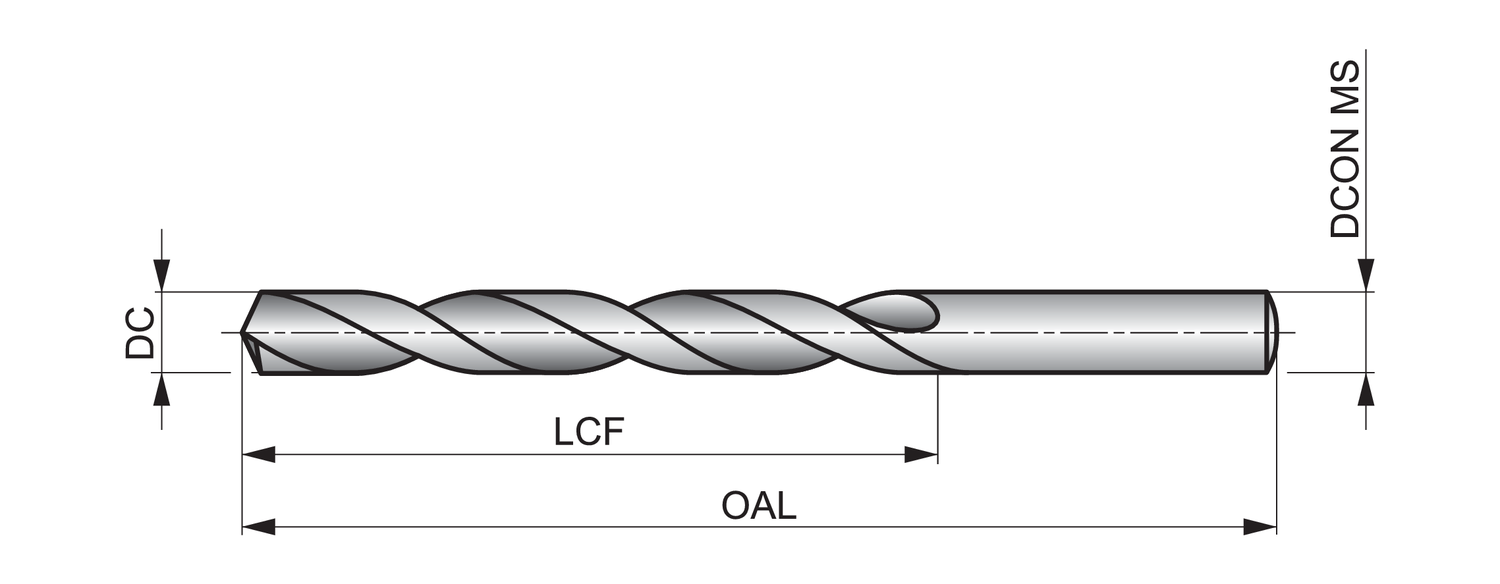

Cutting Diameter - in (DC): 0.1614

Cutting Diameter - mm (DC): 4.1

Drill Point Angle - deg: 130

Flute Length: 1.6929

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.9528

Connetion Diameter: 0.1614

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 115701

EAN: 7320760115701

MFG Part Number: 5980540
