R5104.5

R5104.5

SKU DOR5980548
by Dormer Pramet
Primary Use: Possible Use:

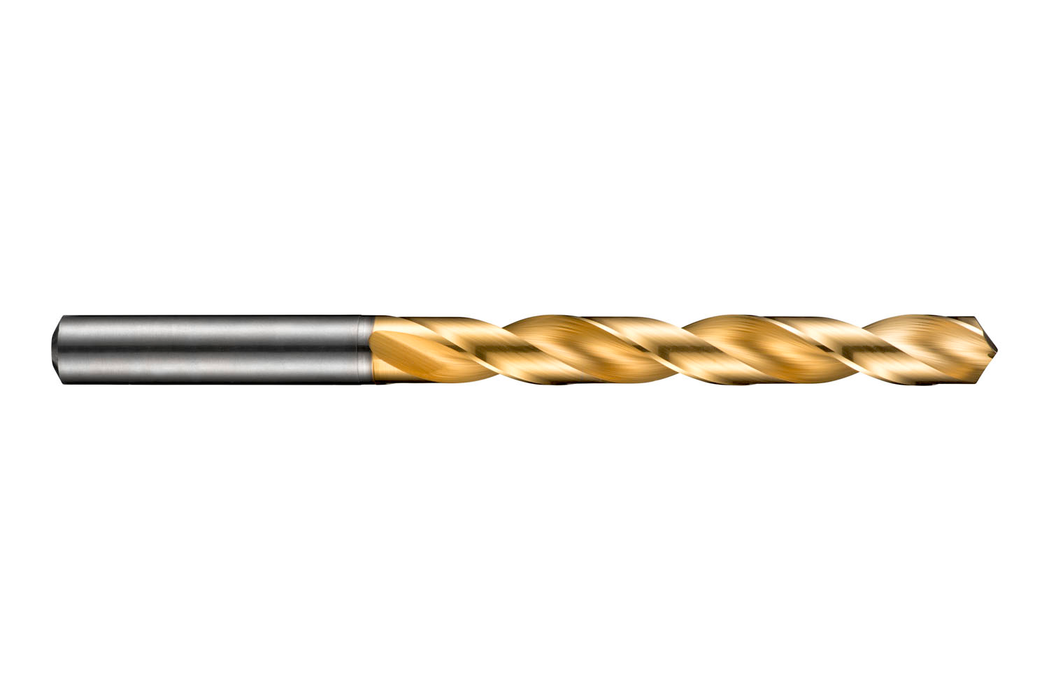

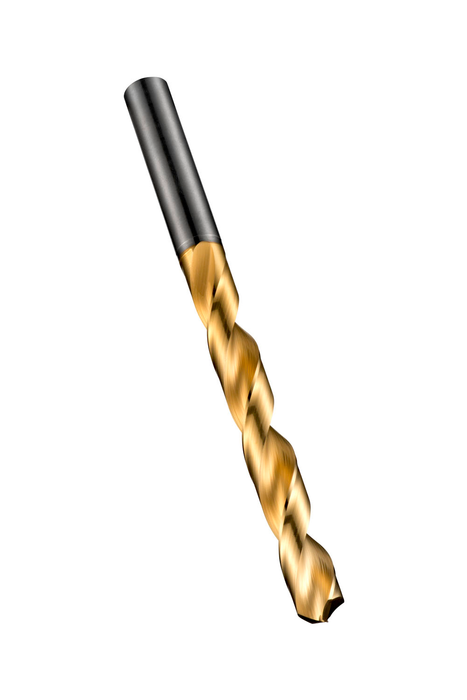

High-performance CDX drill with straight shank, diameter 4.5mm with an overall length of 80mm and flute length of 47mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$110.00 - $110.00
$110.00
$110.00 - $110.00
$110.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

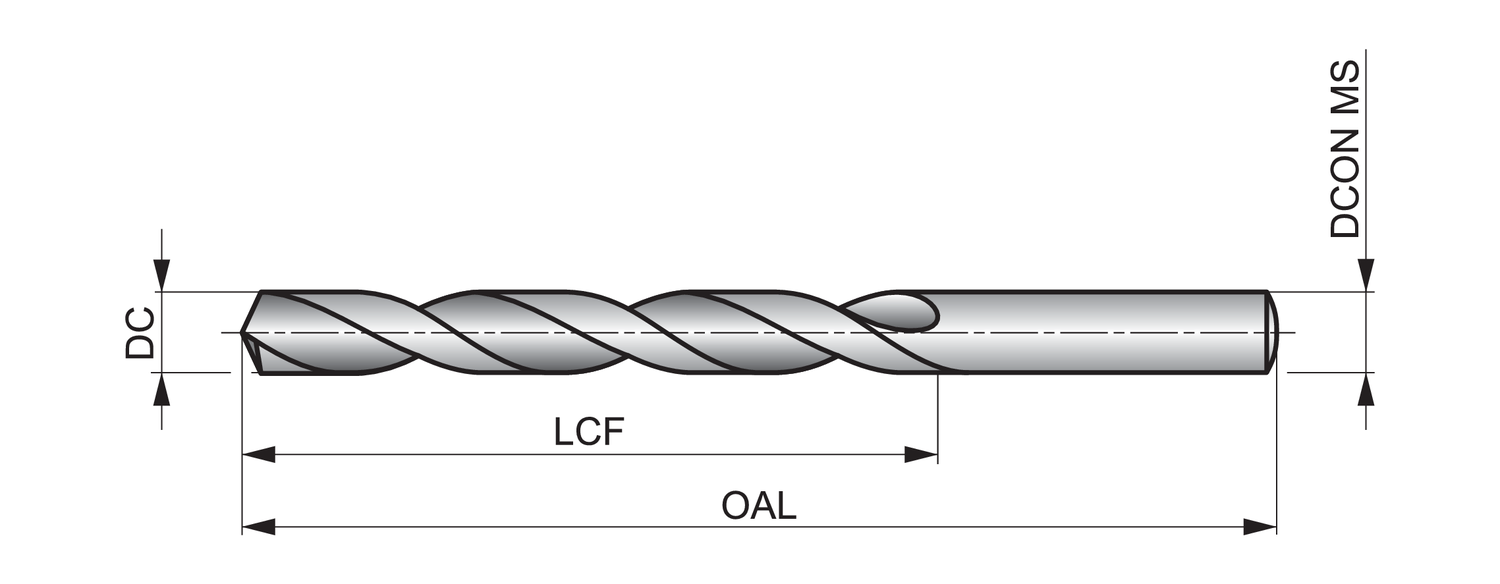

Material: HM

Cutting Diameter - in (DC): 0.1772

Cutting Diameter - mm (DC): 4.5

Drill Point Angle - deg: 130

Flute Length: 1.8504

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.1496

Connetion Diameter: 0.1772

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 115732

EAN: 7320760115732

MFG Part Number: 5980548
