R5104.9
R5104.9
R5104.9
R5104.9

R5104.9

SKU DOR5980559
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$146.14 CAD - $146.14 CAD
$146.14 CAD
$146.14 CAD - $146.14 CAD
$146.14 CAD

Sold in packs of: 1

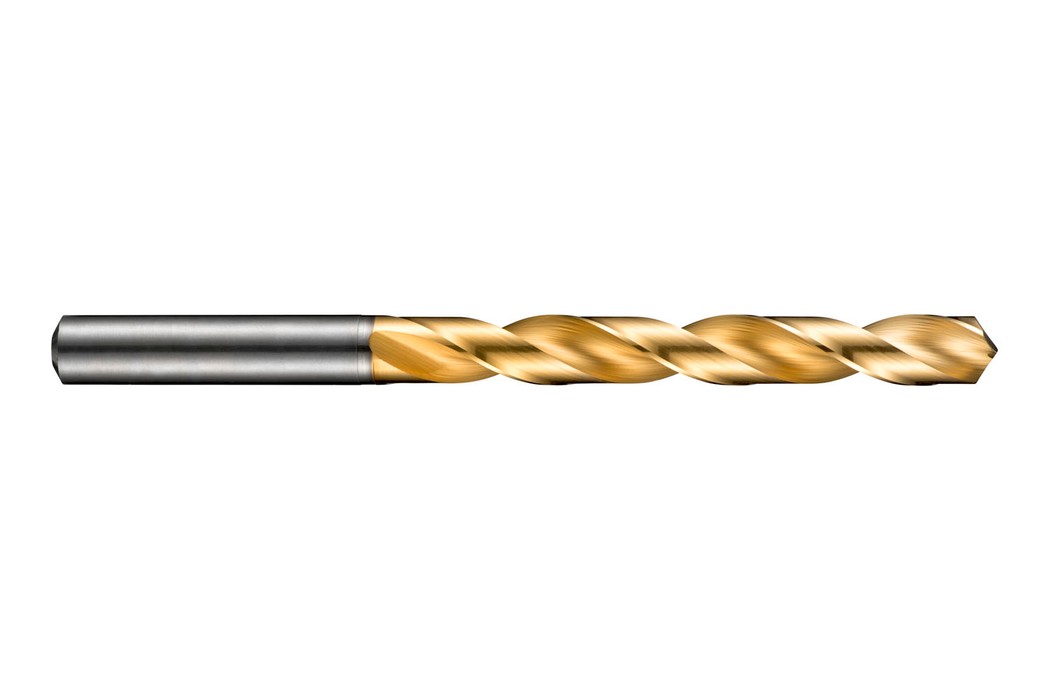

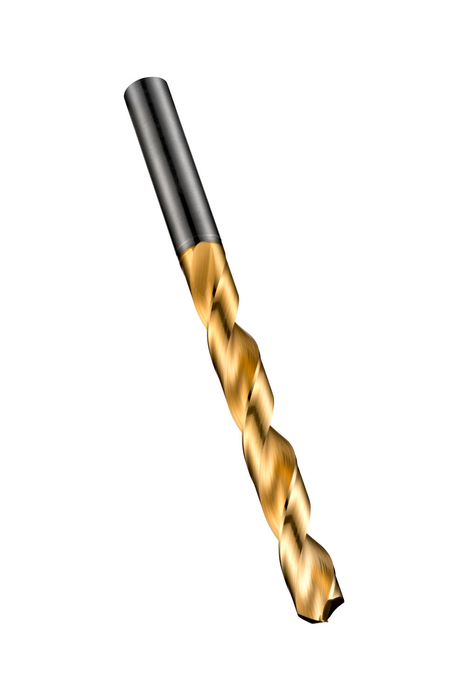

High-performance CDX drill with straight shank, diameter 4.9mm with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R5104.9
GradeTiN
Product Number5980559
Product FamilyR510

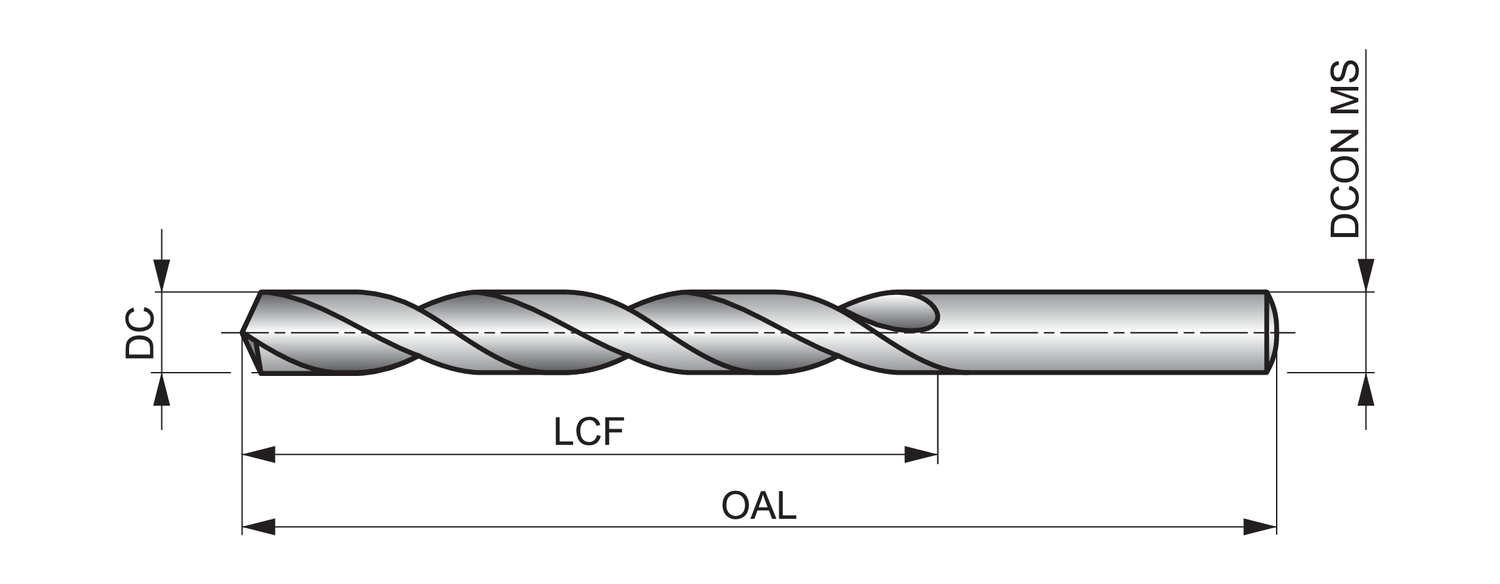

Dimensions
Cutting Diameter — in (DC)0.1929"
Cutting Diameter — mm (DC)4.9 mm
Overall Length — in (OAL)3.3858"
Overall Length — mm (OAL)86.0 mm
Flute Length — in (LCF)2.0472"
Flute Length — mm (LCF)52.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1929"
Connection Dia. — mm (DCON)4.9 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 338
Reference Numbers
EDP Number115749
EAN7320760115749
File Type Download
R5104.9 — 3D Model STP Download
R5104.9 — Line Drawing PDF Download
