R5105.1

R5105.1

SKU DOR5980565
by Dormer Pramet
Primary Use: Possible Use:

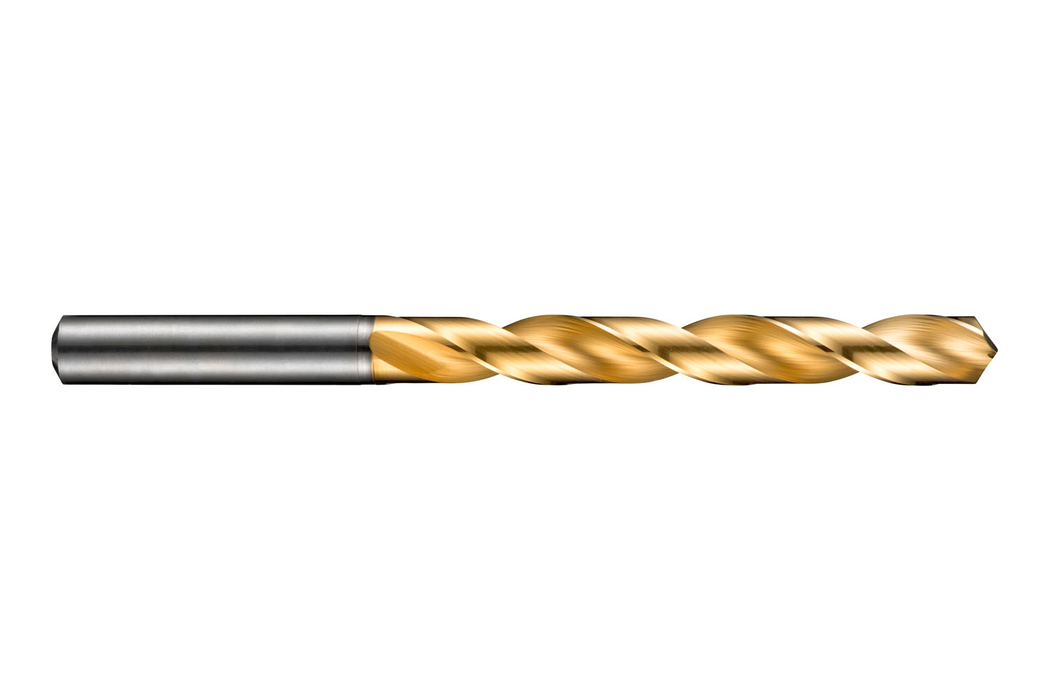

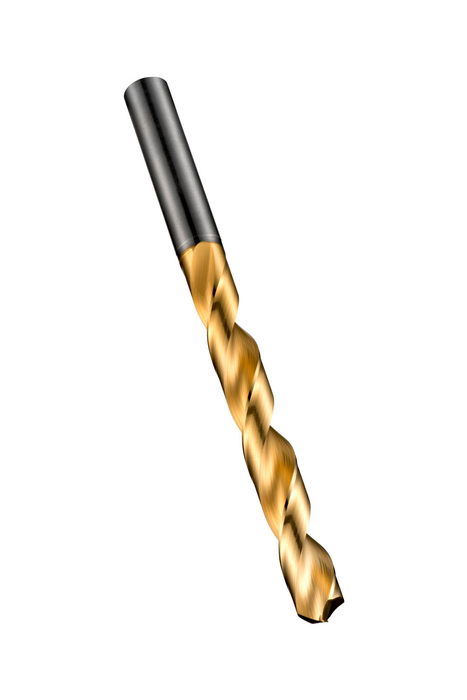

High-performance CDX drill with straight shank, diameter 5.1mm with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 130° 4-facet volute point, solid carbide with TiN coating for 4xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$129.64 - $129.64
$129.64
$129.64 - $129.64
$129.64
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

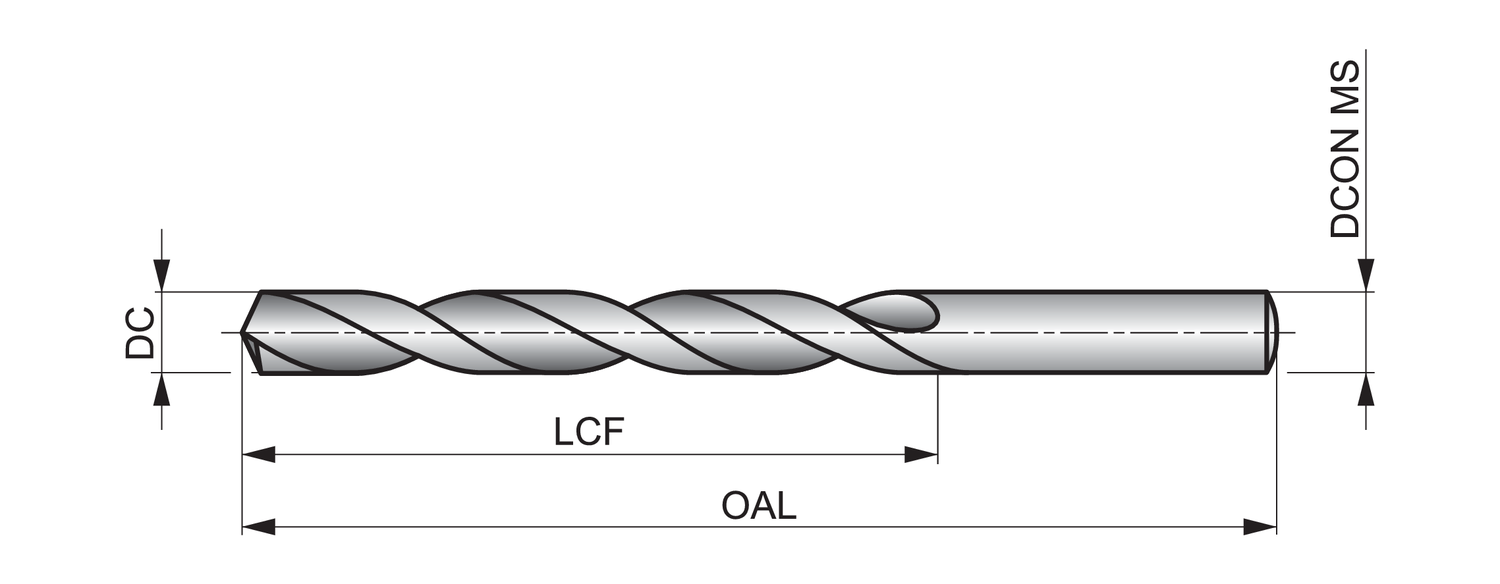

Cutting Diameter - in (DC): 0.2008

Cutting Diameter - mm (DC): 5.1

Drill Point Angle - deg: 130

Flute Length: 2.0472

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.3858

Connetion Diameter: 0.2008

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 115763

EAN: 7320760115763

MFG Part Number: 5980565
