R5203.5

R5203.5

SKU DOR5981167
by Dormer Pramet
Primary Use: Possible Use:

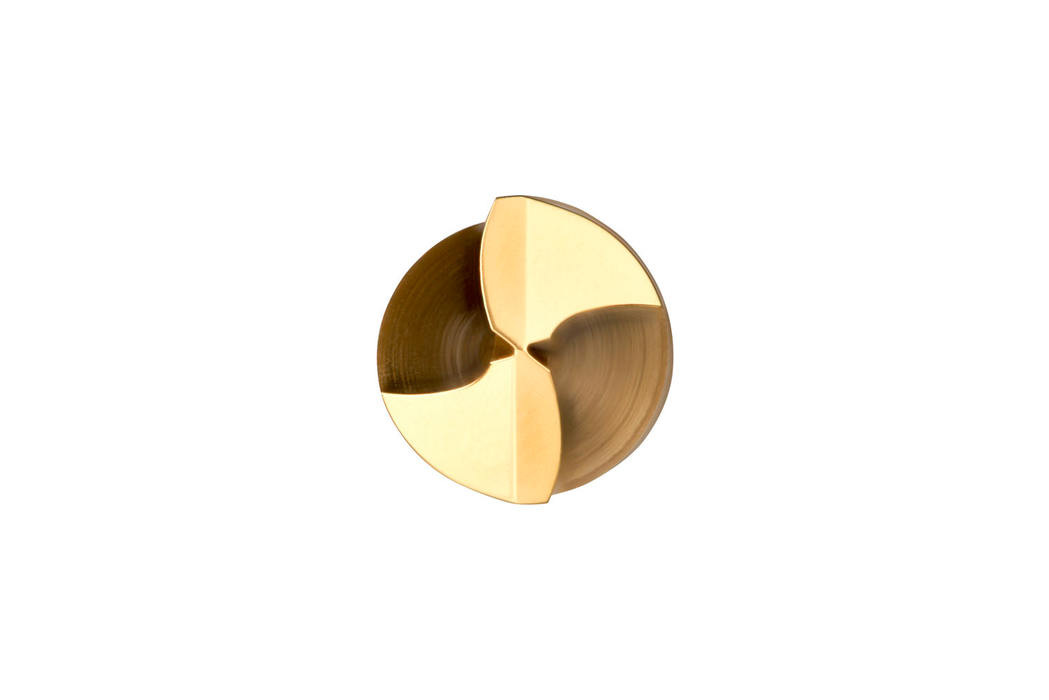

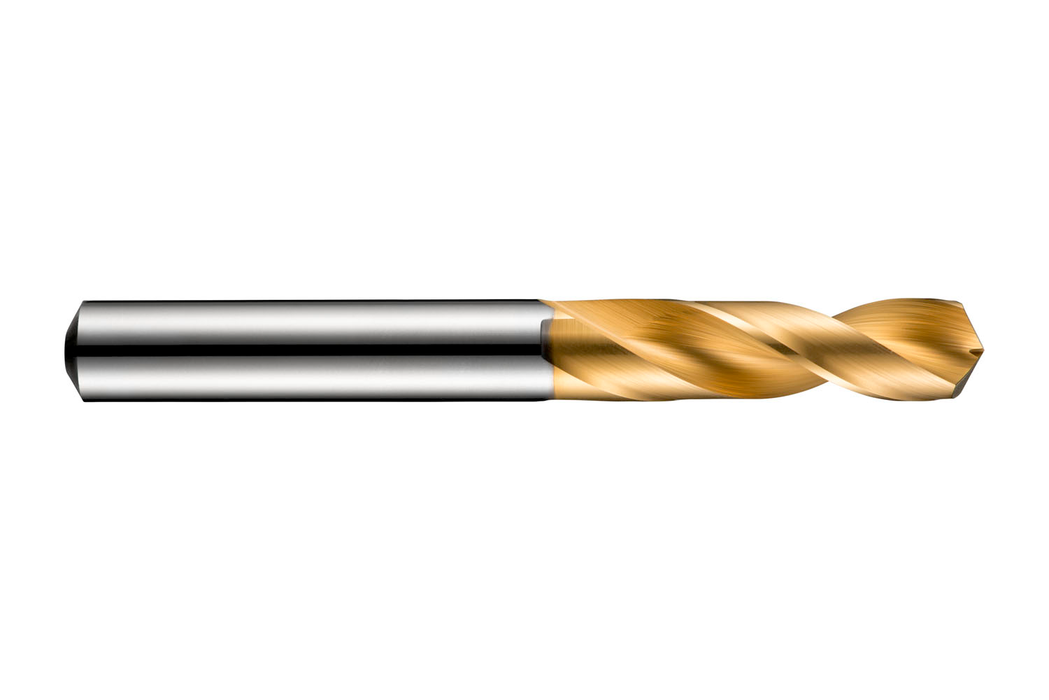

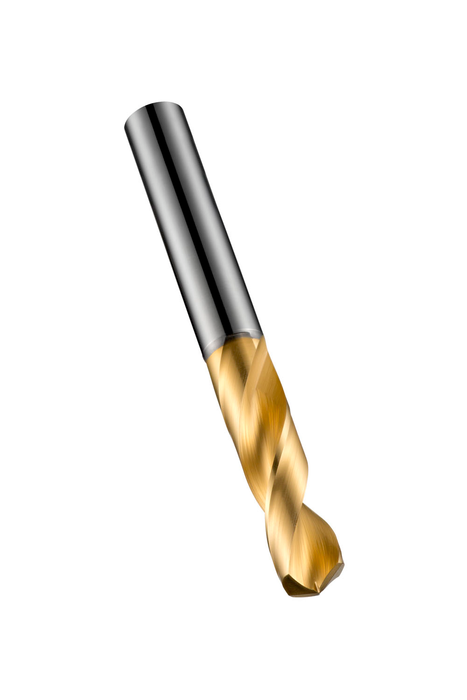

High-performance CDX drill with straight shank, diameter 3.5mm with an overall length of 52mm and flute length of 20mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$70.09 - $70.09
$70.09
$70.09 - $70.09
$70.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

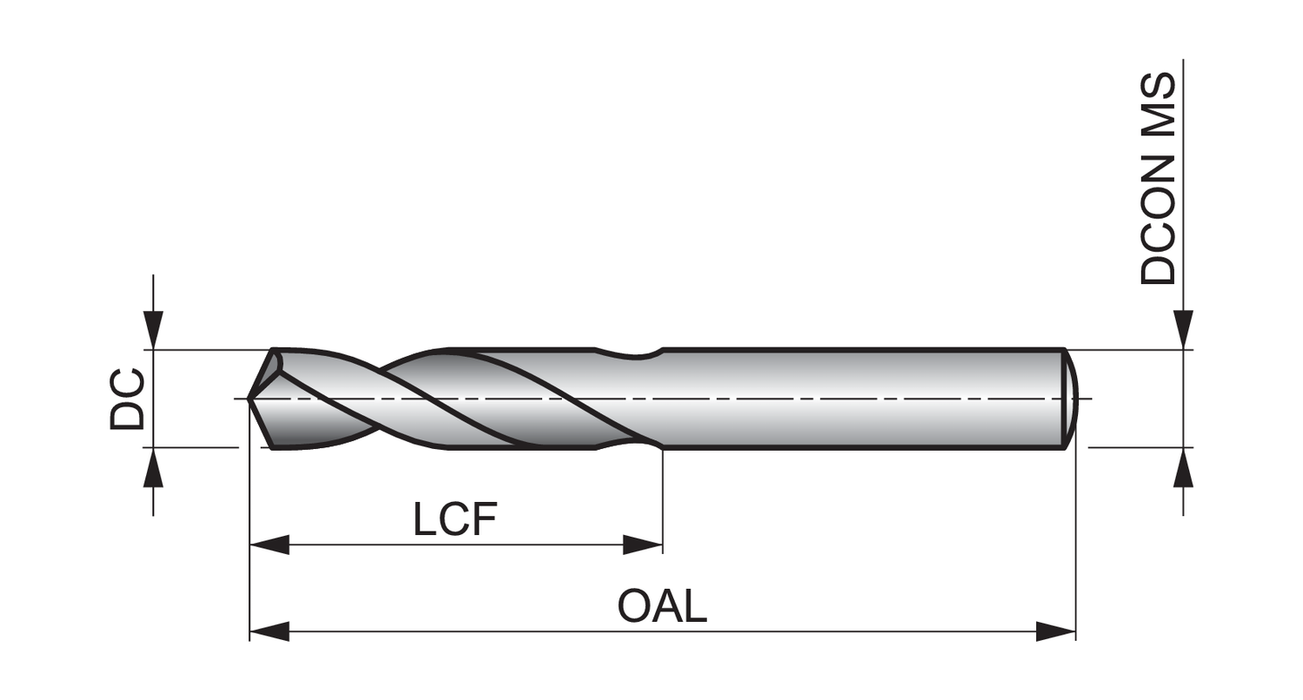

Cutting Diameter - in (DC): 0.1378

Cutting Diameter - mm (DC): 3.5

Drill Point Angle - deg: 130

Flute Length: 0.7874

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.0472

Connetion Diameter: 0.1378

Tool Direction: Right

Shank: Cylindrical shank

Grade: TiN

EDP: 116111

EAN: 7320760116111

MFG Part Number: 5981167
