R5203/8

R5203/8

SKU DOR5981189
by Dormer Pramet
Primary Use: Possible Use:

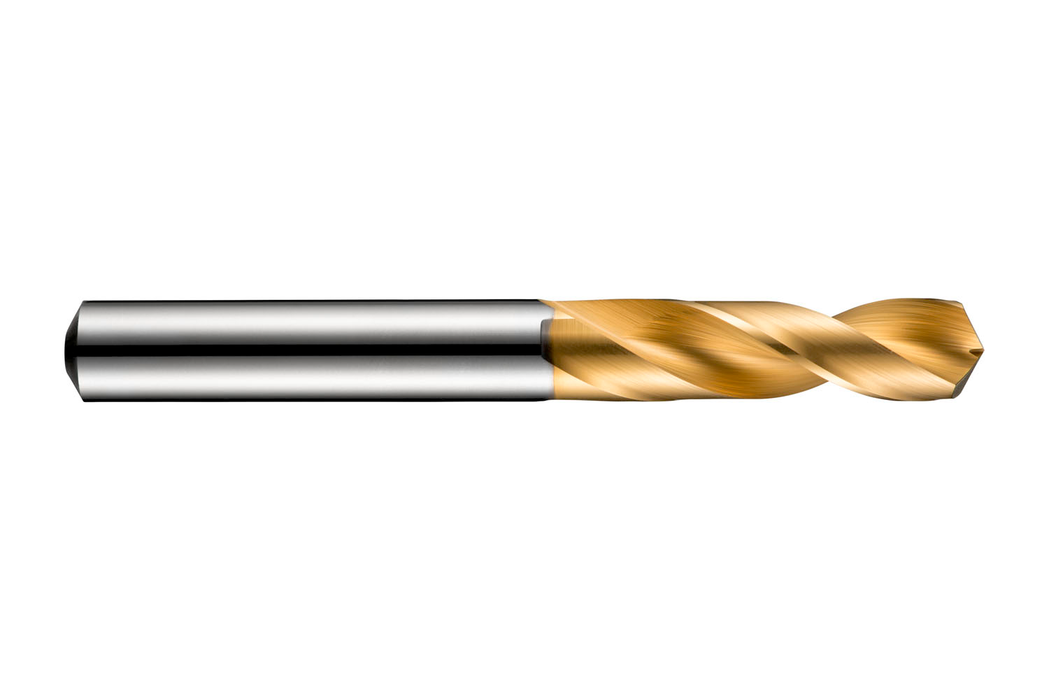

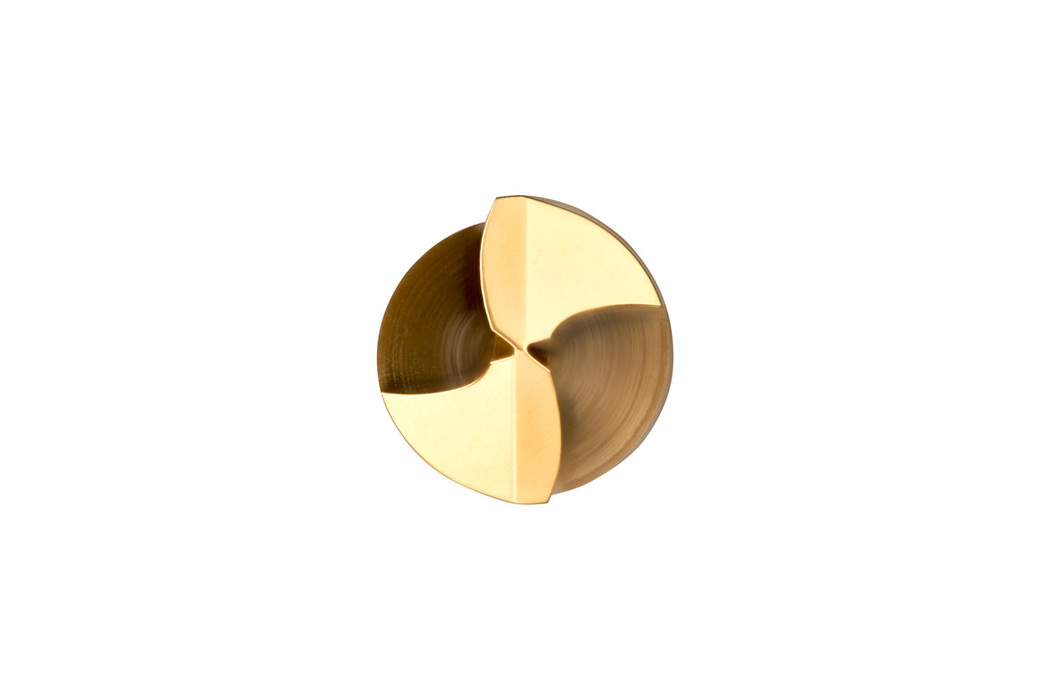

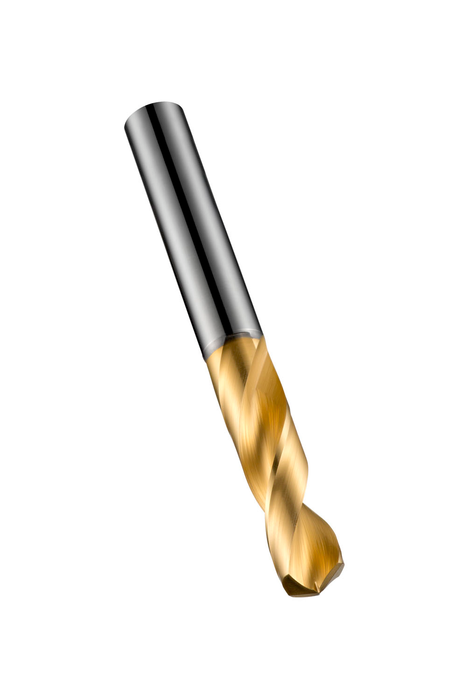

High-performance CDX drill with straight shank, diameter 0.3748" (3/8) with an overall length of 89mm and flute length of 43mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$146.14 - $146.14
$146.14
$146.14 - $146.14
$146.14
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

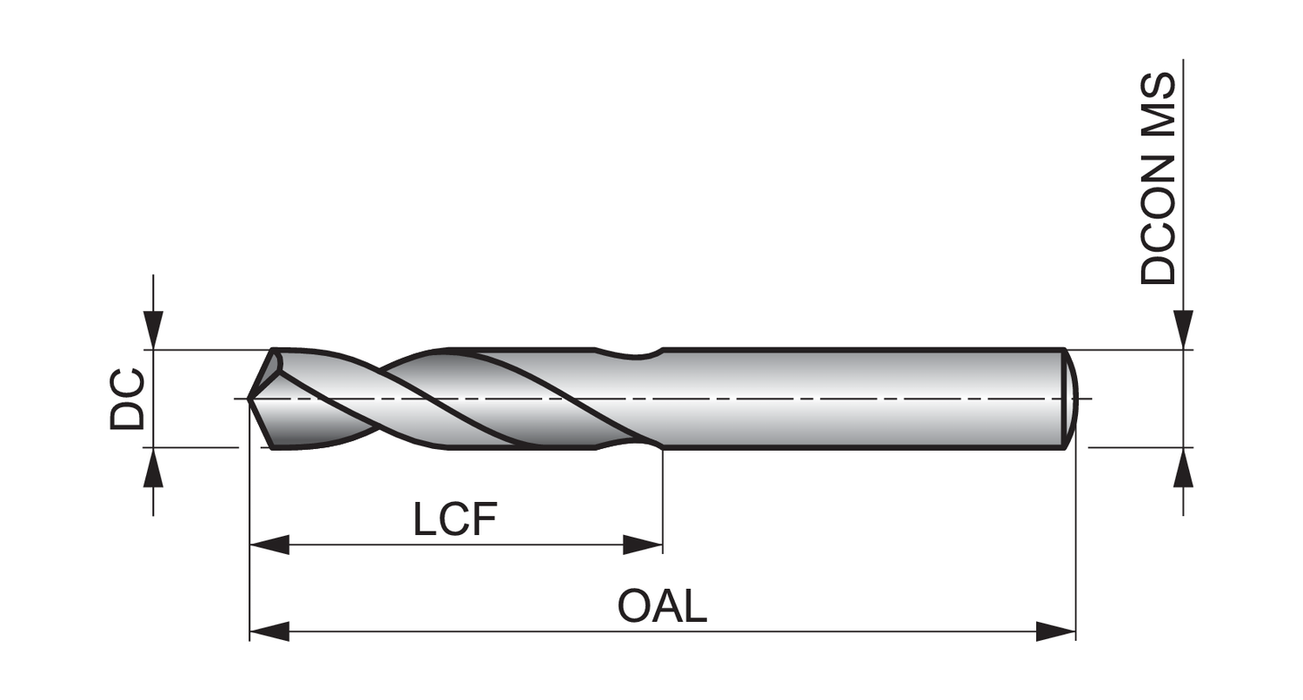

Material: HM

Cutting Diameter - in (DC): 0.3748

Cutting Diameter - mm (DC): 9.52

Drill Point Angle - deg: 130

Flute Length: 1.6929

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.5039

Connetion Diameter: 0.3748

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/8

Grade: TiN

EDP: 210826

EAN: 7320760210826

MFG Part Number: 5981189
