SKU DOR5982575
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.61 CAD - $131.61 CAD
$131.61 CAD
$131.61 CAD - $131.61 CAD
$131.61 CAD

Sold in packs of: 1

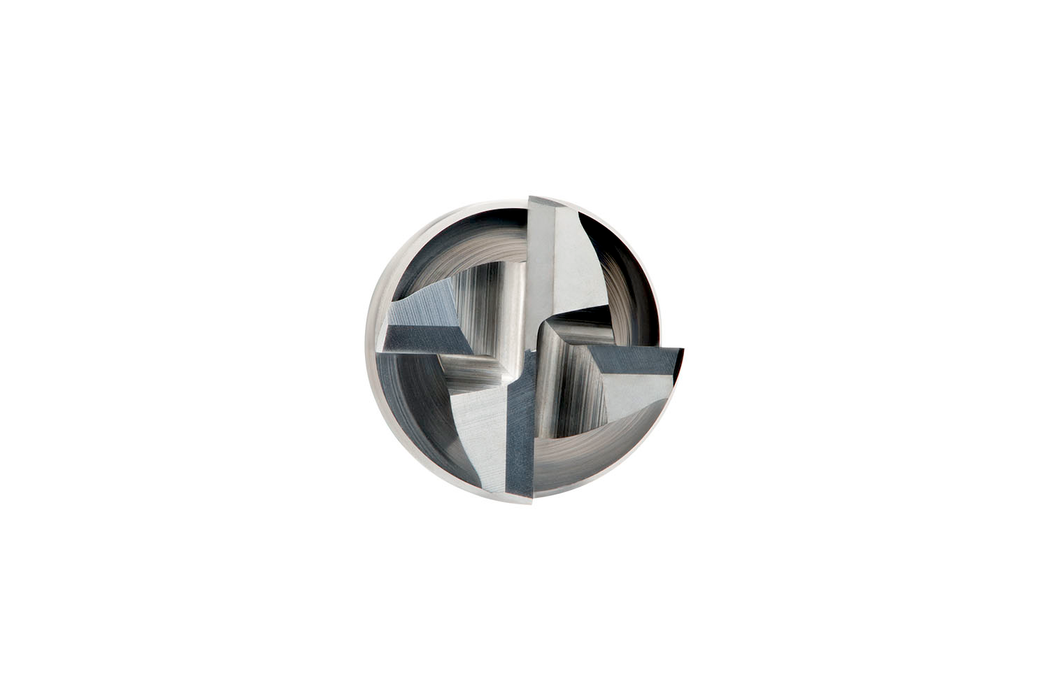

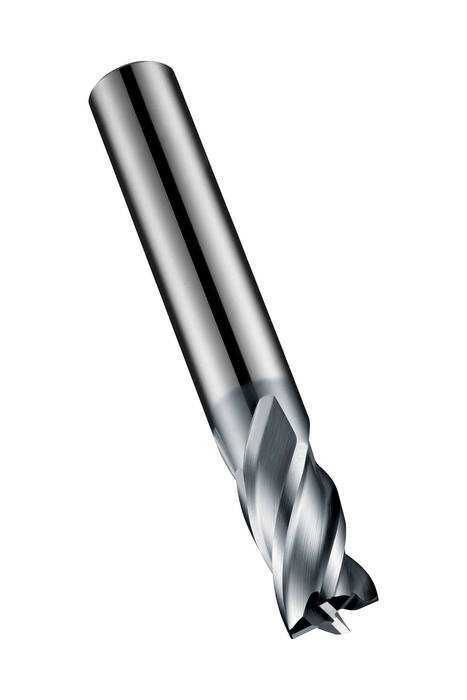

Extra short series end mill with 4 flutes, diameter 10mm with 14mm length of cut, 66mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 K standard with a 10mm plain shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HA10.0
GradeAlCrN
Product Number5982575
Product FamilyS804HA

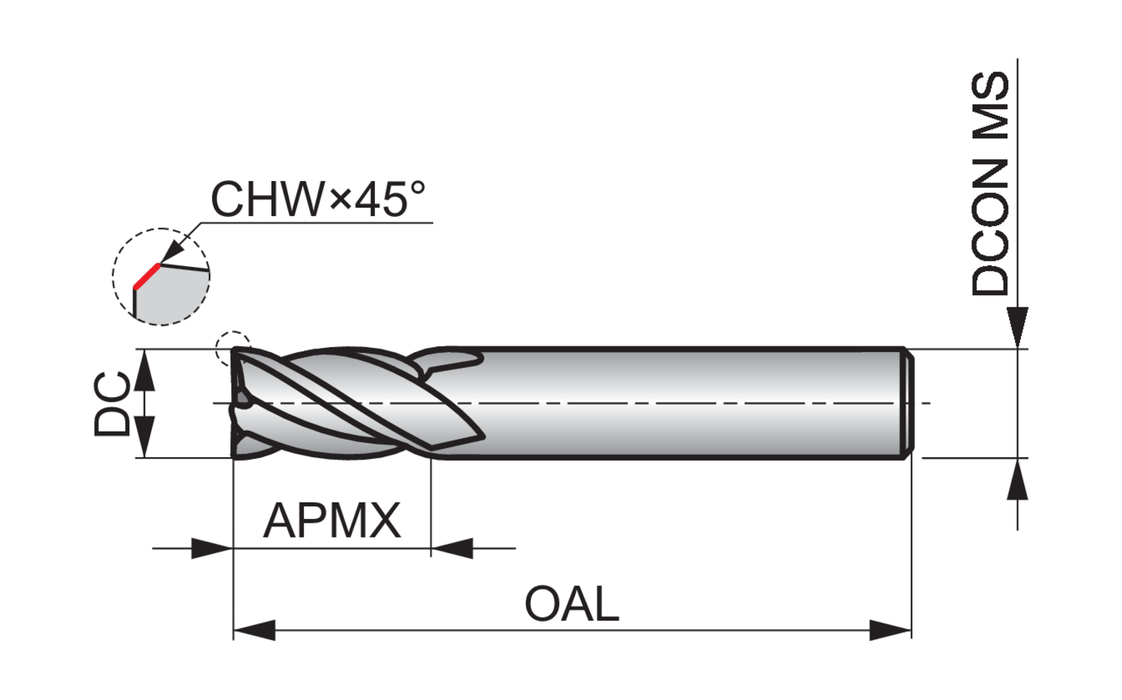

Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641668
EAN7320760641668
File Type Download
S804HA10.0 — 3D Model STP Download
S804HA10.0 — 2D Model DXF Download
S804HA10.0 — Line Drawing PDF Download
