S804HA12.0

S804HA12.0

SKU DOR5982577
by Dormer Pramet
Primary Use: Possible Use:

Extra short series end mill with 4 flutes, diameter 12mm with 16mm length of cut, 73mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 K standard with a 12mm plain shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$150.11 - $150.11
$150.11
$150.11 - $150.11
$150.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

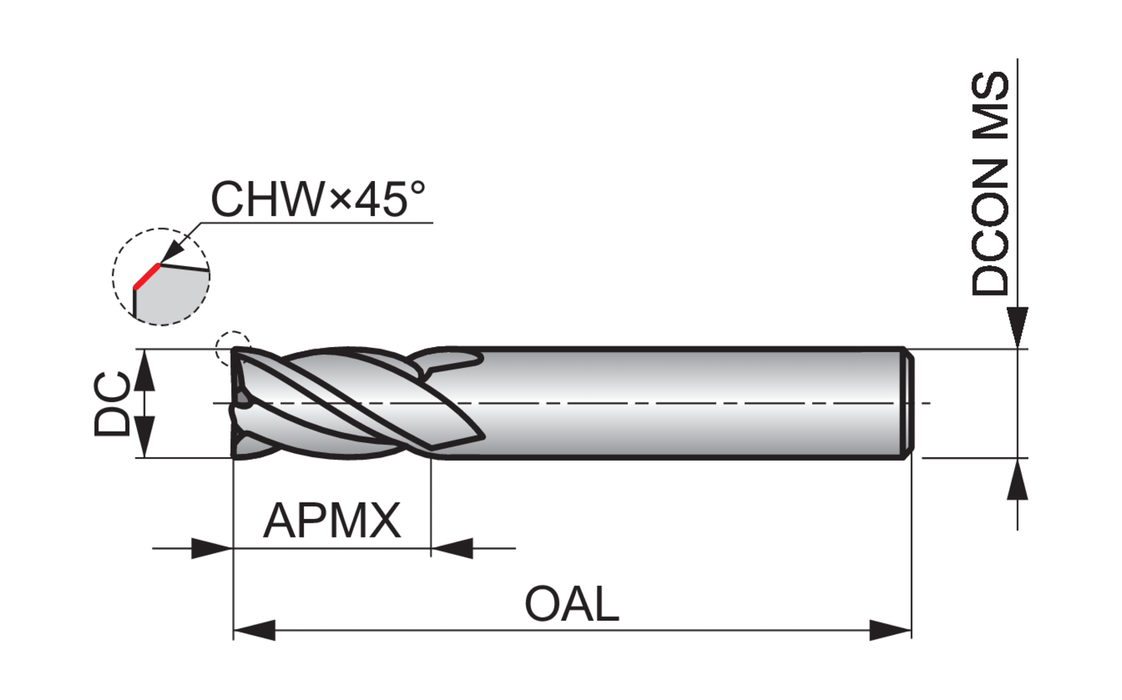

Material: HM

Cutting Diameter - in (DC): 0.4724

Cutting Diameter - mm (DC): 12.0

Overall Length (OAL): 2.874

Connetion Diameter: 0.4724

Max. Depth of Cut: 0.6299

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 4

EDP: 641675

EAN: 7320760641675

MFG Part Number: 5982577
