S9222.0

S9222.0

SKU DOR5982753
by Dormer Pramet
Primary Use:

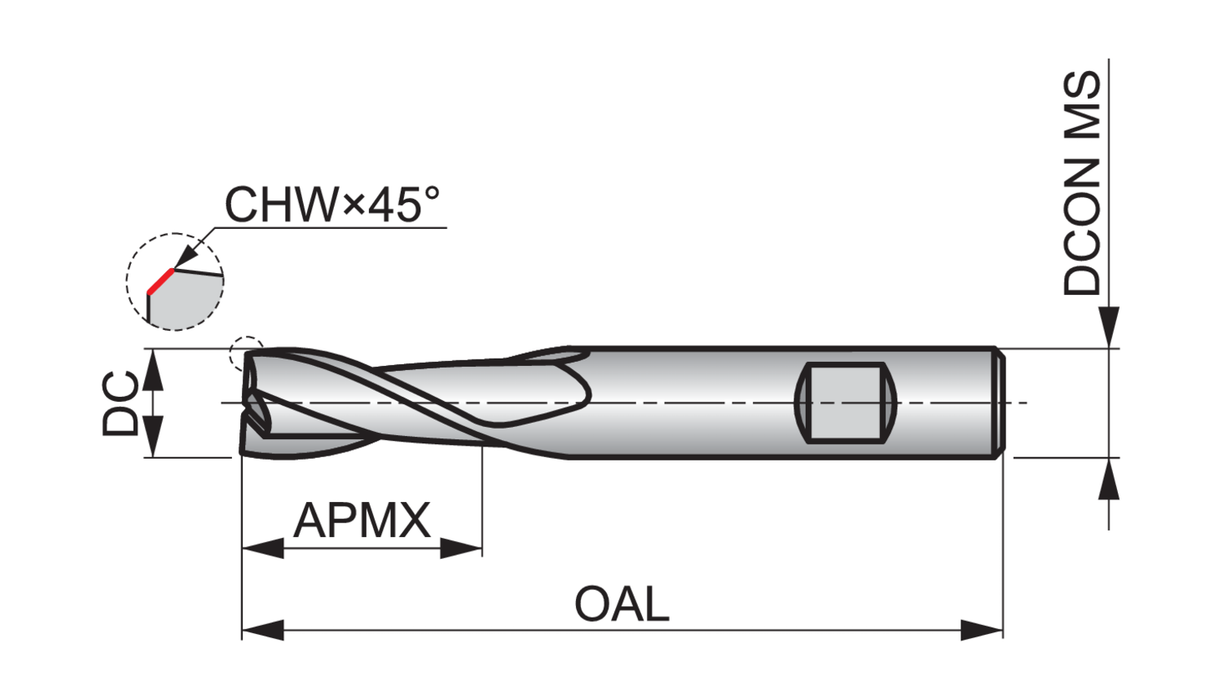

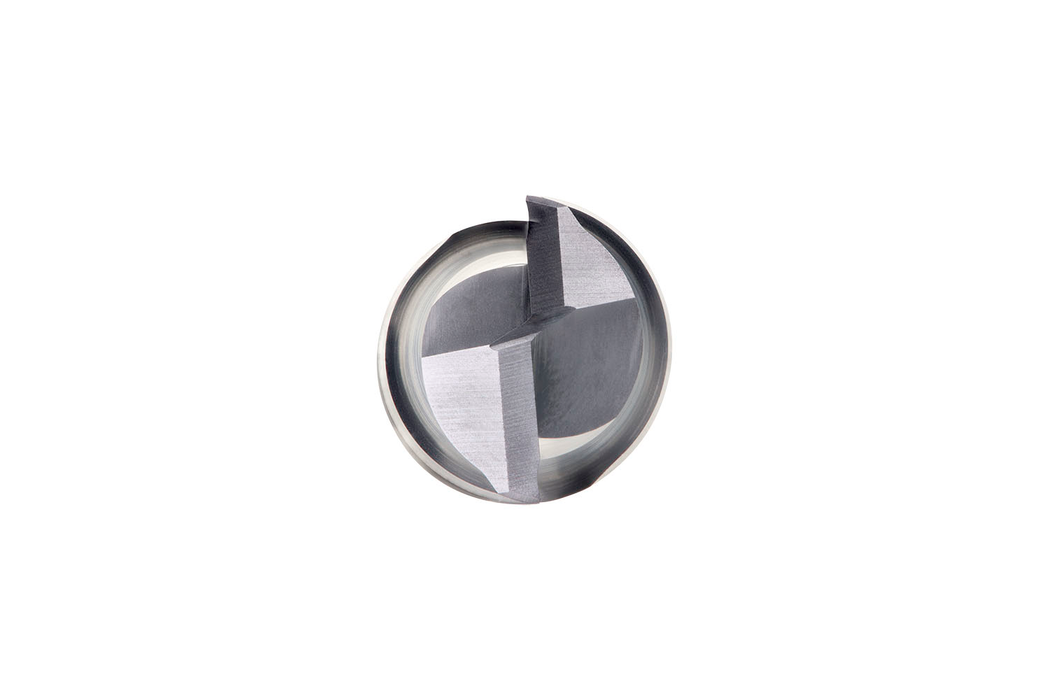

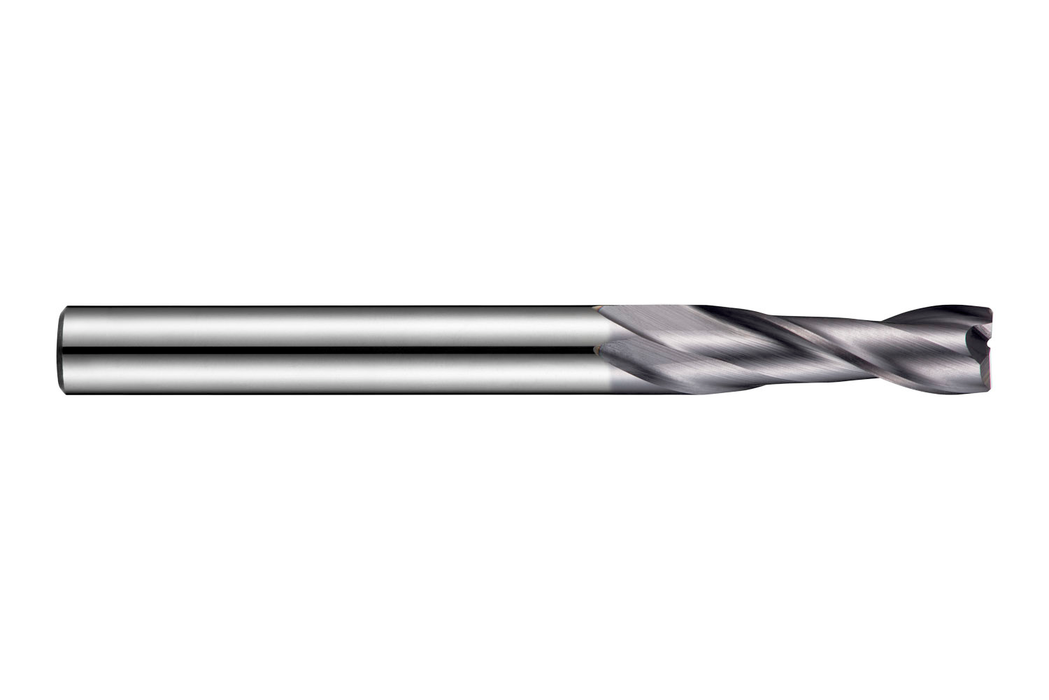

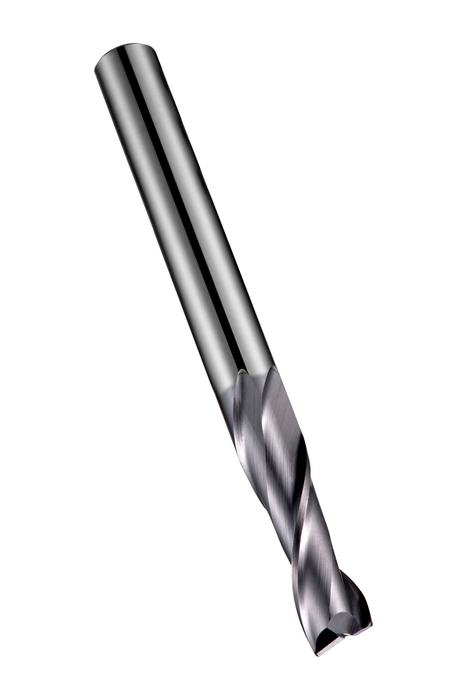

Regular length end mill with 2 flutes, diameter 2mm with 6mm length of cut, 38mm overall length and 0.08mm 45° chamfered corner edges, according to DORMER standard with a 3mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$32.87 - $32.87
$32.87
$32.87 - $32.87
$32.87
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Cutting Diameter - in (DC): 0.0787

Cutting Diameter - mm (DC): 2.0

Overall Length (OAL): 1.4961

Connetion Diameter: 0.1181

Max. Depth of Cut: 0.2362

Shank: Cylindrical shank DIN 6535 HB

Grade: TiAlN

Cutting Edge Count: 2

EDP: 39915

EAN: 7320760039915

MFG Part Number: 5982753
