S93316.0

S93316.0

SKU DOR5982802
by Dormer Pramet
Primary Use:

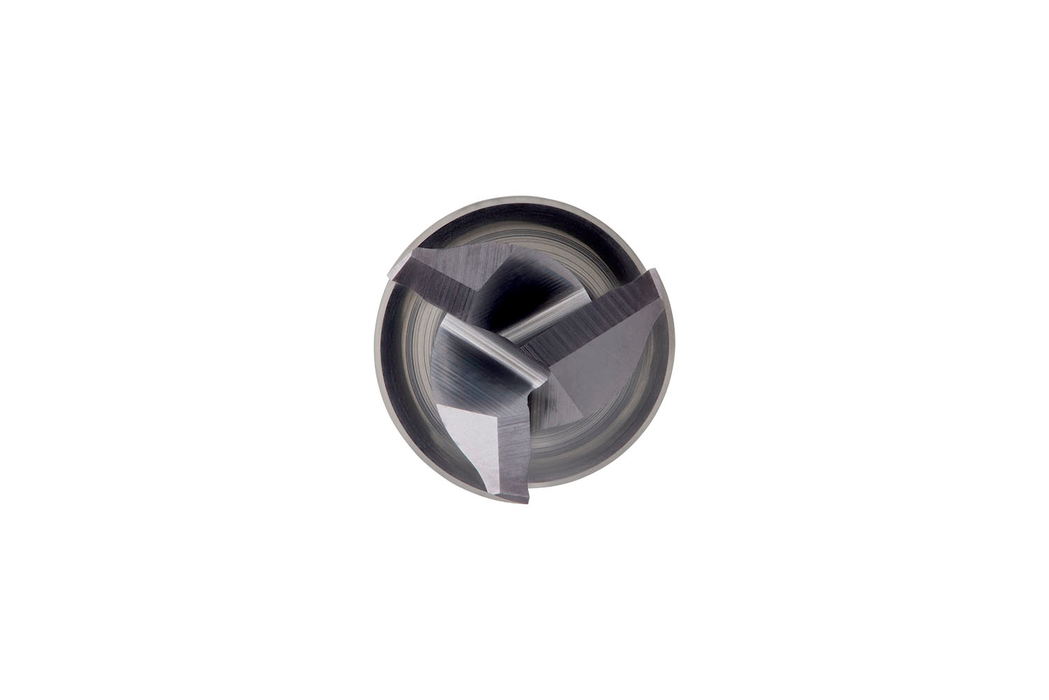

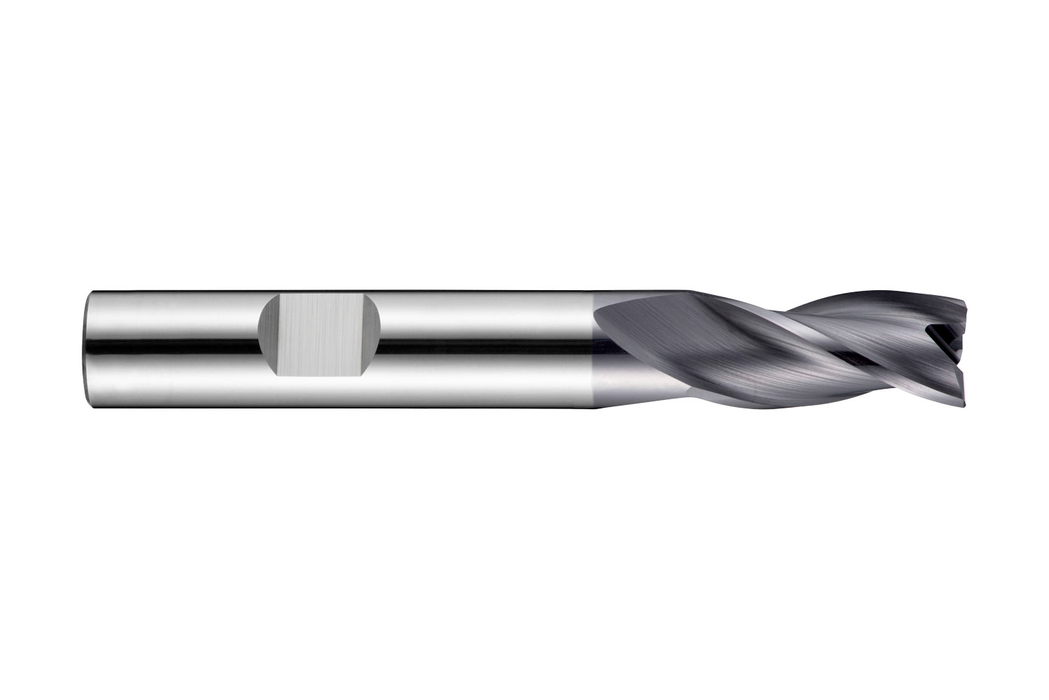

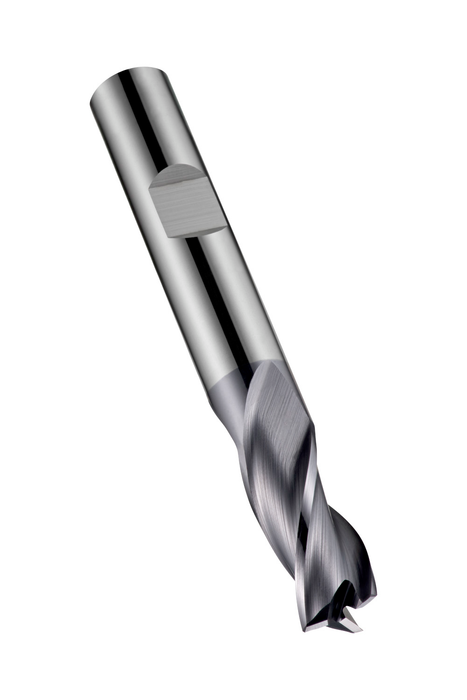

Regular length end mill with 3 flutes, diameter 16mm with 32mm length of cut, 92mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 16mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for shoulder milling and slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$176.54 - $176.54
$176.54
$176.54 - $176.54
$176.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

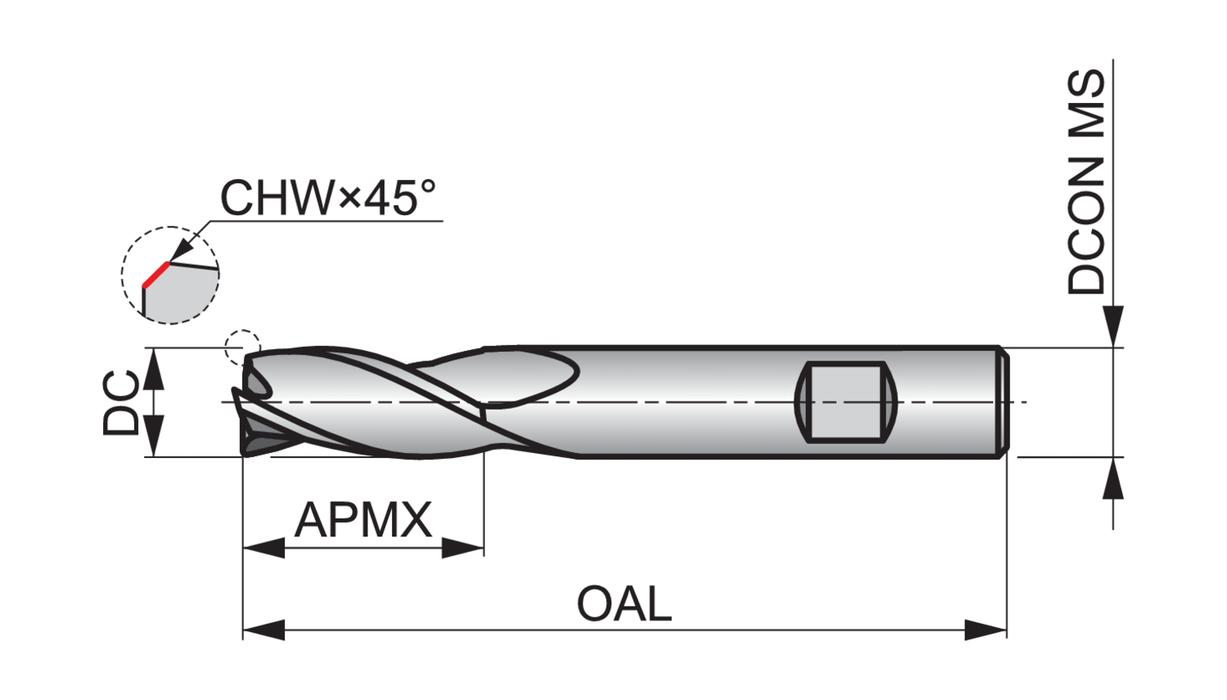

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 3.622

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HB

Grade: TiAlN

Cutting Edge Count: 3

EDP: 40188

EAN: 7320760040188

MFG Part Number: 5982802
