S93320.0

S93320.0

SKU DOR5982820
by Dormer Pramet
Primary Use:

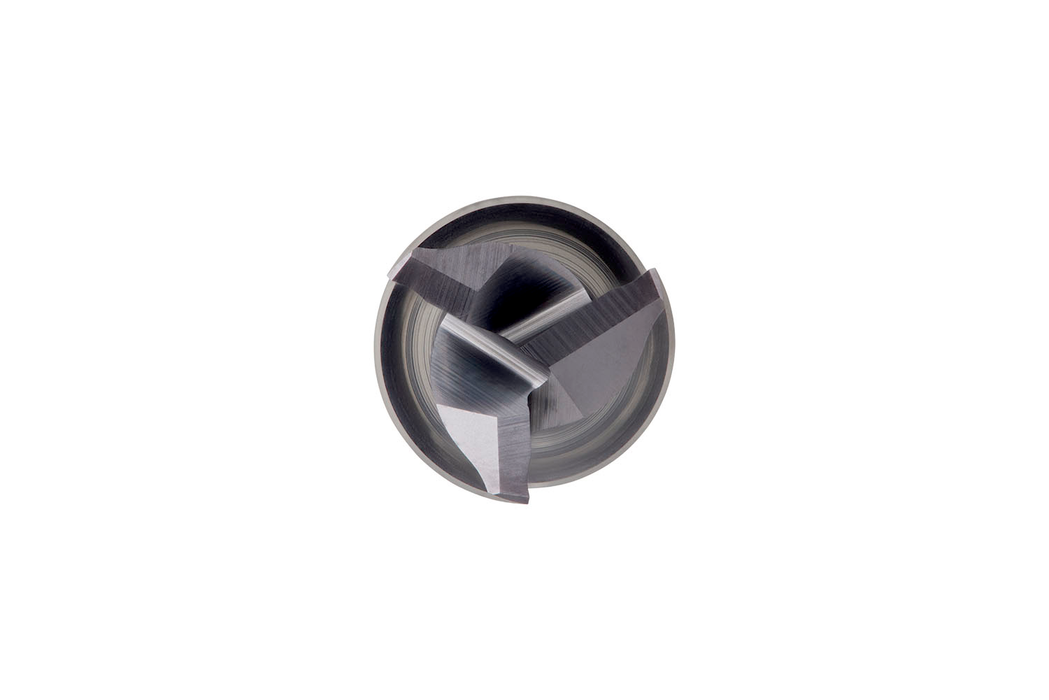

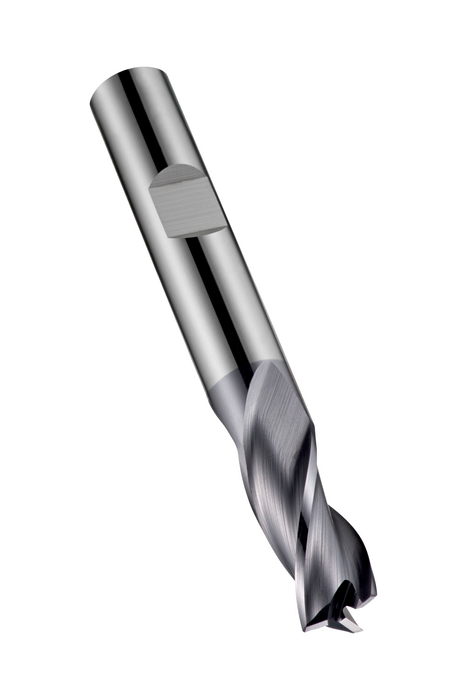

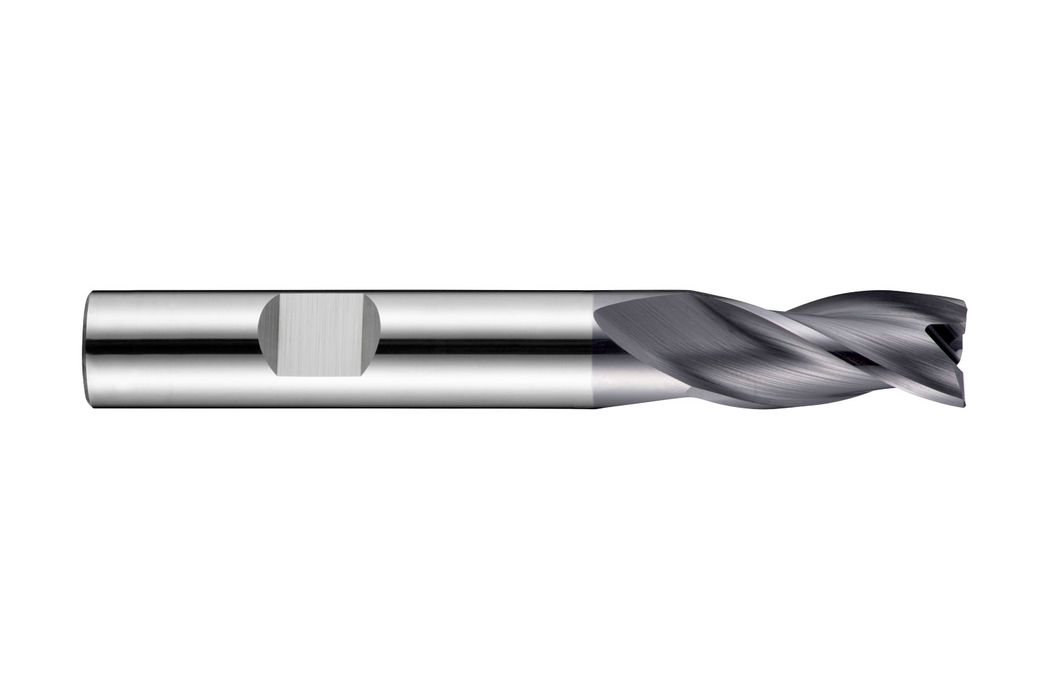

Regular length end mill with 3 flutes, diameter 20mm with 38mm length of cut, 104mm overall length and 0.3mm 45° chamfered corner edges, according to DORMER standard with a 20mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for shoulder milling and slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$273.80 - $273.80
$273.80
$273.80 - $273.80
$273.80
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

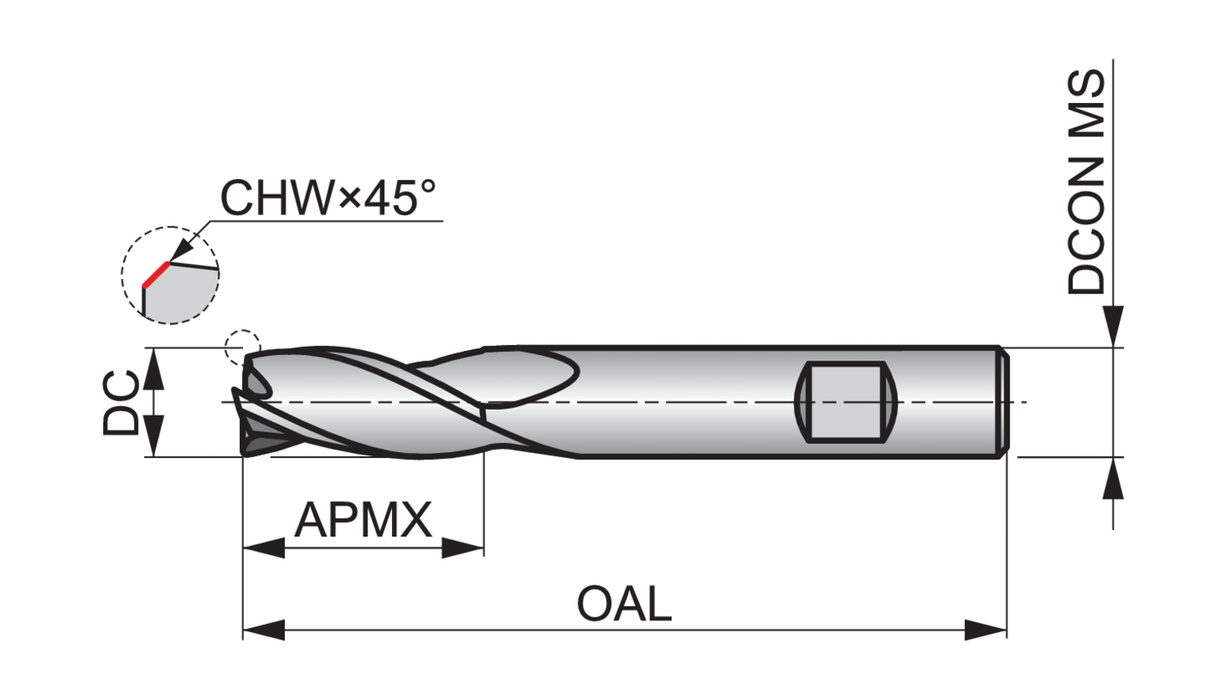

Material: HM

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Overall Length (OAL): 4.0945

Connetion Diameter: 0.7874

Max. Depth of Cut: 1.4961

Shank: Cylindrical shank DIN 6535 HB

Grade: TiAlN

Cutting Edge Count: 3

EDP: 40201

EAN: 7320760040201

MFG Part Number: 5982820
