S51116.0

S51116.0

SKU DOR5982854
by Dormer Pramet
Primary Use: Possible Use:

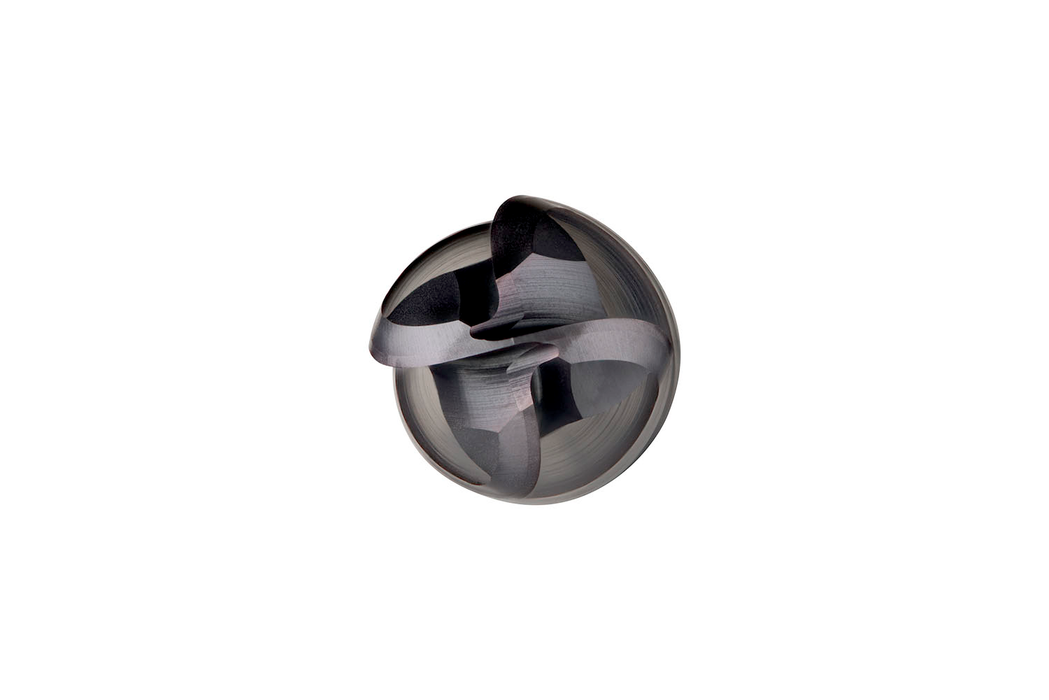

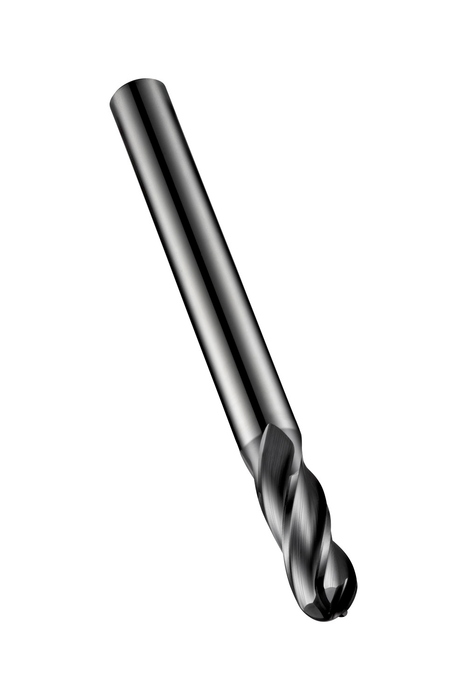

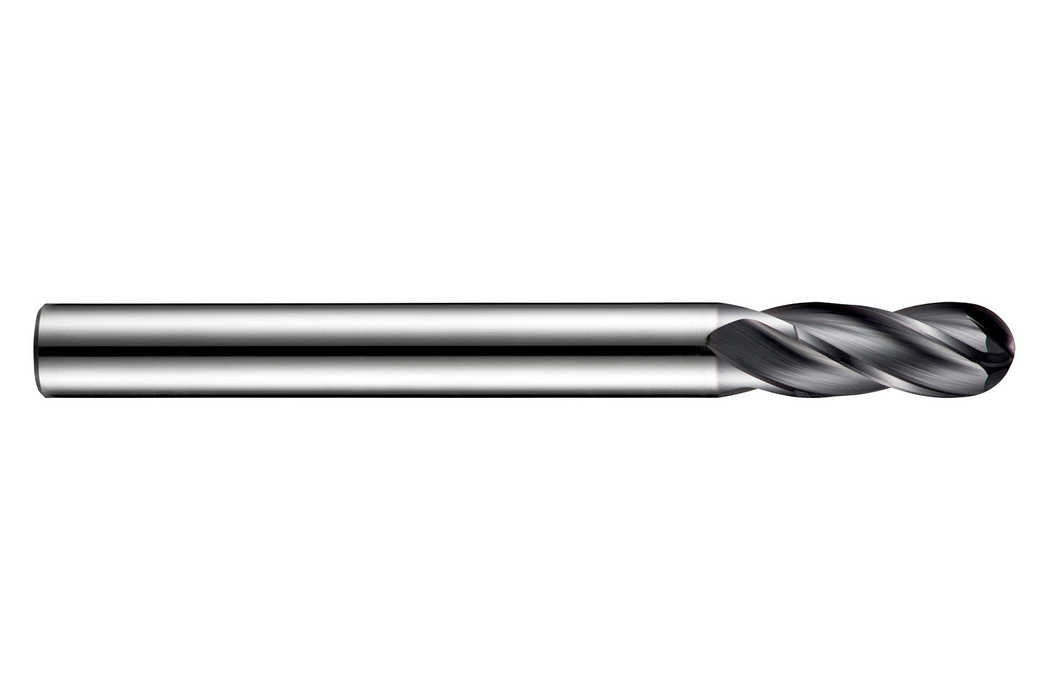

Short series ball-nose end mill with 4 flutes, diameter 16mm with 32mm length of cut, 100mm overall length and 8mm full profile radius, according to DORMER standard with a 16mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$451.40 - $451.40
$451.40
$451.40 - $451.40
$451.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

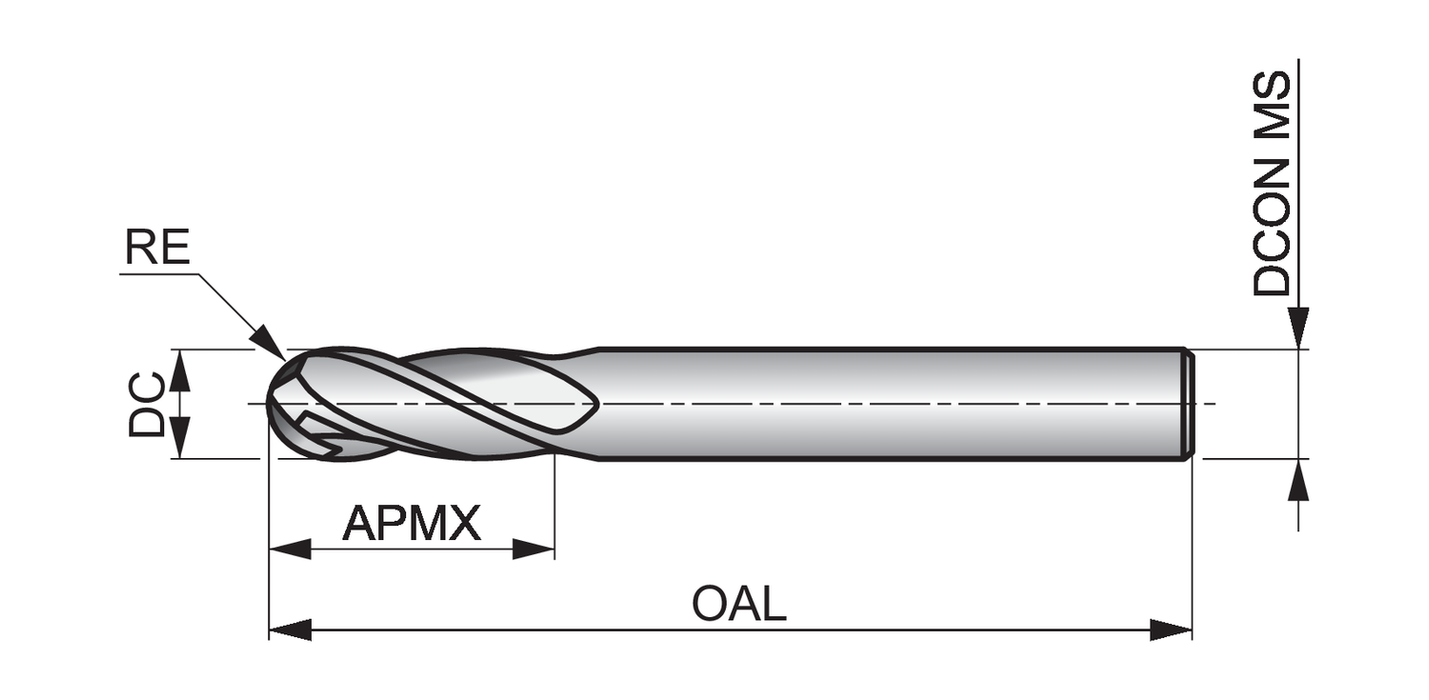

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 3.937

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HA

Grade: X-CEED

Corner Radius - in: 0.315

Corner Radius - mm: 8

Cutting Edge Count: 4

EDP: 120996

EAN: 7320760120996

MFG Part Number: 5982854
