S9022.5

S9022.5

SKU DOR5983013
by Dormer Pramet
Primary Use:

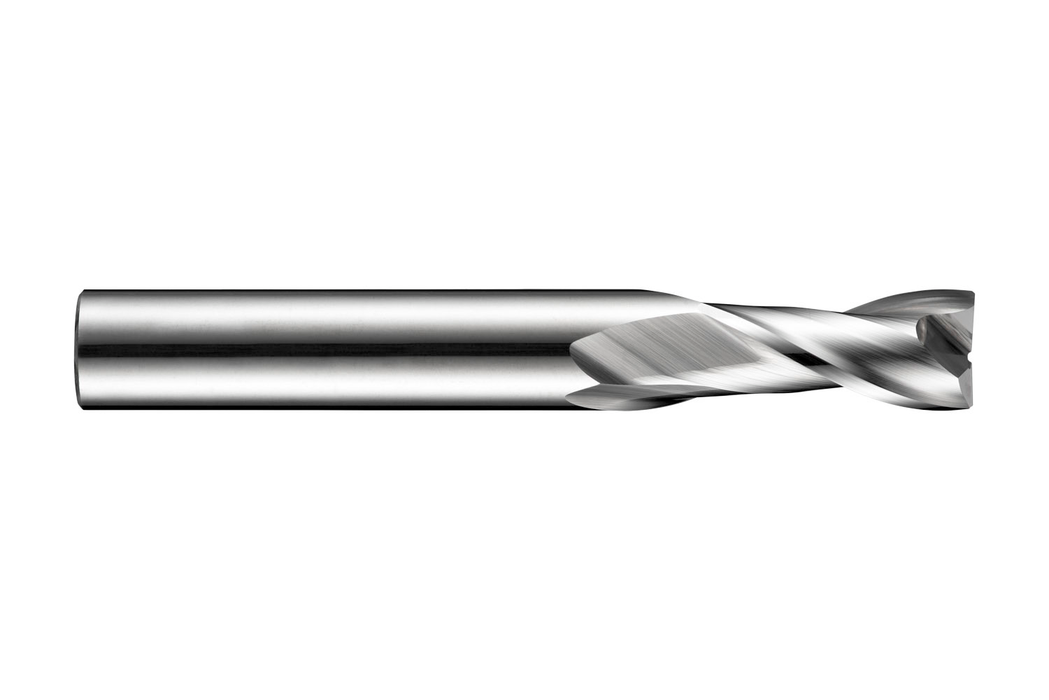

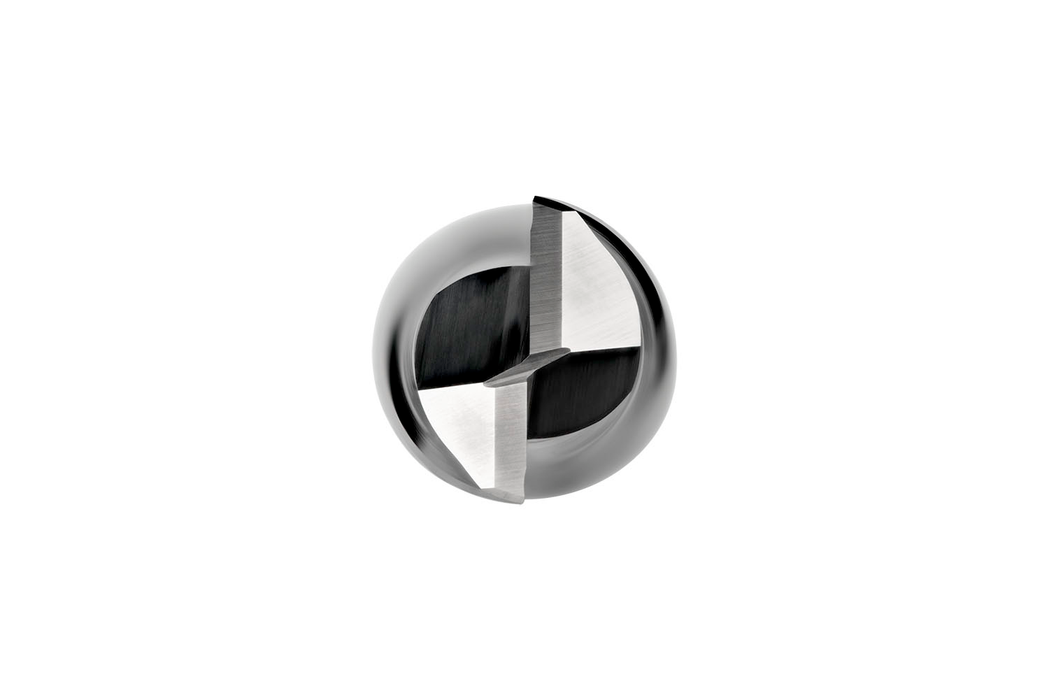

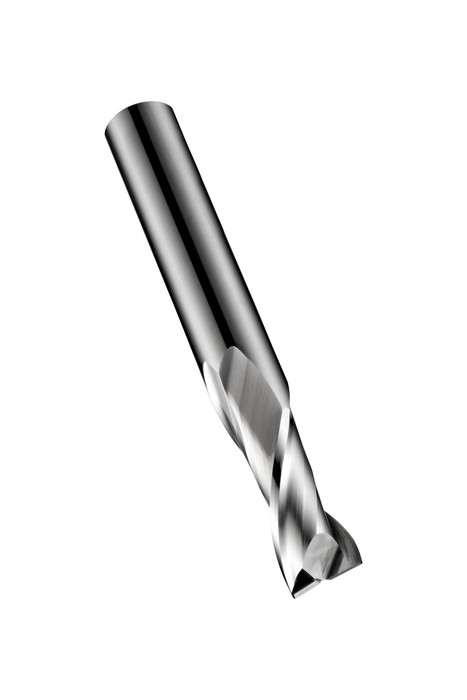

Regular length end mill with 2 flutes, diameter 2.5mm with 9mm length of cut, 38mm overall length and 0.08mm 45° chamfered corner edges, according to DORMER standard with a 3mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for slot milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$29.76 - $29.76
$29.76
$29.76 - $29.76
$29.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

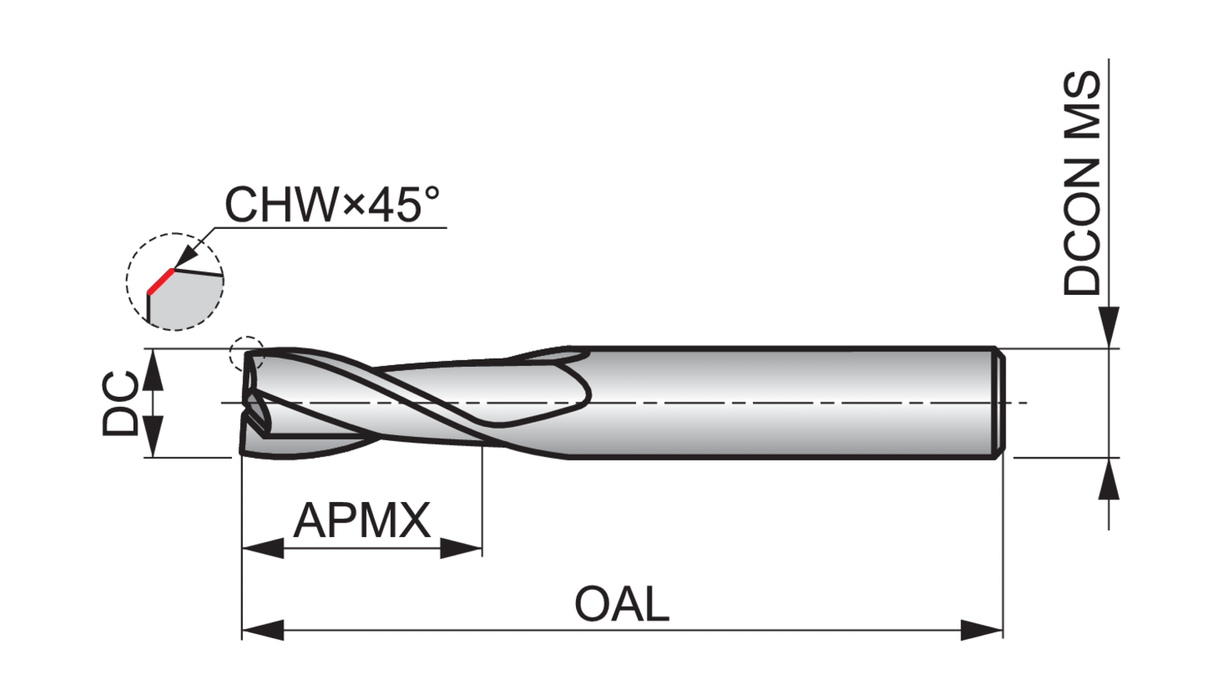

Material: HM

Cutting Diameter - in (DC): 0.0984

Cutting Diameter - mm (DC): 2.5

Overall Length (OAL): 1.4961

Connetion Diameter: 0.1181

Max. Depth of Cut: 0.3543

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

Cutting Edge Count: 2

EDP: 132760

EAN: 7320760132760

MFG Part Number: 5983013
