S90220.0

S90220.0

SKU DOR5983017
by Dormer Pramet
Primary Use:

Regular length end mill with 2 flutes, diameter 20mm with 38mm length of cut, 104mm overall length and 0.3mm 45° chamfered corner edges, according to DORMER standard with a 20mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for slot milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$208.79 - $208.79
$208.79
$208.79 - $208.79
$208.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

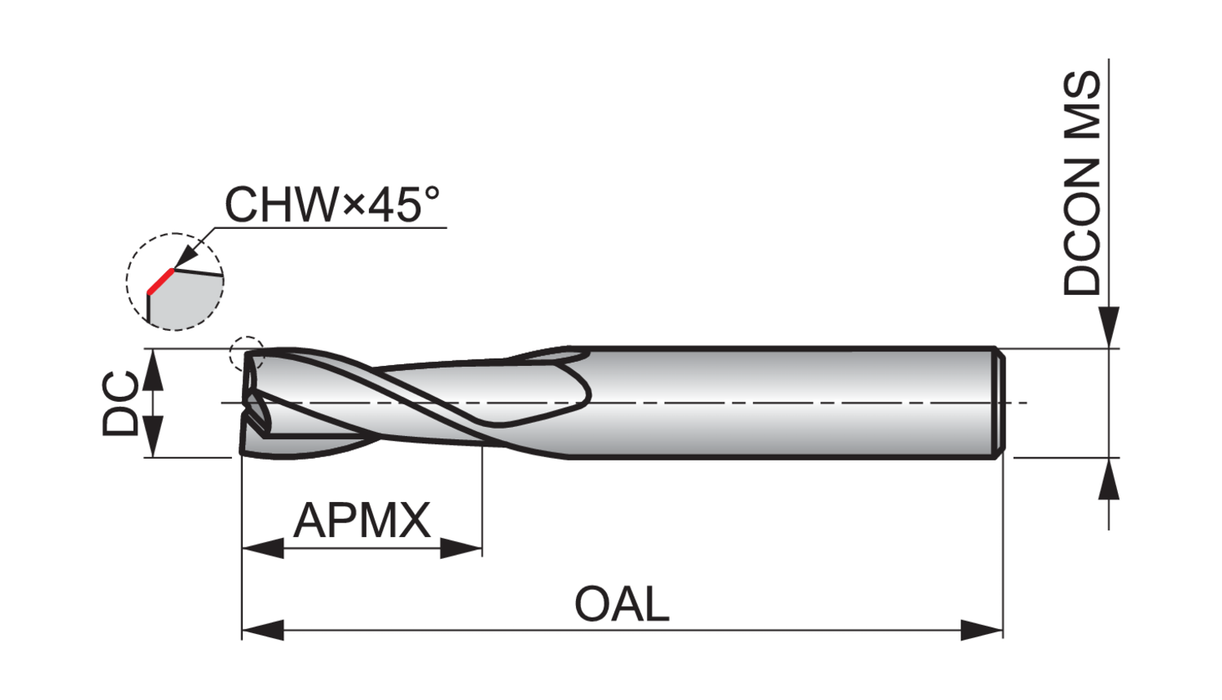

Material: HM

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Overall Length (OAL): 4.0945

Connetion Diameter: 0.7874

Max. Depth of Cut: 1.4961

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

Cutting Edge Count: 2

EDP: 132777

EAN: 7320760132777

MFG Part Number: 5983017
