S90318.0

S90318.0

SKU DOR5983077
by Dormer Pramet
Primary Use:

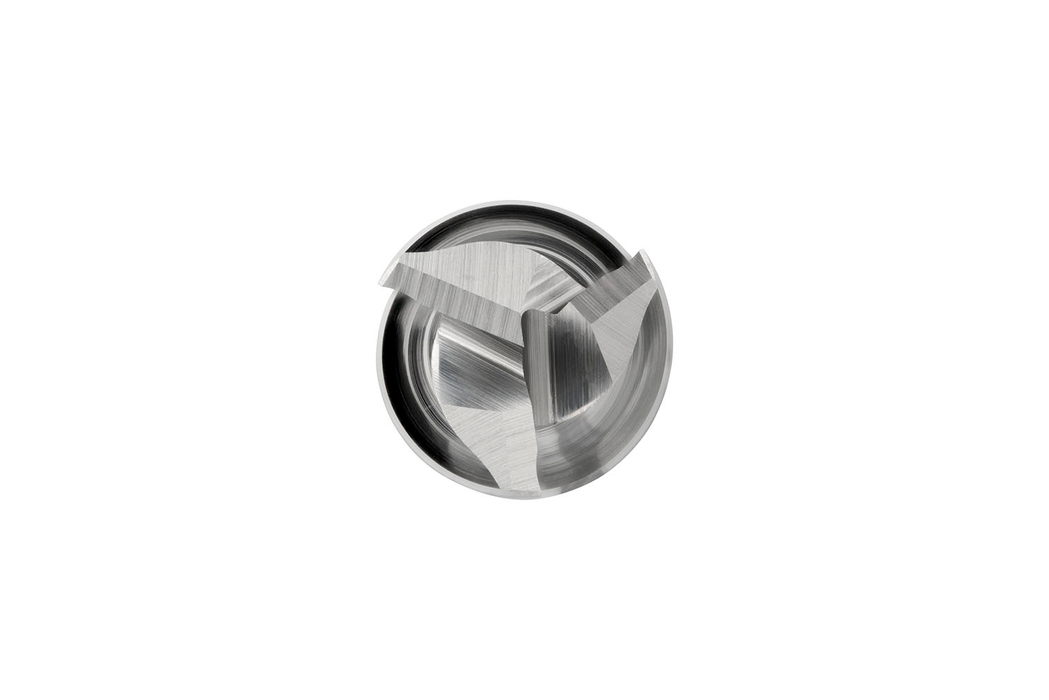

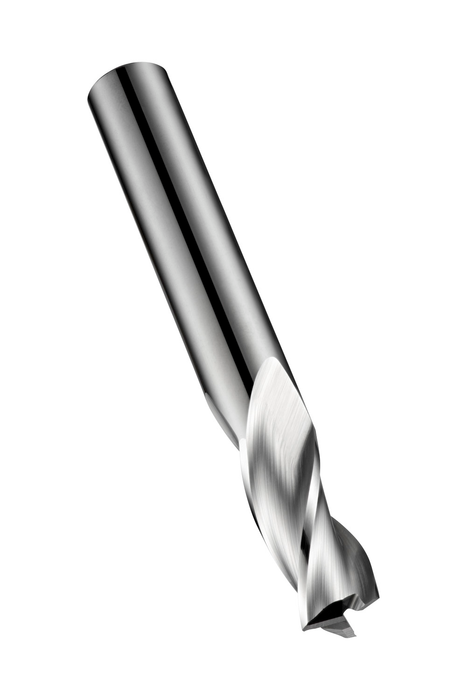

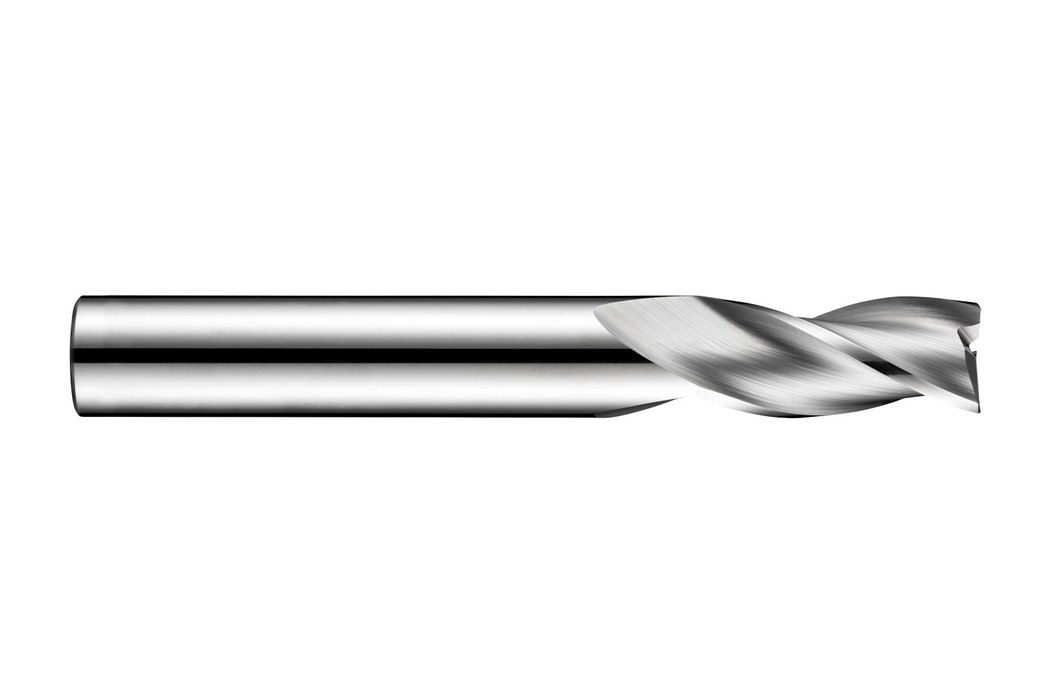

Regular length end mill with 3 flutes, diameter 18mm with 32mm length of cut, 92mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 18mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$176.54 - $176.54
$176.54
$176.54 - $176.54
$176.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

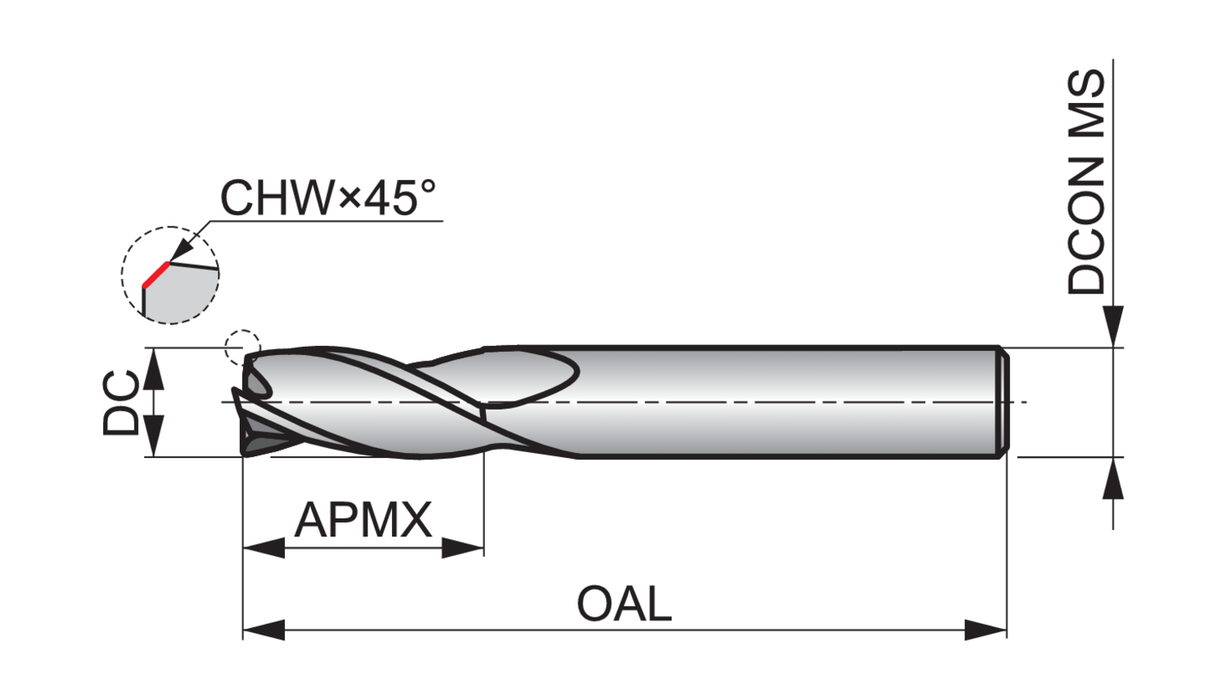

Cutting Diameter - in (DC): 0.7087

Cutting Diameter - mm (DC): 18.0

Overall Length (OAL): 3.622

Connetion Diameter: 0.7087

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank DIN 6535 HA

Grade: Bright

Cutting Edge Count: 3

EDP: 132975

EAN: 7320760132975

MFG Part Number: 5983077
