S5011.5

S5011.5

SKU DOR5983117
by Dormer Pramet
Primary Use: Possible Use:

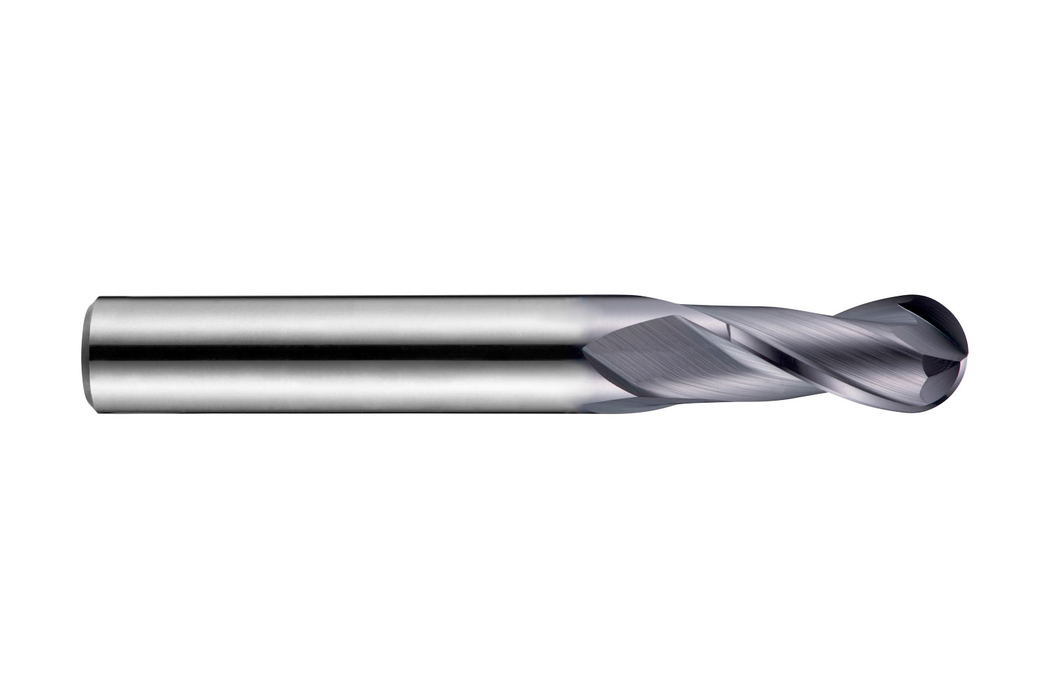

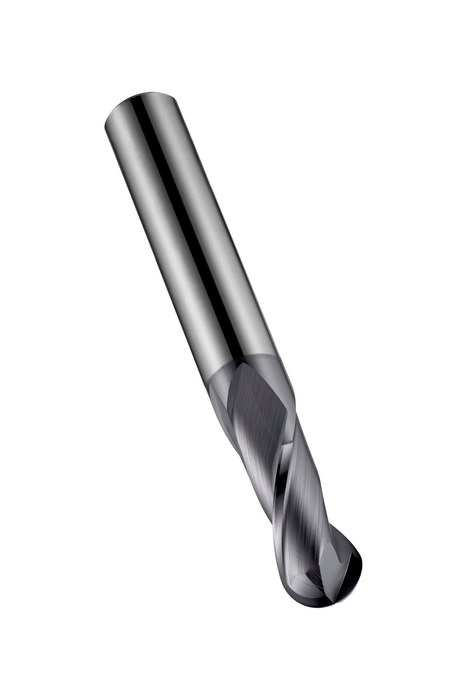

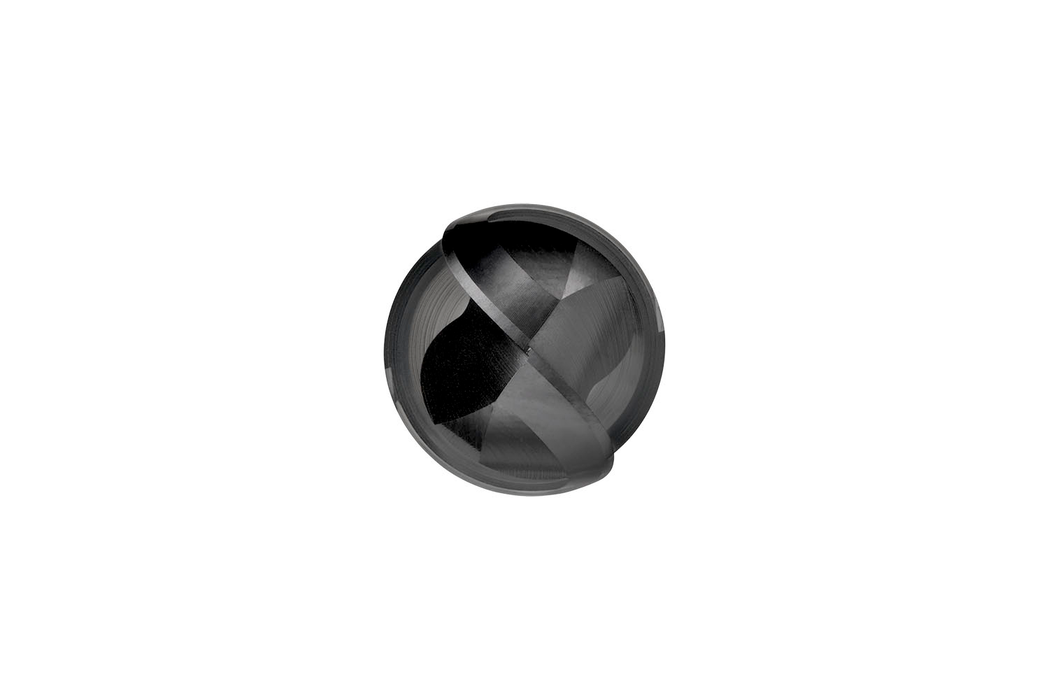

Short series ball-nose end mill with 2 flutes, diameter 1.5mm with 3mm length of cut, 38mm overall length and 0.75mm full profile radius, according to DORMER standard with a 3mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$91.44 - $91.44
$91.44
$91.44 - $91.44
$91.44
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

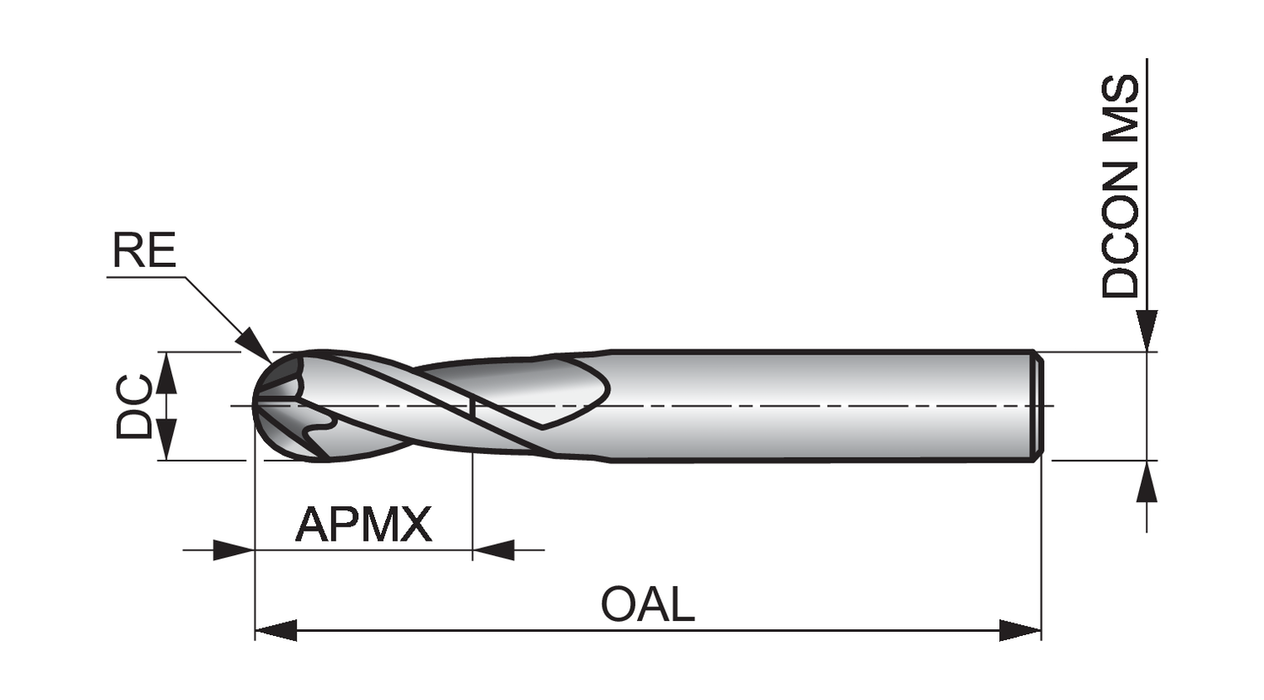

Material: HM

Cutting Diameter - in (DC): 0.0591

Cutting Diameter - mm (DC): 1.5

Overall Length (OAL): 1.4961

Connetion Diameter: 0.1181

Max. Depth of Cut: 0.1181

Shank: Cylindrical shank DIN 6535 HA

Grade: X-CEED

Corner Radius - in: 0.0295

Corner Radius - mm: 0.75

Cutting Edge Count: 2

EDP: 388372

EAN: 7320760388372

MFG Part Number: 5983117
