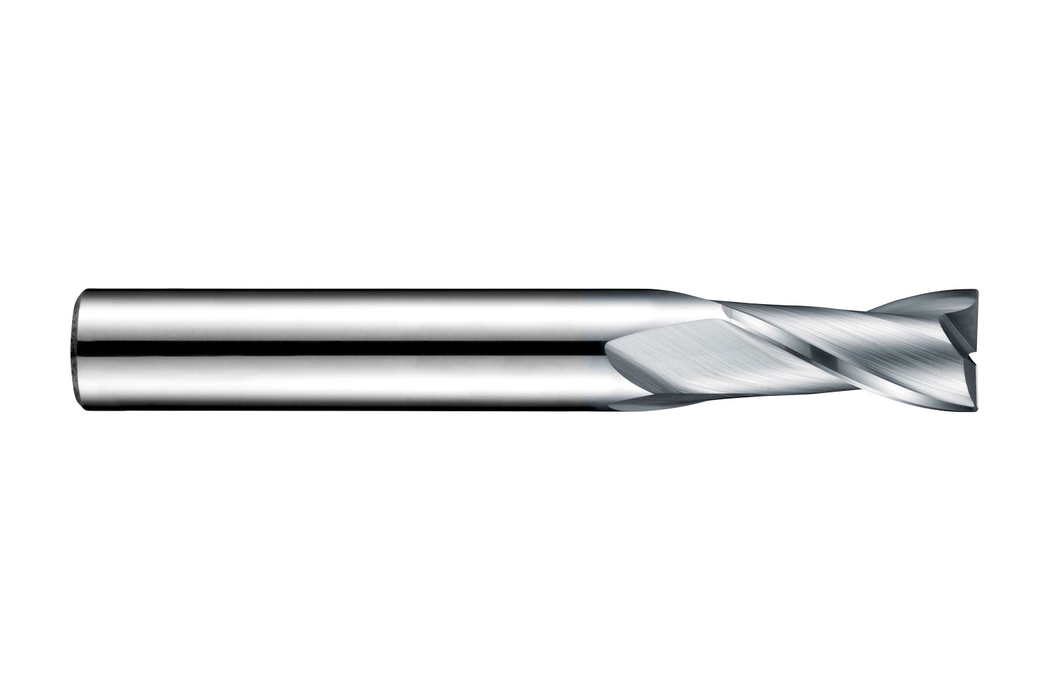

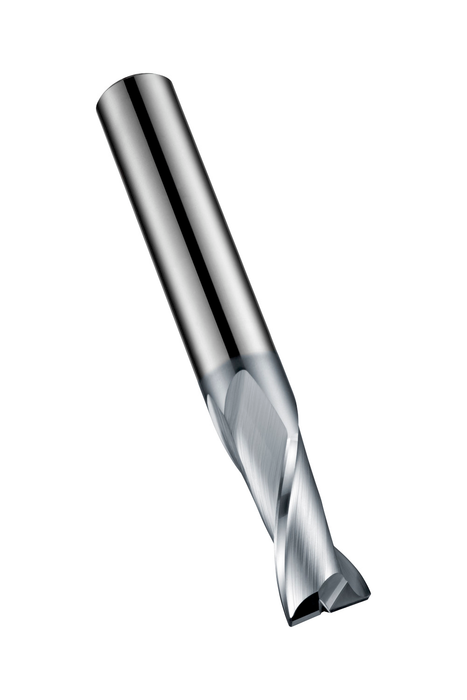

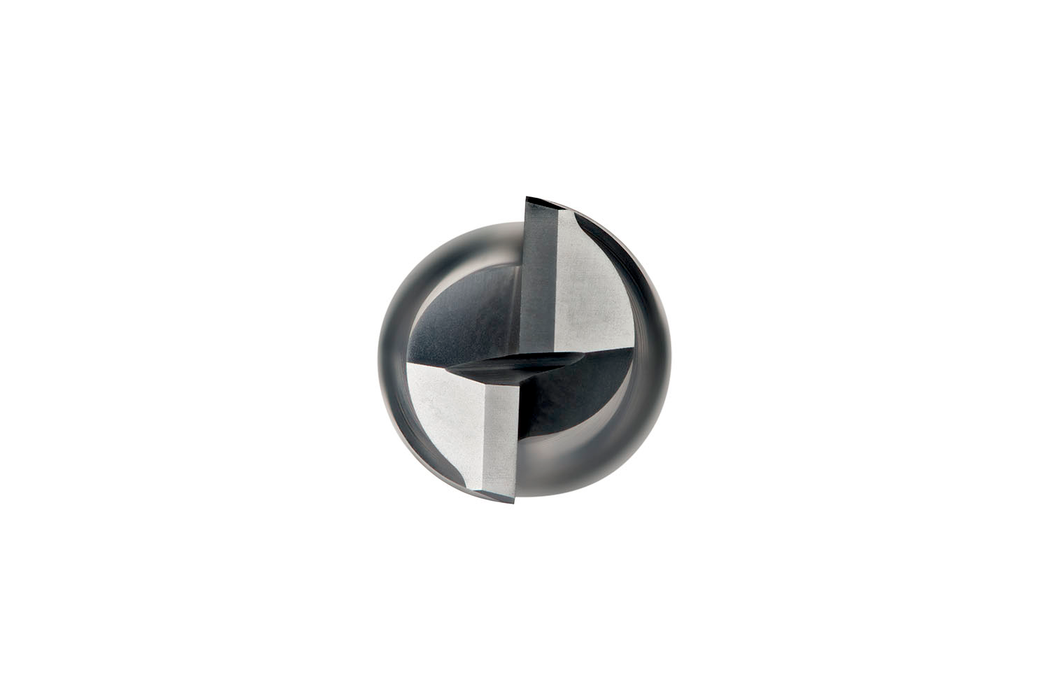

S812HA18.0

S812HA18.0

SKU DOR5983507
by Dormer Pramet
Primary Use:

Short series slot drill with 2 flutes, diameter 18mm with 26mm length of cut, 92mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 L standard with a 18mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$290.71 - $290.71
$290.71
$290.71 - $290.71
$290.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

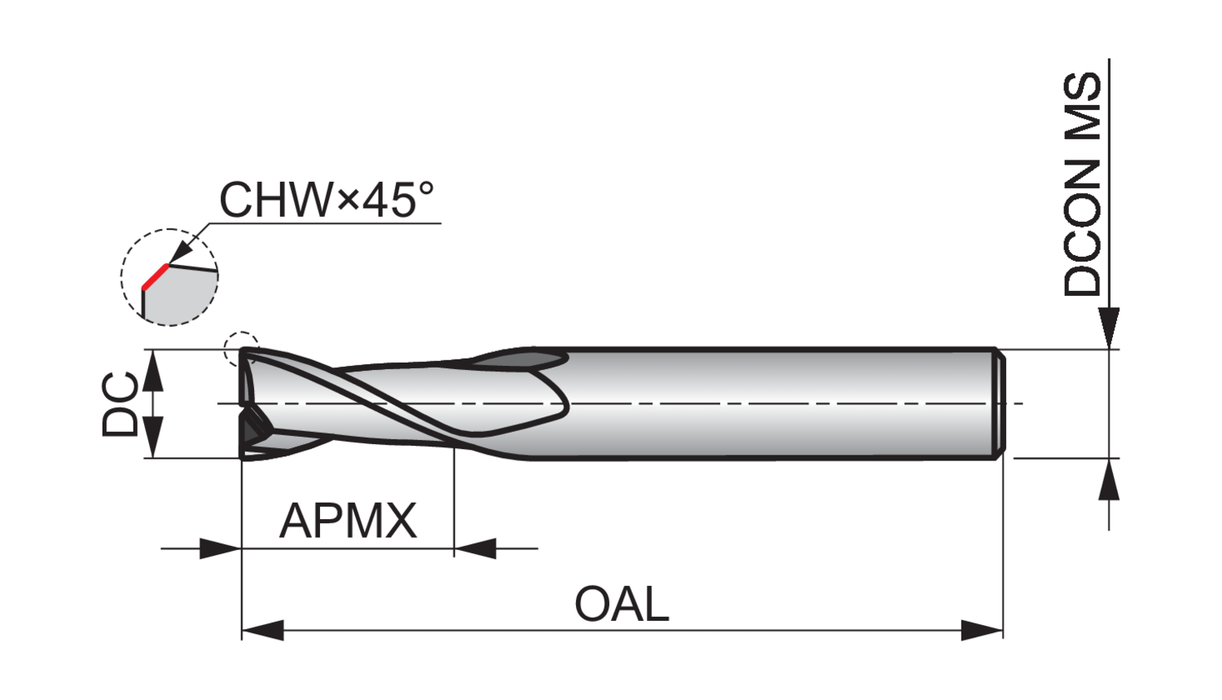

Material: HM

Cutting Diameter - in (DC): 0.7087

Cutting Diameter - mm (DC): 18.0

Overall Length (OAL): 3.622

Connetion Diameter: 0.7087

Max. Depth of Cut: 1.0236

Shank: Cylindrical shank DIN 6535 HA

Grade: AlCrN

Cutting Edge Count: 2

EDP: 641972

EAN: 7320760641972

MFG Part Number: 5983507
