S813HB4.5

S813HB4.5

SKU DOR5983548
by Dormer Pramet
Primary Use: Possible Use:

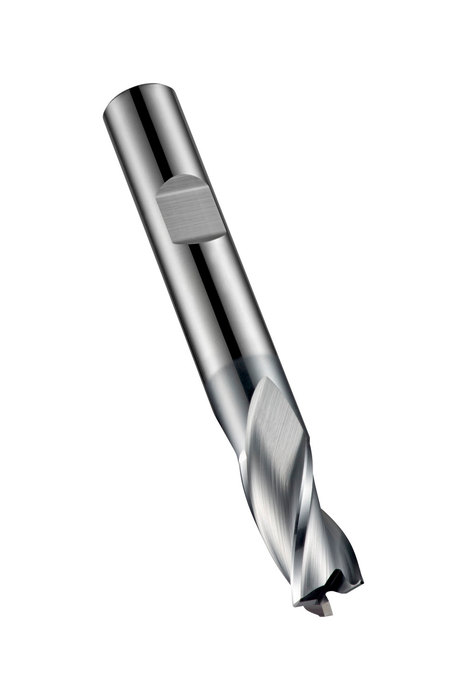

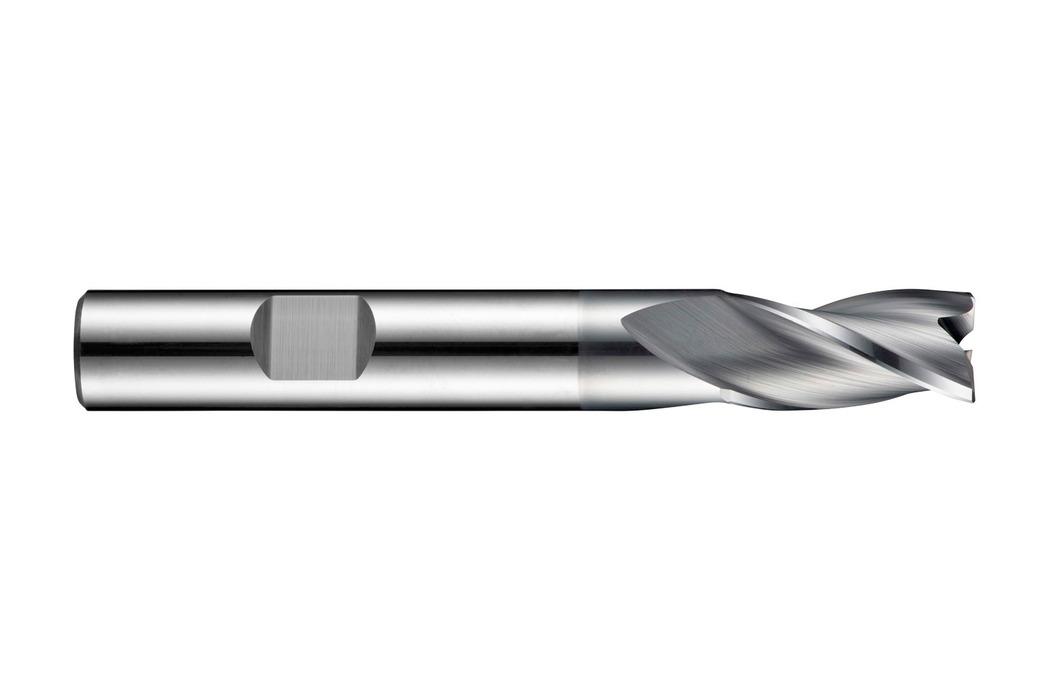

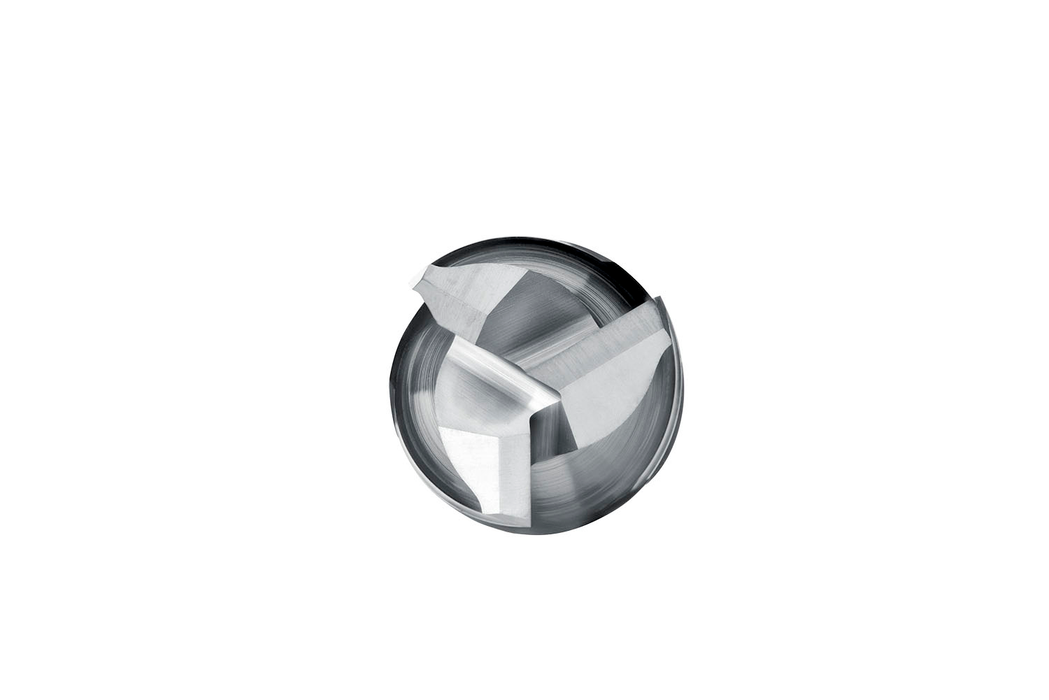

Short series slot drill with 3 flutes, diameter 4.5mm with 8mm length of cut, 57mm overall length and 0.13mm 45° chamfered corner edges, according to DIN 6527 L standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, plunging, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$62.90 - $62.90
$62.90
$62.90 - $62.90
$62.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

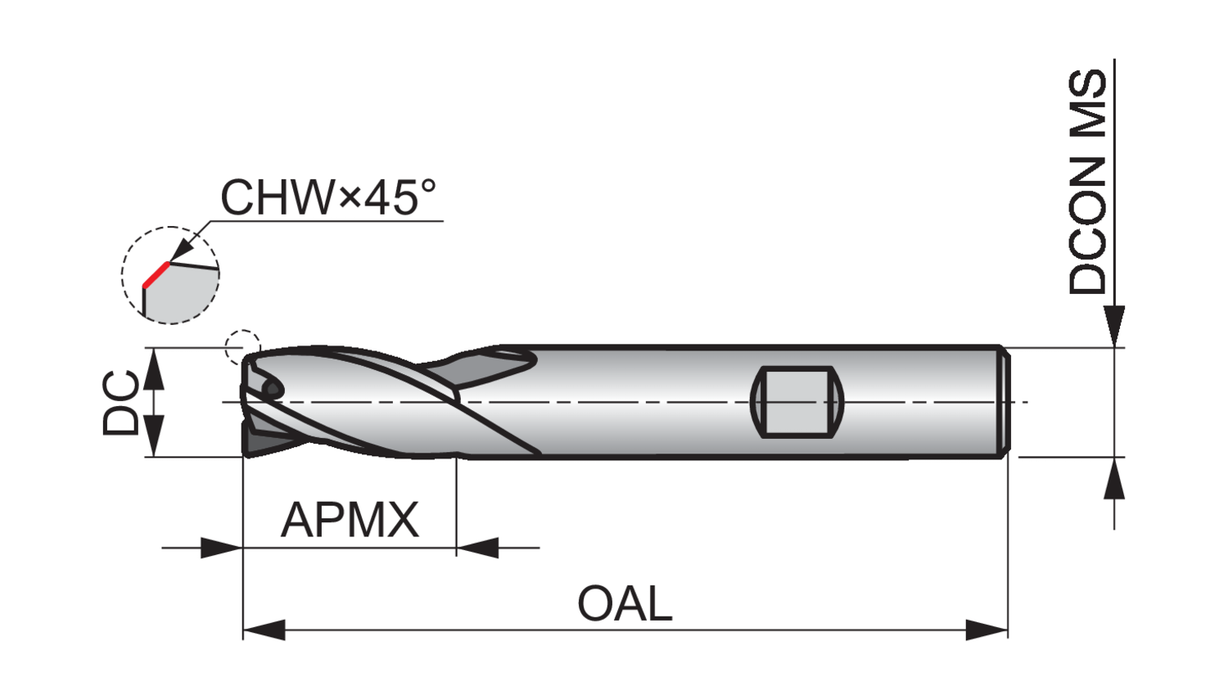

Material: HM

Cutting Diameter - in (DC): 0.1772

Cutting Diameter - mm (DC): 4.5

Overall Length (OAL): 2.2441

Connetion Diameter: 0.2362

Max. Depth of Cut: 0.315

Shank: Cylindrical shank DIN 6535 HB

Grade: AlCrN

Cutting Edge Count: 3

EDP: 642382

EAN: 7320760642382

MFG Part Number: 5983548
