S814HB10.0

S814HB10.0

SKU DOR5983604
by Dormer Pramet
Primary Use: Possible Use:

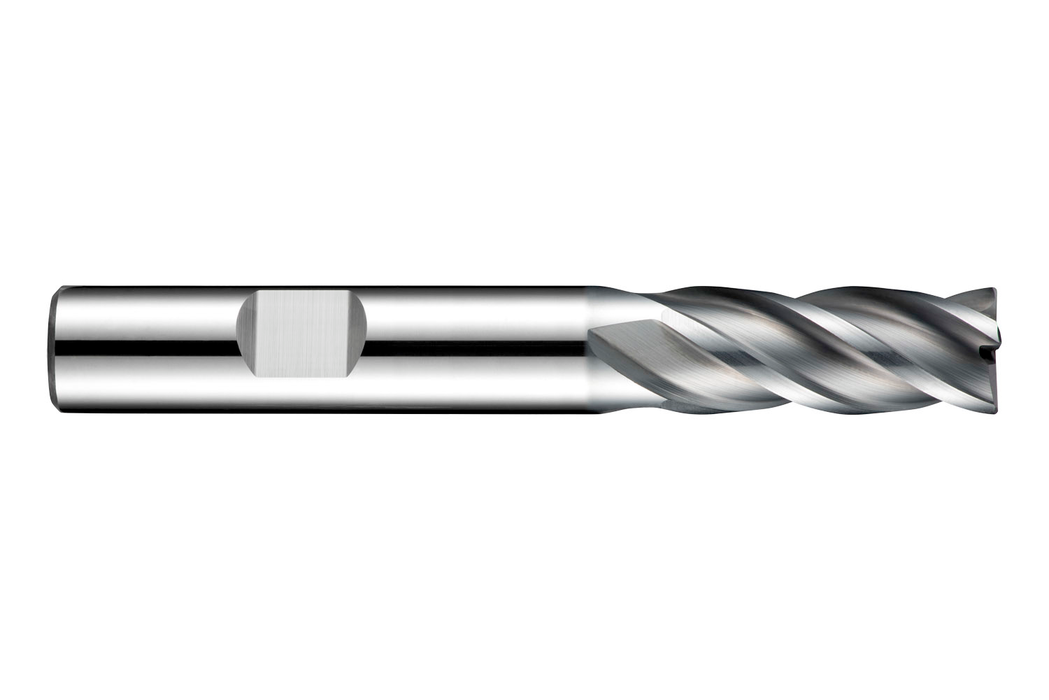

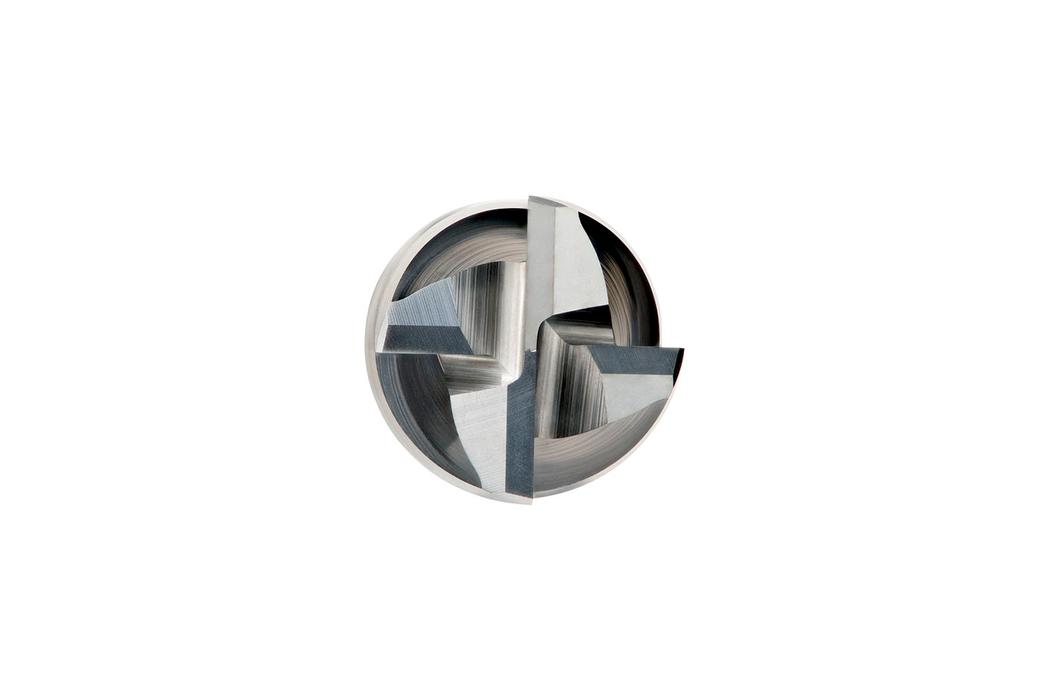

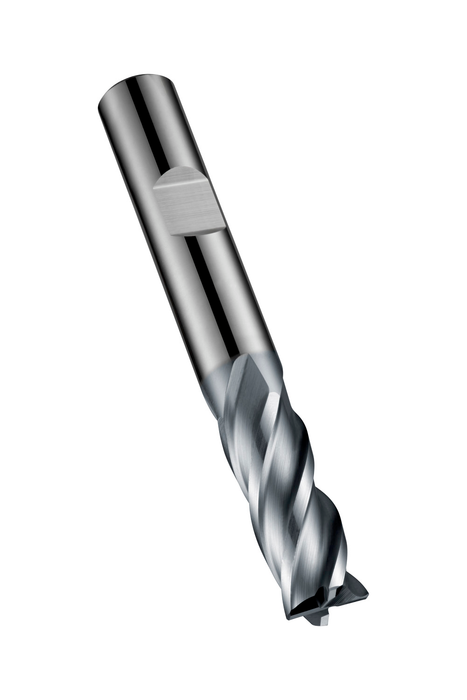

Short series end mill with 4 flutes, diameter 10mm with 22mm length of cut, 72mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 L standard with a 10mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$117.34 - $117.34
$117.34
$117.34 - $117.34
$117.34
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

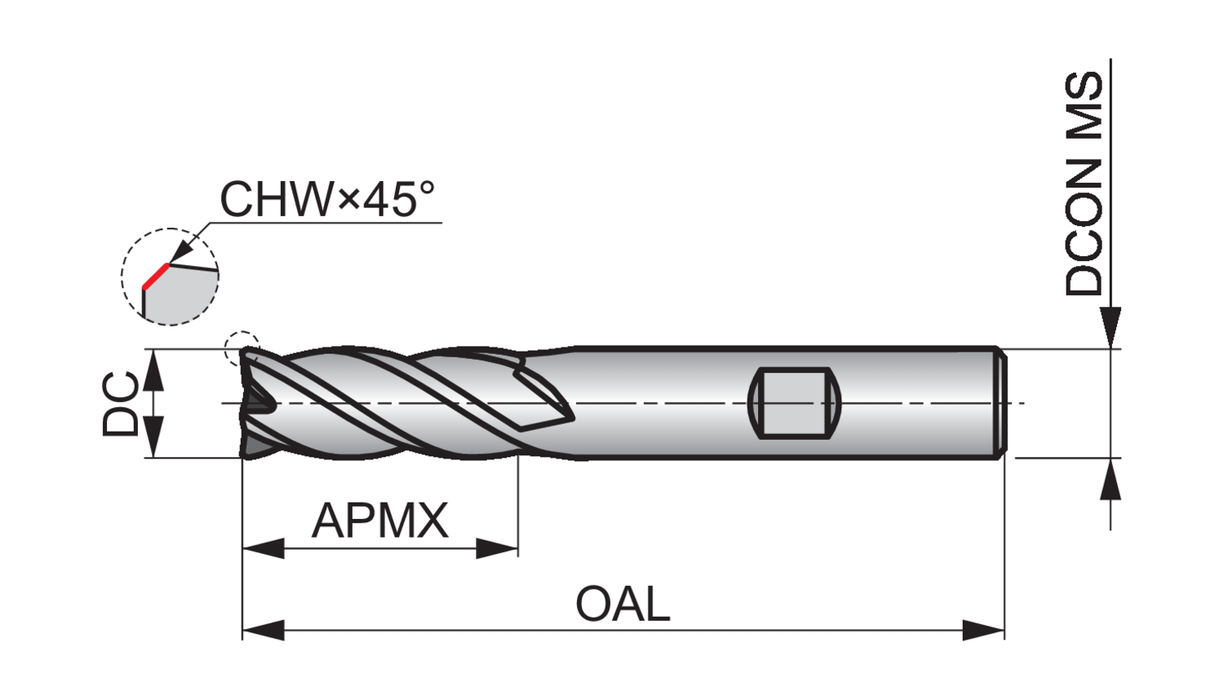

Material: HM

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Overall Length (OAL): 2.8346

Connetion Diameter: 0.3937

Max. Depth of Cut: 0.8661

Shank: Cylindrical shank DIN 6535 HB

Grade: AlCrN

Cutting Edge Count: 4

EDP: 642672

EAN: 7320760642672

MFG Part Number: 5983604
