S814HB25.0

S814HB25.0

SKU DOR5983618
by Dormer Pramet
Primary Use: Possible Use:

Short series end mill with 4 flutes, diameter 25mm with 45mm length of cut, 121mm overall length and 0.3mm 45° chamfered corner edges, according to DIN 6527 L standard with a 25mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$492.63 - $492.63
$492.63
$492.63 - $492.63
$492.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

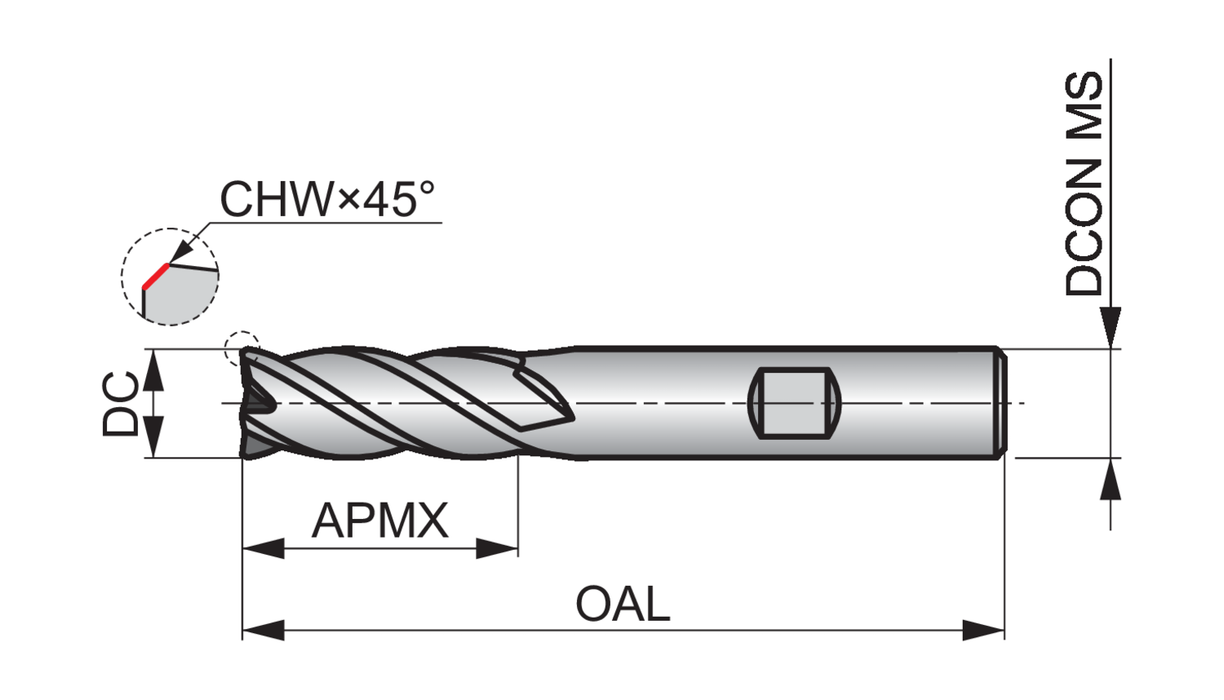

Material: HM

Cutting Diameter - in (DC): 0.9843

Cutting Diameter - mm (DC): 25.0

Overall Length (OAL): 4.7638

Connetion Diameter: 0.9843

Max. Depth of Cut: 1.7717

Shank: Cylindrical shank DIN 6535 HB

Grade: AlCrN

Cutting Edge Count: 4

EDP: 642719

EAN: 7320760642719

MFG Part Number: 5983618
