S814HB8.0

S814HB8.0

SKU DOR5983635
by Dormer Pramet
Primary Use: Possible Use:

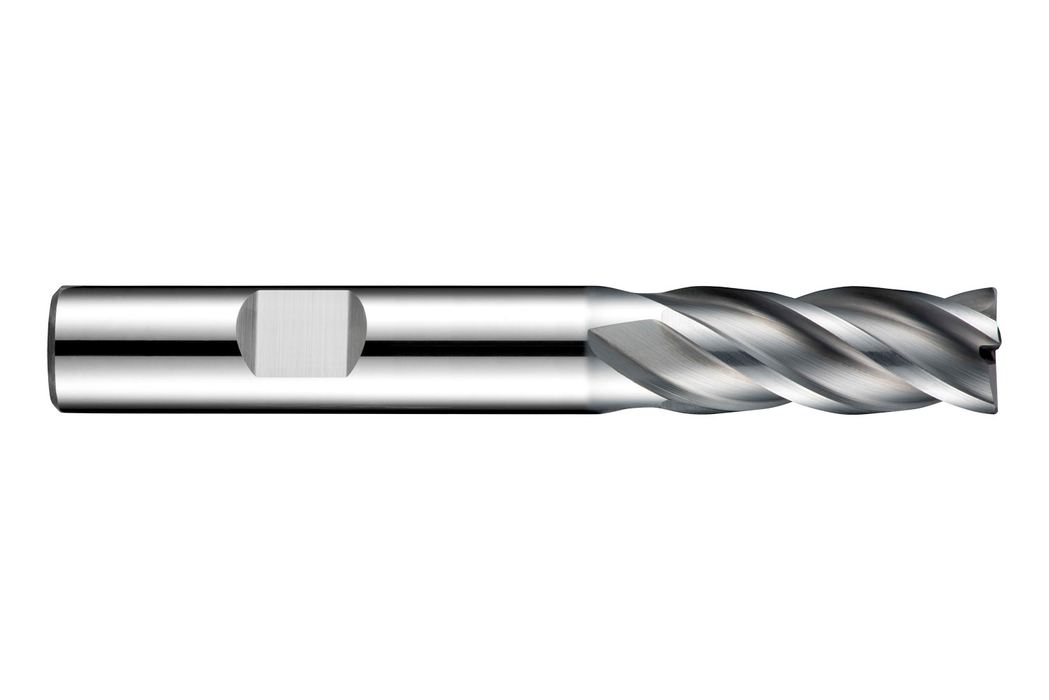

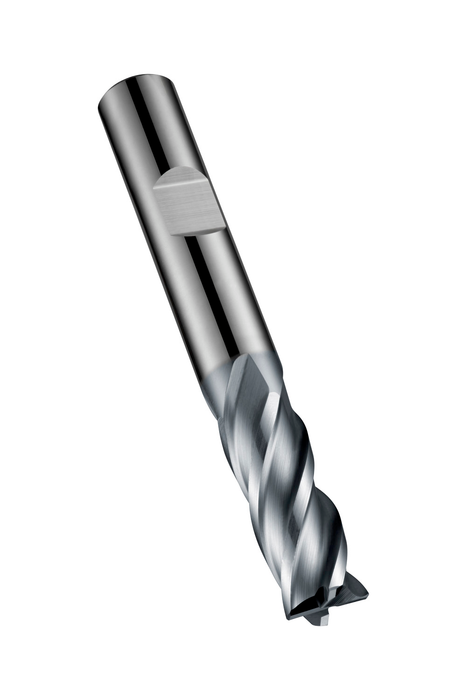

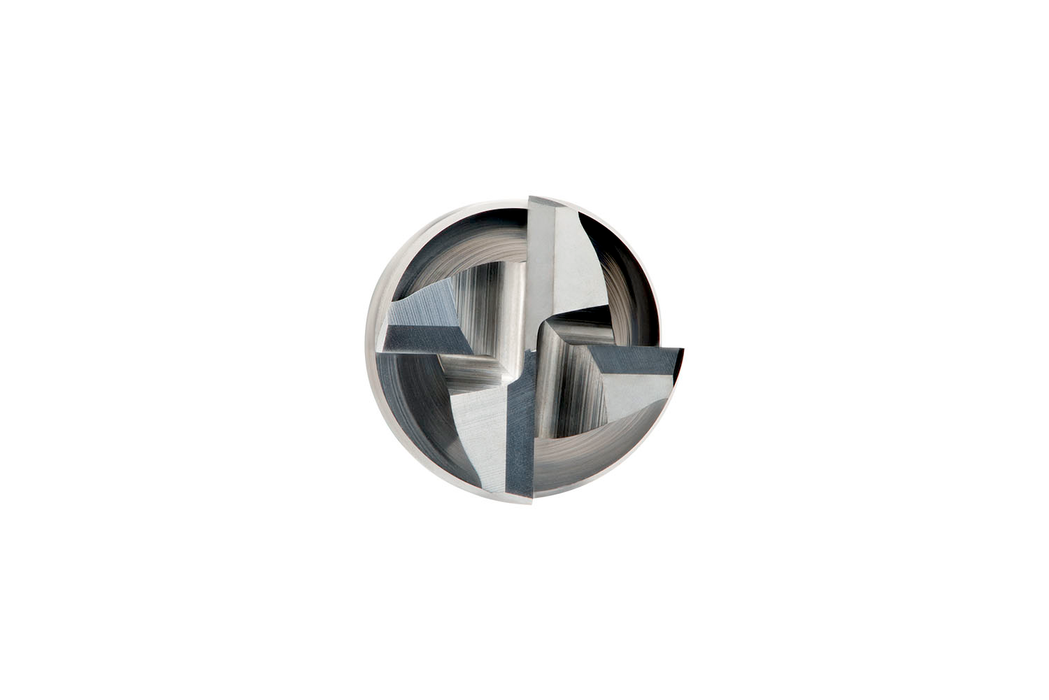

Short series end mill with 4 flutes, diameter 8mm with 19mm length of cut, 63mm overall length and 0.13mm 45° chamfered corner edges, according to DIN 6527 L standard with a 8mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$88.80 - $88.80
$88.80
$88.80 - $88.80
$88.80
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

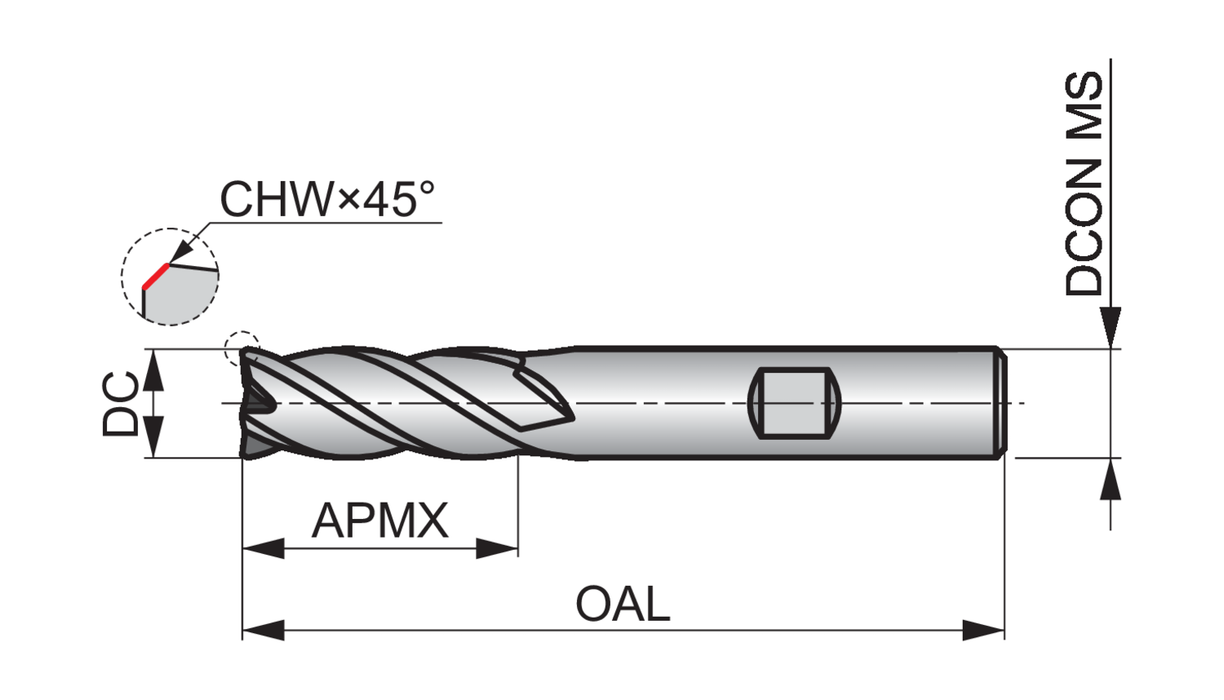

Material: HM

Cutting Diameter - in (DC): 0.315

Cutting Diameter - mm (DC): 8.0

Overall Length (OAL): 2.4803

Connetion Diameter: 0.315

Max. Depth of Cut: 0.748

Shank: Cylindrical shank DIN 6535 HB

Grade: AlCrN

Cutting Edge Count: 4

EDP: 642665

EAN: 7320760642665

MFG Part Number: 5983635
