B1702.03

B1702.03

SKU DOR5986801
by Dormer Pramet
Primary Use: Possible Use:

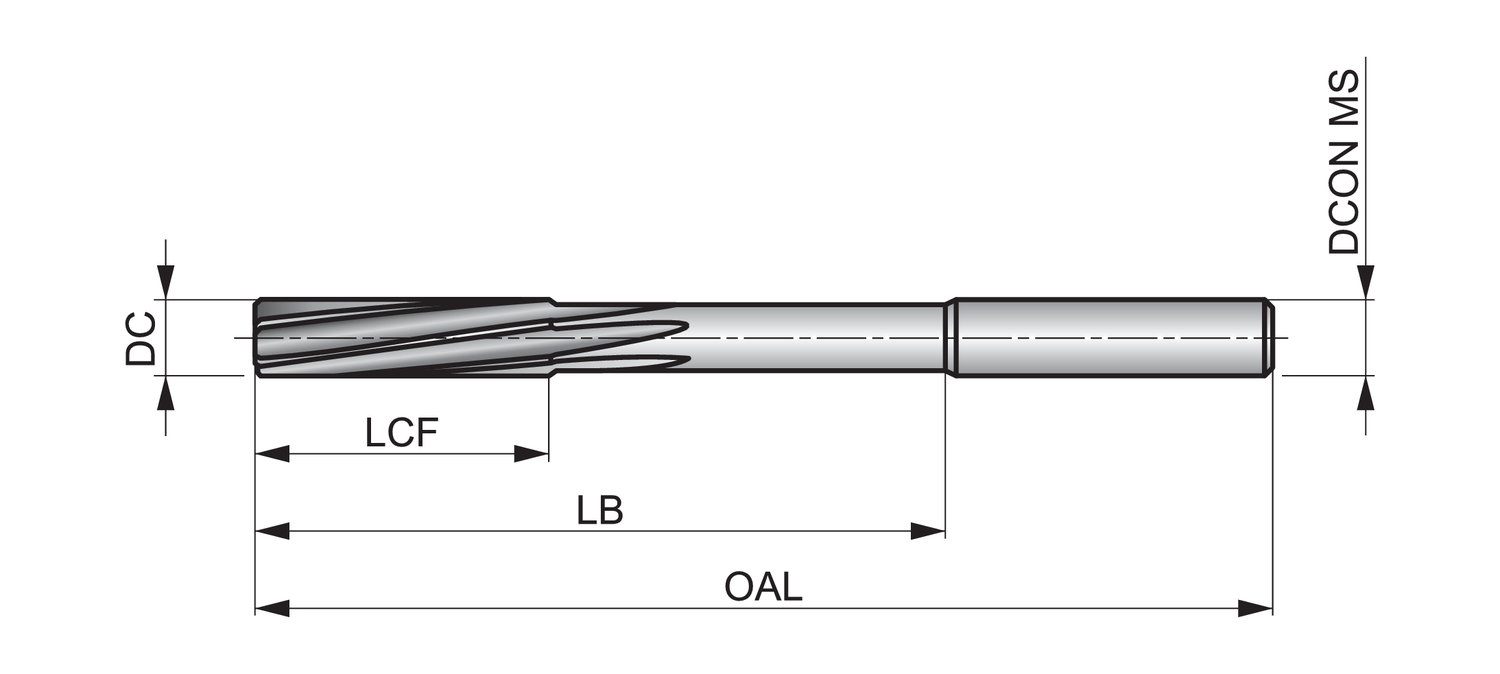

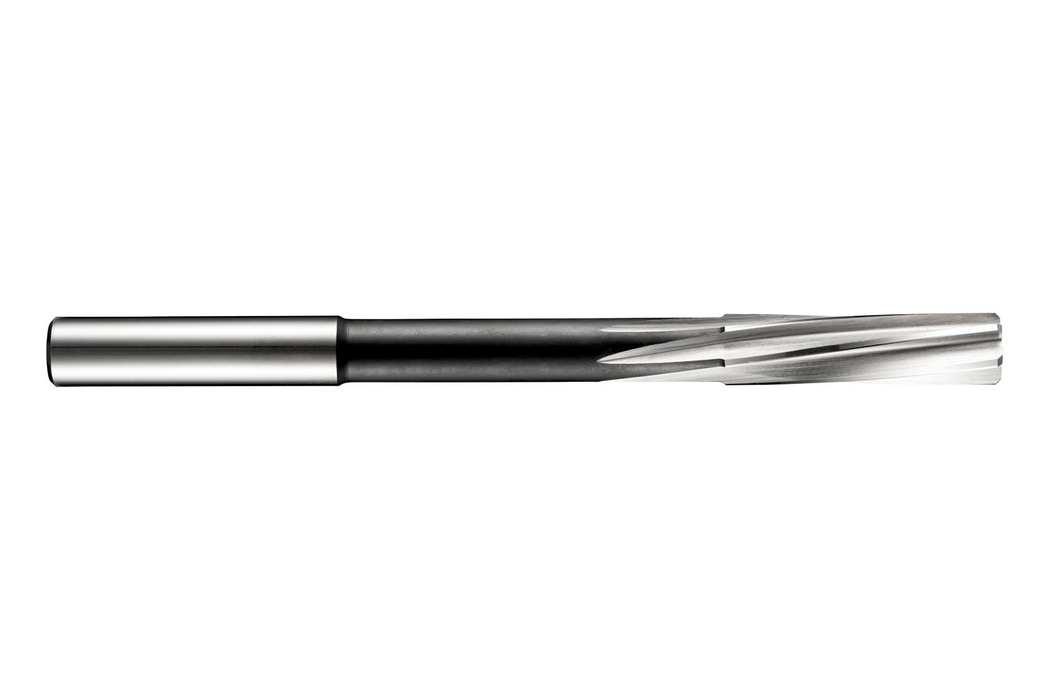

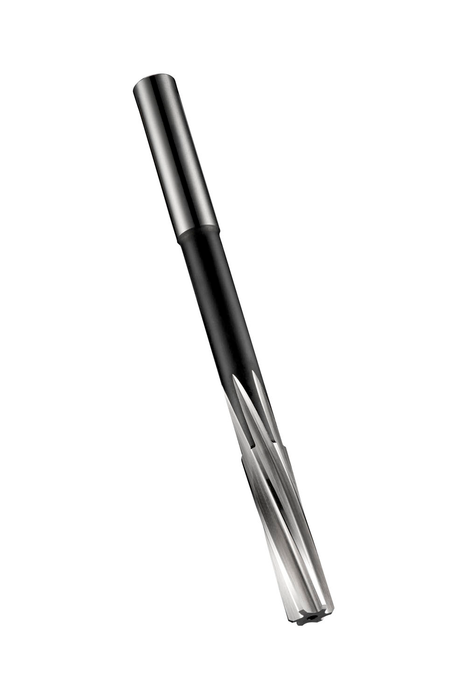

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 2.03mm with an overall length of 49mm, a flute length of 11mm and 24mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 2E9 or 2H10, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$52.89 - $52.89
$52.89
$52.89 - $52.89
$52.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.0799

Cutting Diameter - mm (DC): 2.03

Overall Length (OAL): 1.9291

Connetion Diameter: 0.0787

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 130926

EAN: 7320760130926

MFG Part Number: 5986801
