B9534.0

B9534.0

SKU DOR5986802
by Dormer Pramet
Primary Use: Possible Use:

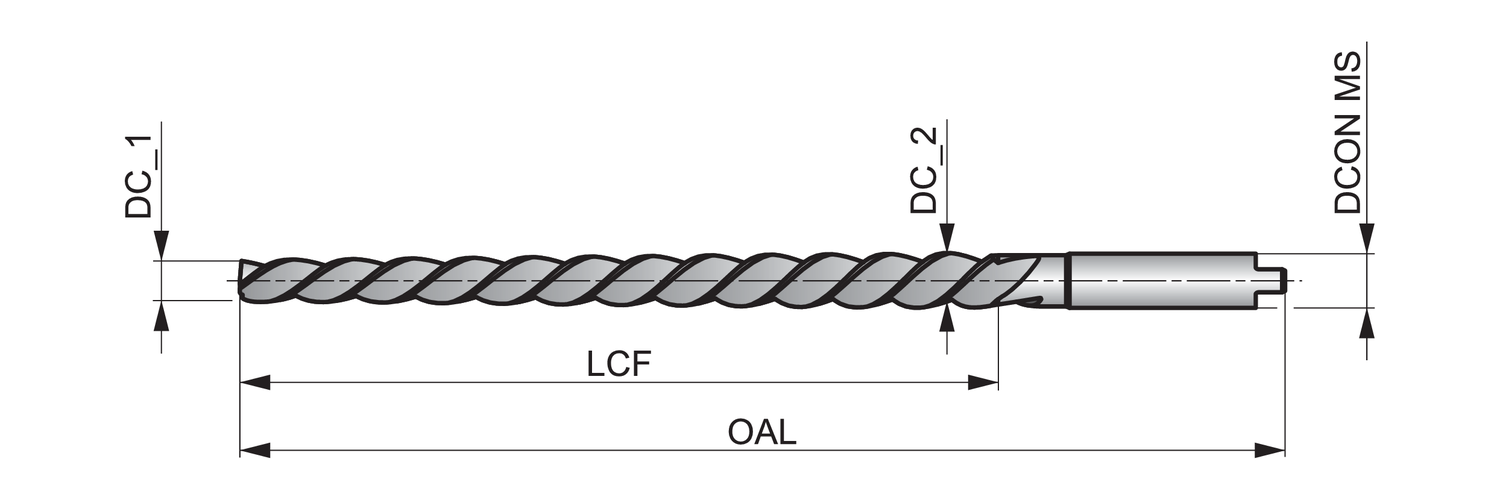

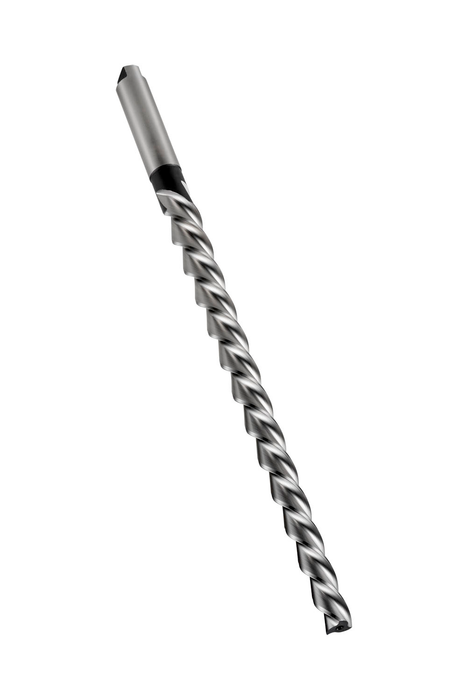

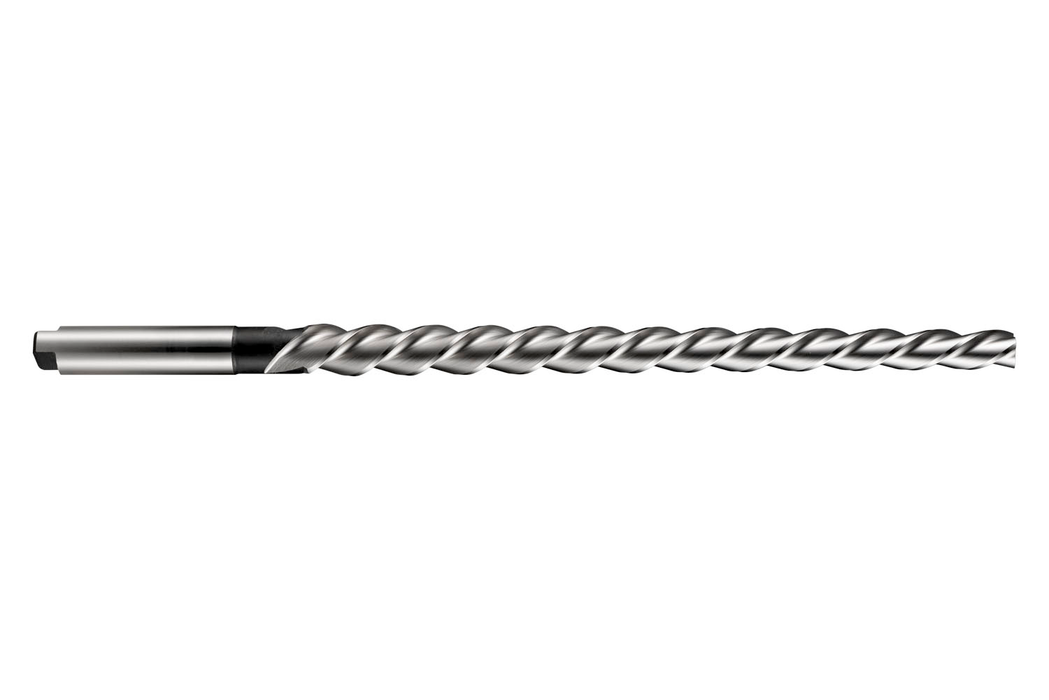

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 3.90mm with an overall length of 112mm, a flute length of 68mm and 5.26mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 4.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$72.17 - $72.17
$72.17
$72.17 - $72.17
$72.17
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Overall Length (OAL): 4.4094

Connetion Diameter: 0.1969

Tool Direction: Right

Shank: Cylindrical shank with Tang

Grade: Bright

EDP: 53935

EAN: 7320760053935

MFG Part Number: 5986802
