B12120.0

SKU DOR5986803
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $276.30 CAD - Original price $276.30 CAD
Original price
$276.30 CAD
$276.30 CAD - $276.30 CAD
Current price $276.30 CAD

Sold in packs of: 1

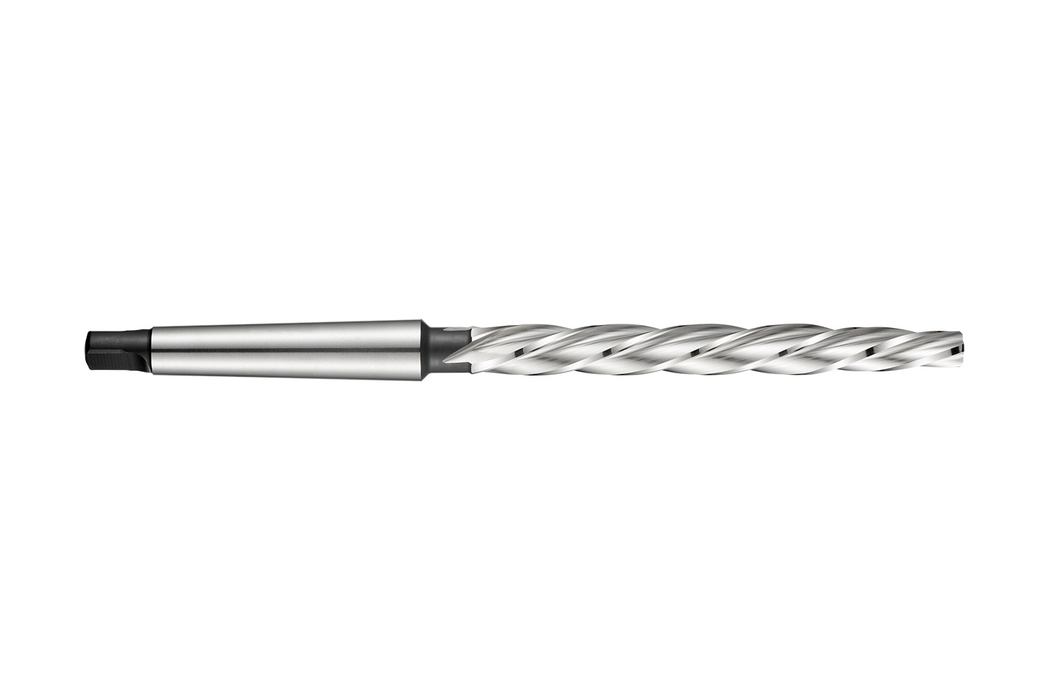

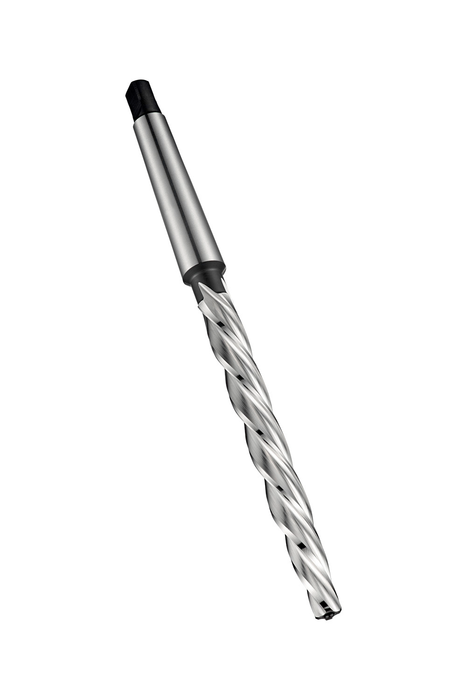

Bridge reamer with left hand fast spiral flutes and a Morse taper shank, nominal diameter 20.00mm with an overall length of 271mm, a flute length of 155mm and 62mm starting taper (1:10), according to DIN 311 standard for correcting misaligned holes in steel building structures within k11 tolerance, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B12120.0
GradeBright/ST
Product Number5986803
Product FamilyB121
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)10.6693"
Overall Length — mm (OAL)271.0 mm
Flute Length — mm (LCF)155.0 mm
Number of Flutes (NOF)4
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardDIN 311
Reference Numbers
EDP Number49129
EAN7320760049129
File Type Download

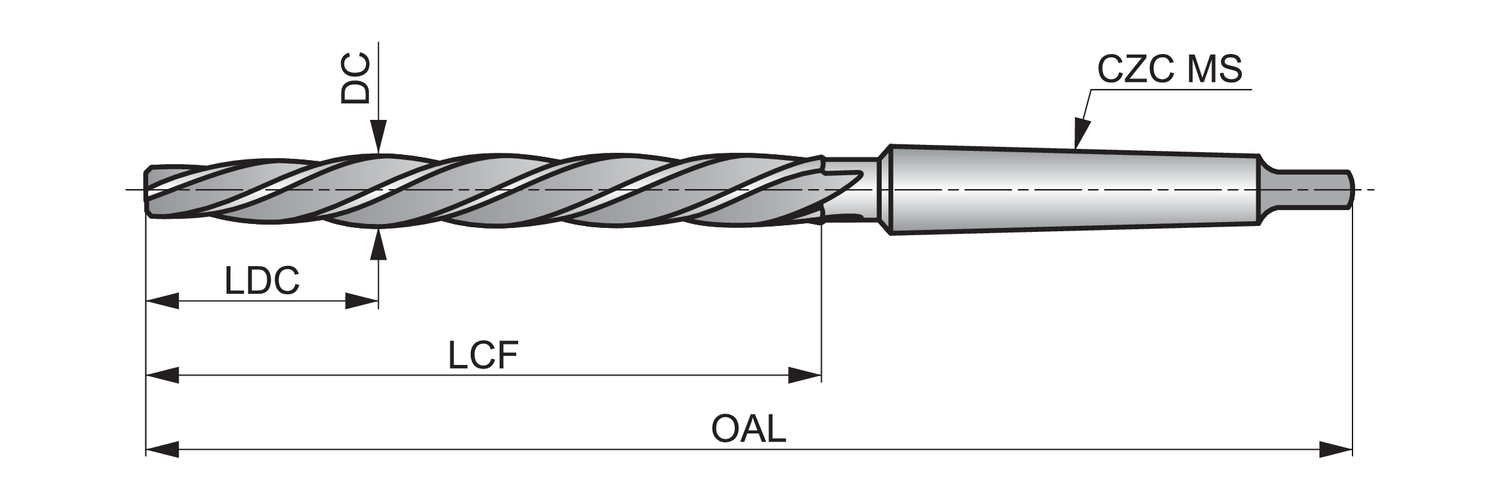

B12120.0 — Line Drawing PDF Download
