B1702.5

B1702.5

SKU DOR5986817
by Dormer Pramet
Primary Use: Possible Use:

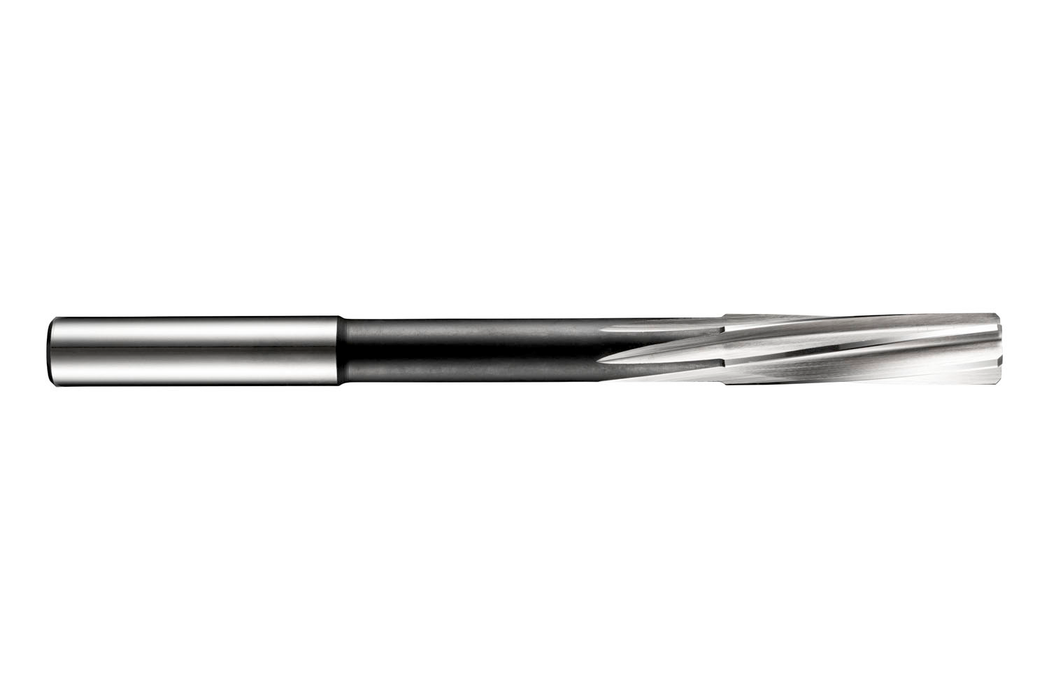

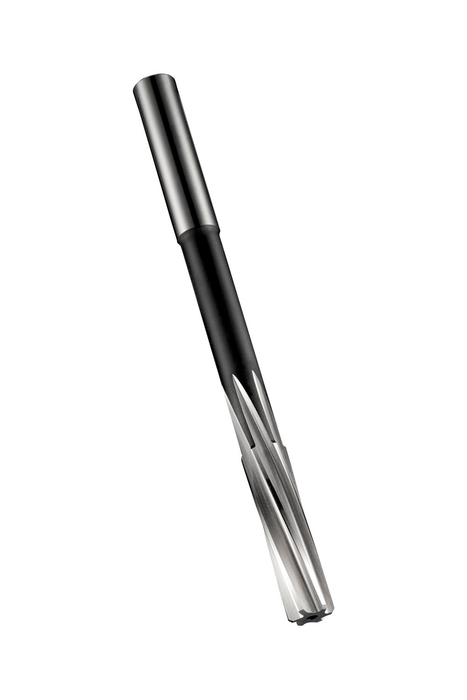

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 2.50mm with an overall length of 57mm, a flute length of 14mm and 28mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 2.5JS8 or 2.5JS9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$53.87 - $53.87
$53.87
$53.87 - $53.87
$53.87
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

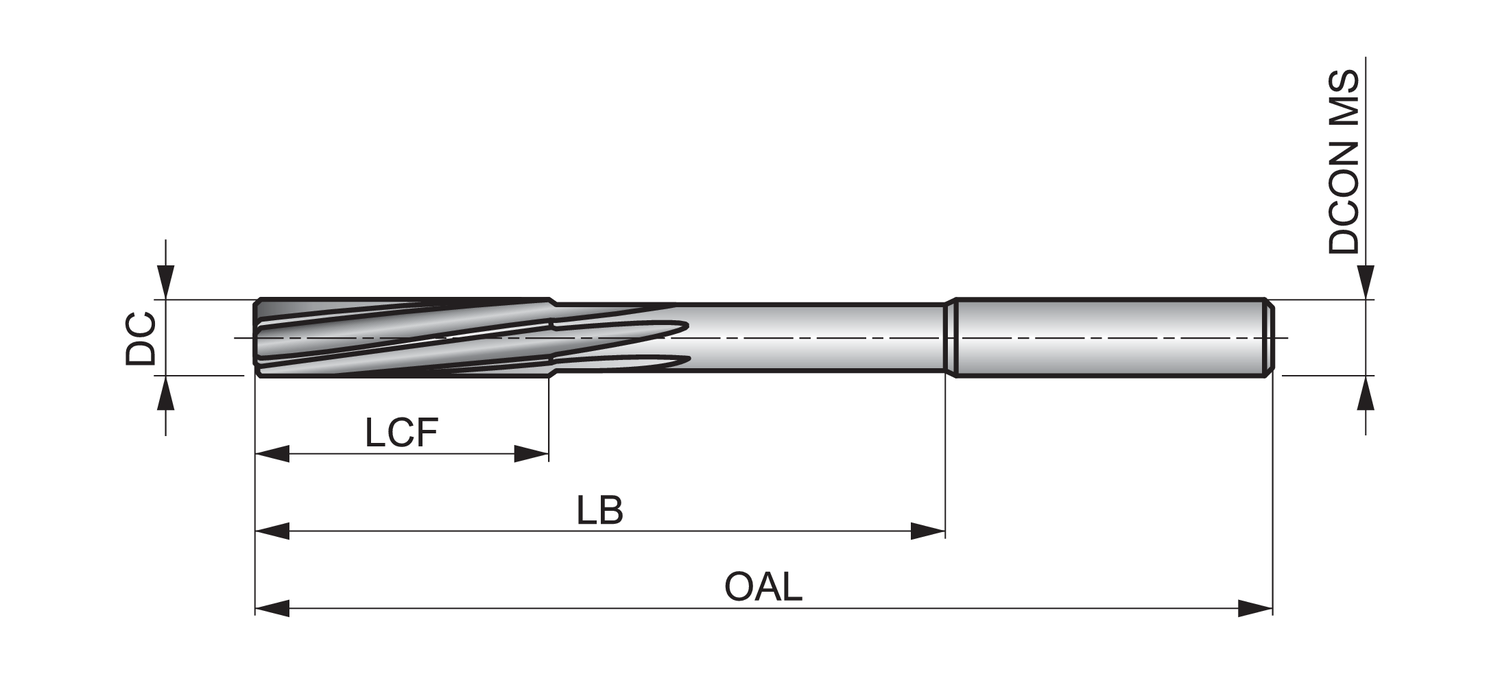

Material: HSS-E

Cutting Diameter - in (DC): 0.0984

Cutting Diameter - mm (DC): 2.5

Overall Length (OAL): 2.2441

Connetion Diameter: 0.0984

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 131374

EAN: 7320760131374

MFG Part Number: 5986817
