B16126.0

SKU DOR5986822
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $240.23 CAD - Original price $240.23 CAD
Original price
$240.23 CAD
$240.23 CAD - $240.23 CAD
Current price $240.23 CAD

Sold in packs of: 1

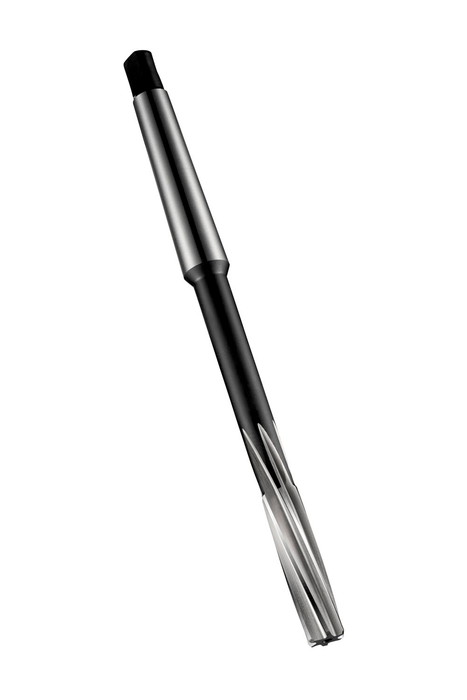

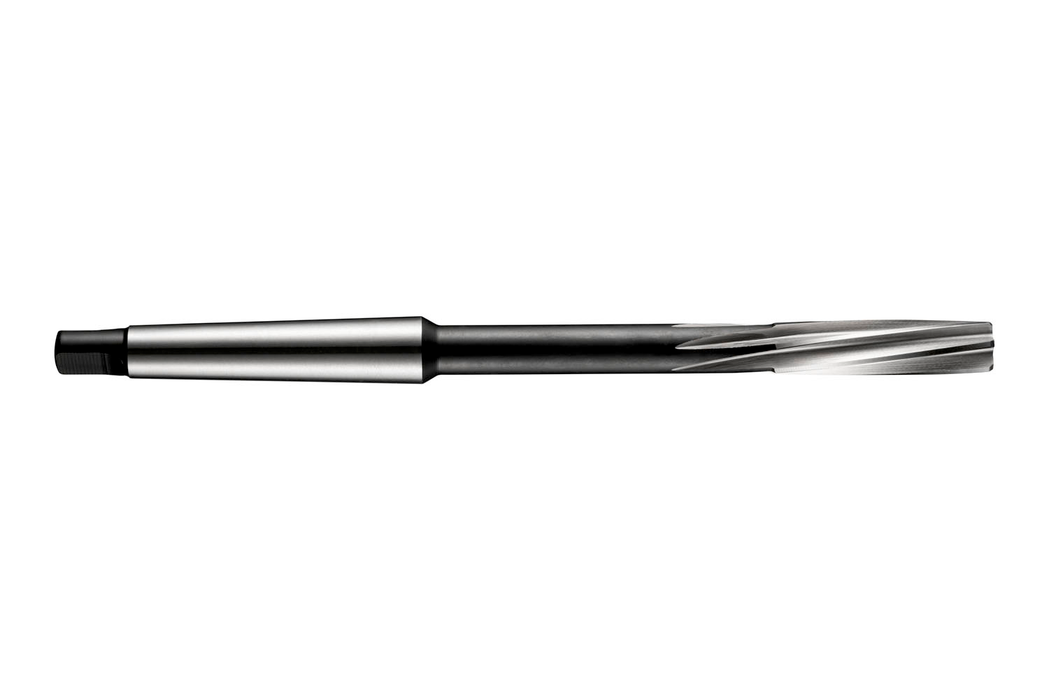

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 26.00mm with an overall length of 273mm, a flute length of 70mm and 174mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B16126.0
GradeBright
Product Number5986822
Product FamilyB161

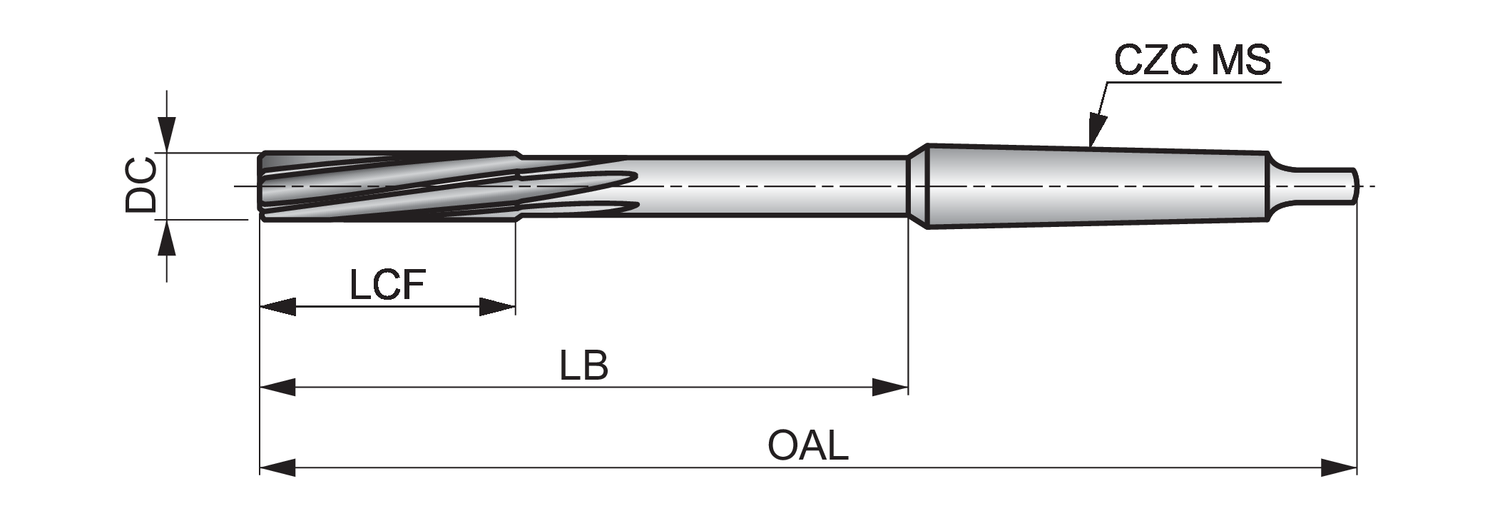

Dimensions
Cutting Diameter — in (DC)1.0236"
Cutting Diameter — mm (DC)26.0 mm
Overall Length — in (OAL)10.748"
Overall Length — mm (OAL)273.0 mm
Flute Length — mm (LCF)70.0 mm
Number of Flutes (NOF)8
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardDIN 208
Reference Numbers
EDP Number49891
EAN7320760049891
File Type Download
B16126.0 — Line Drawing PDF Download
