B1613.0

SKU DOR5986835
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $108.24 CAD - Original price $108.24 CAD
Original price
$108.24 CAD
$108.24 CAD - $108.24 CAD
Current price $108.24 CAD

Sold in packs of: 1

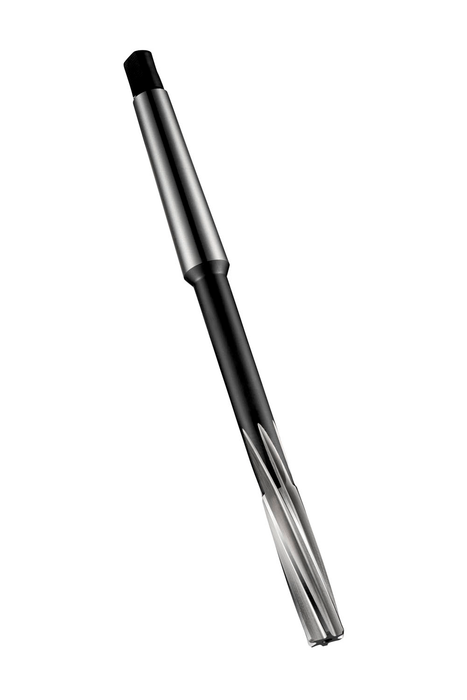

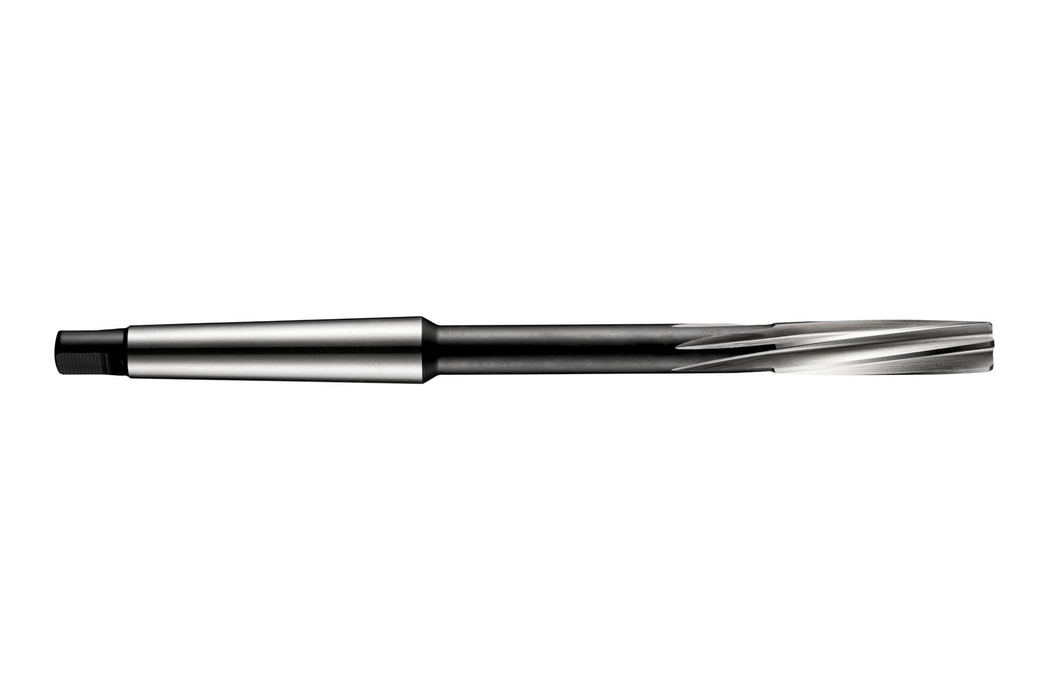

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 3.00mm with an overall length of 113mm, a flute length of 15mm and 47.5mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1613.0
GradeBright
Product Number5986835
Product FamilyB161

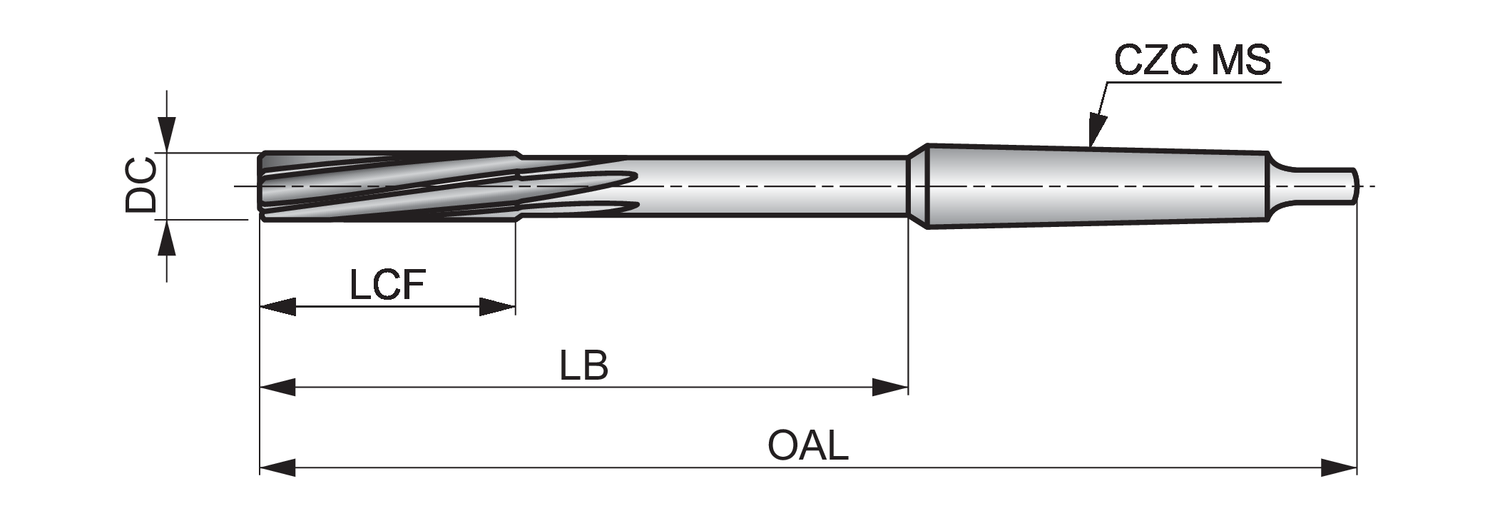

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)4.4488"
Overall Length — mm (OAL)113.0 mm
Flute Length — mm (LCF)15.0 mm
Number of Flutes (NOF)6
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardDIN 208
Reference Numbers
EDP Number49914
EAN7320760049914
File Type Download
B1613.0 — Line Drawing PDF Download
