B9535.0

B9535.0

SKU DOR5986843
by Dormer Pramet
Primary Use: Possible Use:

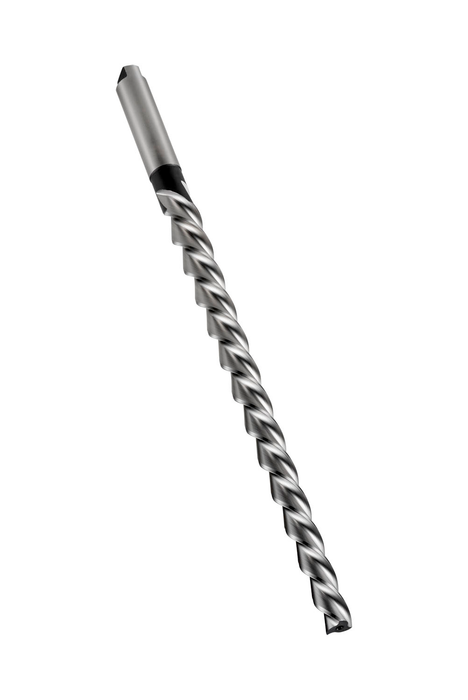

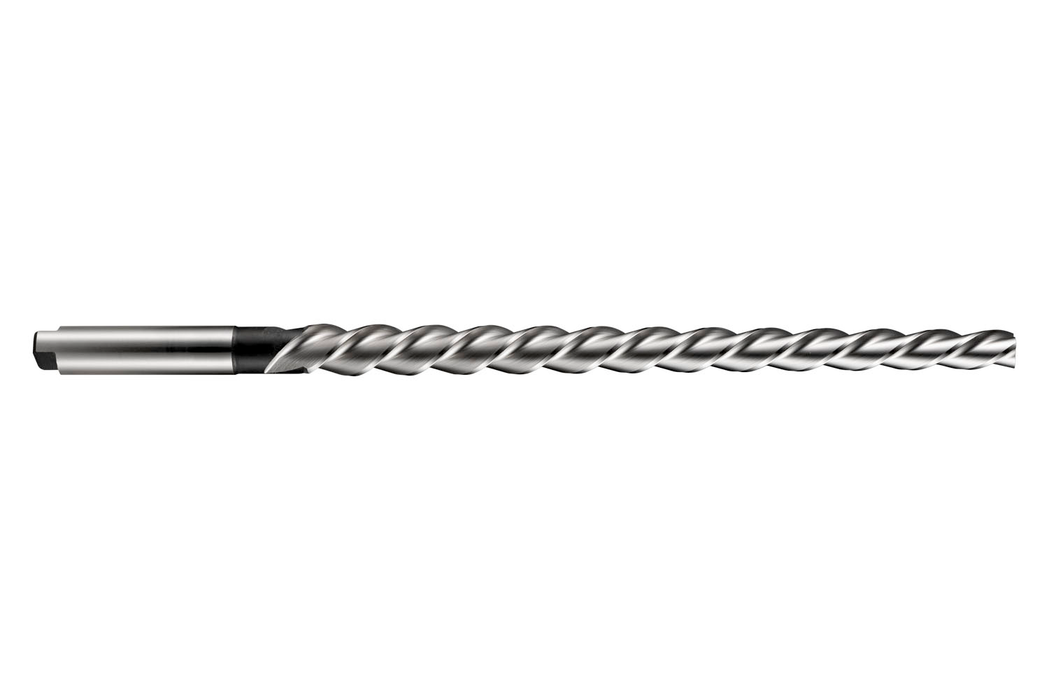

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 4.90mm with an overall length of 122mm, a flute length of 73mm and 6.36mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 5.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$78.59 - $78.59
$78.59
$78.59 - $78.59
$78.59
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

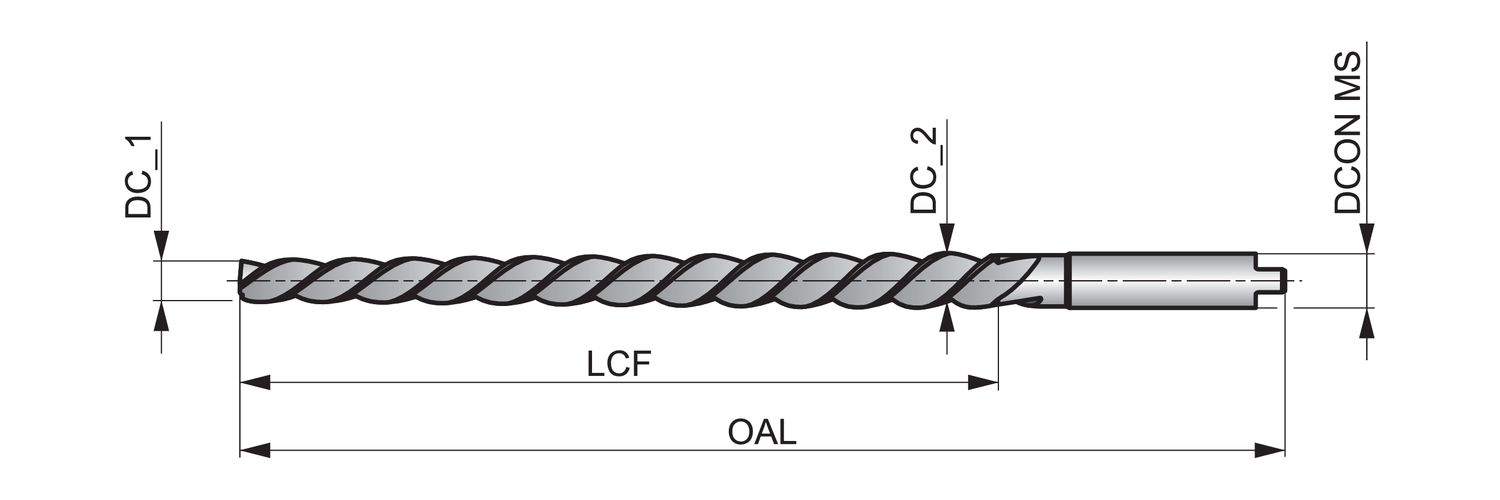

Material: HSS-E

Overall Length (OAL): 4.8031

Connetion Diameter: 0.248

Tool Direction: Right

Shank: Cylindrical shank with Tang

Grade: Bright

EDP: 53942

EAN: 7320760053942

MFG Part Number: 5986843
