B1705.02
B1705.02
B1705.02

B1705.02

SKU DOR5986915
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.37 CAD - $54.37 CAD
$54.37 CAD
$54.37 CAD - $54.37 CAD
$54.37 CAD

Sold in packs of: 1

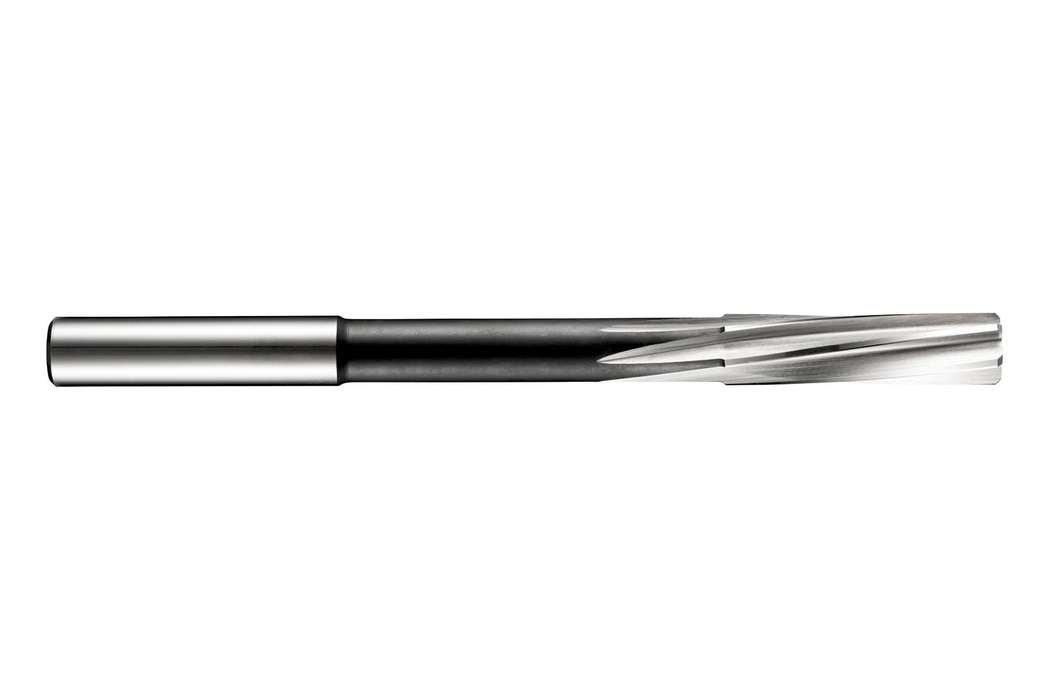

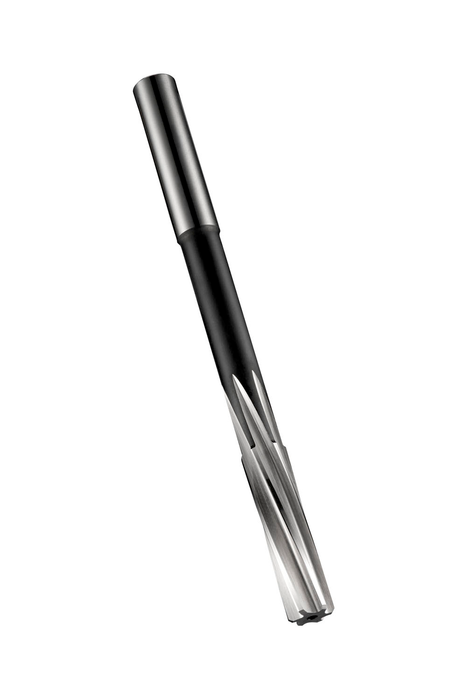

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 5.02mm with an overall length of 86mm, a flute length of 23mm and 52mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 5F8 or 5H9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1705.02
GradeBright
Product Number5986915
Product FamilyB170

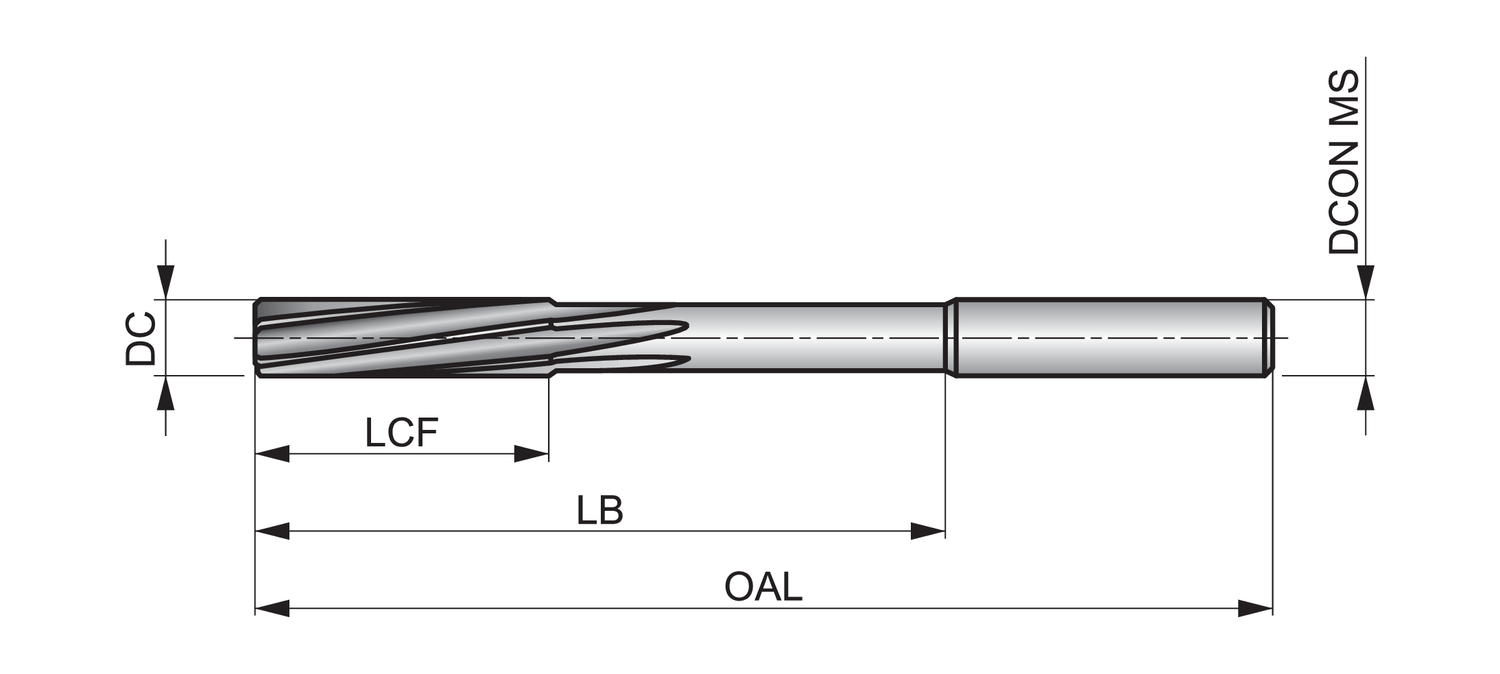

Dimensions
Cutting Diameter — in (DC)0.1976"
Cutting Diameter — mm (DC)5.02 mm
Overall Length — in (OAL)3.3858"
Overall Length — mm (OAL)86.0 mm
Flute Length — mm (LCF)23.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)6
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 212
Reference Numbers
EDP Number133804
EAN7320760133804
File Type Download
B1705.02 — Line Drawing PDF Download
