M41CON32

M41CON32

SKU PRE5996049
by Precision Twist Drill
Primary Use: Possible Use:

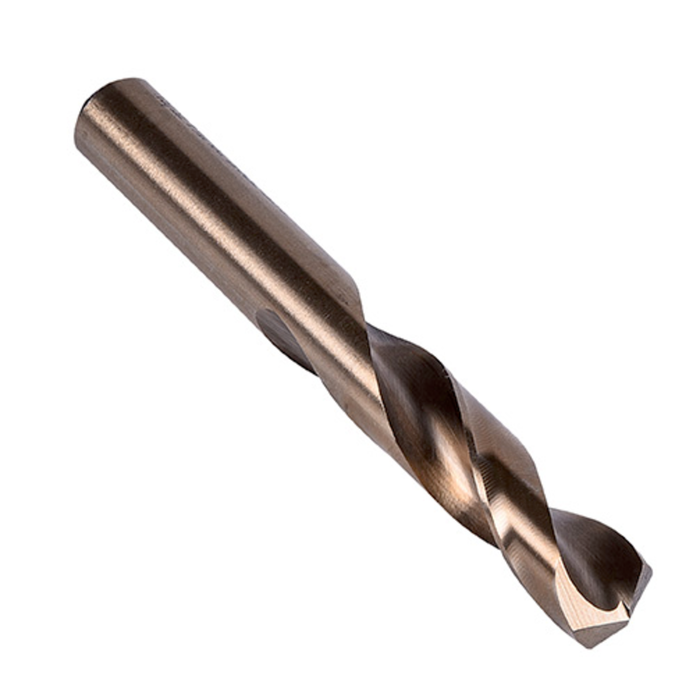

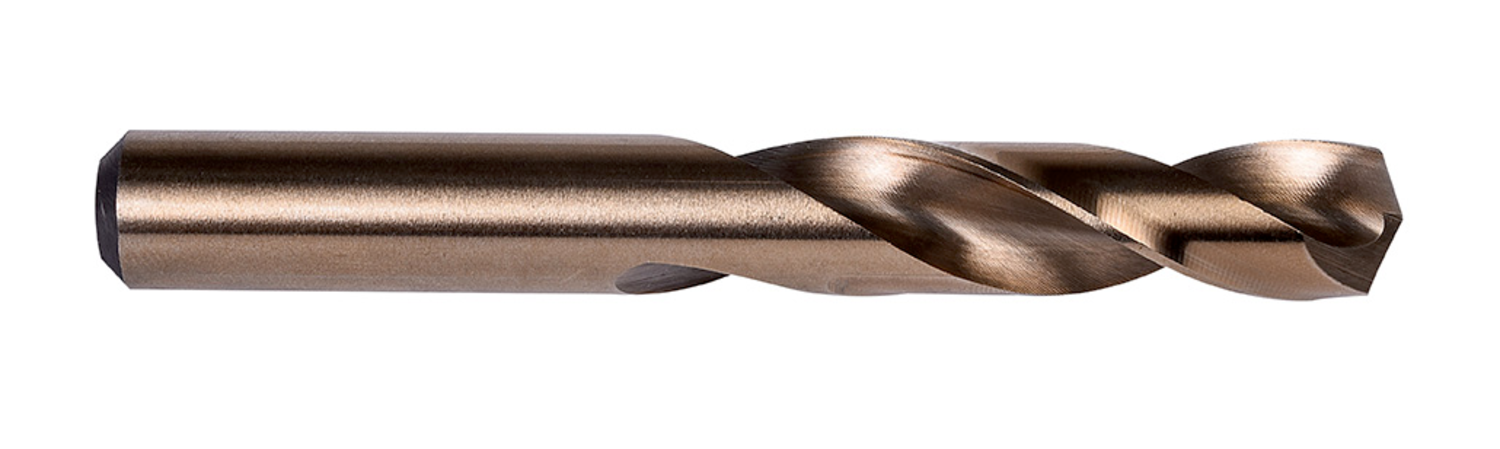

Stub length drill with straight shank, diameter 0.1160" (N32) with an overall length of 1.7/8" and flute length of 7/8" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$3.09 - $3.09
$3.09
$3.09 - $3.09
$3.09
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.116

Cutting Diameter - mm (DC): 2.95

Drill Point Angle - deg: 135

Flute Length: 0.875

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.875

Connetion Diameter: 0.116

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bronze

EDP: 41332

MFG Part Number: 5996049
