HX1021/64

HX1021/64

SKU PRE5996251
by Precision Twist Drill
Primary Use: Possible Use:

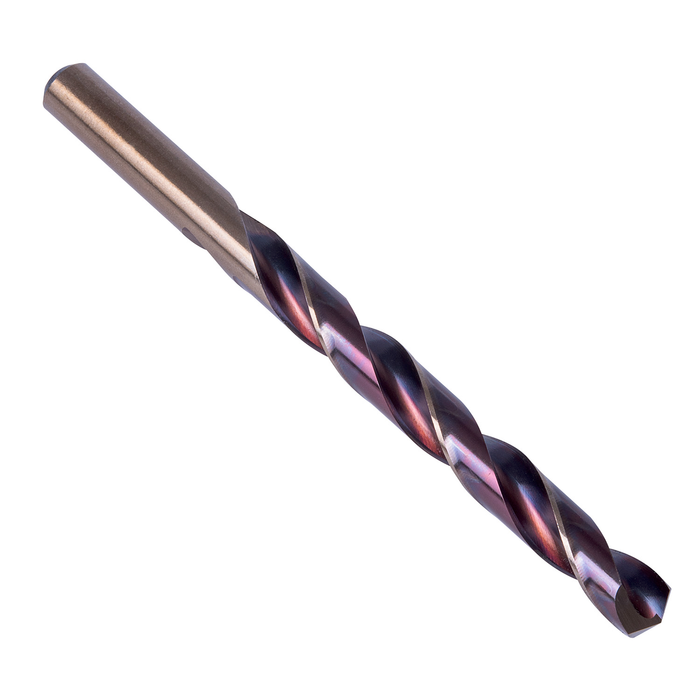

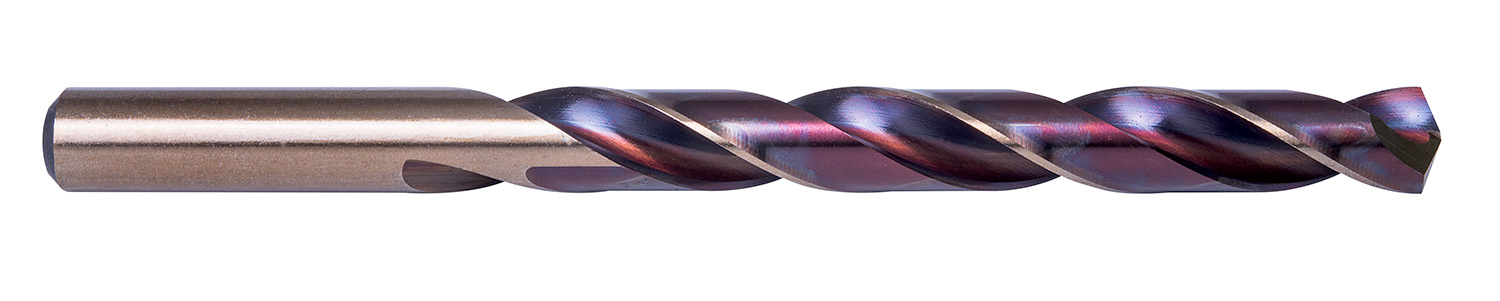

Jobber length drill with straight shank, diameter 0.3281" (21/64) with an overall length of 4.5/8" and flute length of 3.5/16" according to ANSI standard with 135° split point, HSS with purple-bronze finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$6.99 - $6.99
$6.99
$6.99 - $6.99
$6.99
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.3281

Cutting Diameter - mm (DC): 8.33

Drill Point Angle - deg: 135

Flute Length: 3.3125

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.625

Connetion Diameter: 0.3281

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 21/64

Grade: Purple/Bronze

EDP: 22021

MFG Part Number: 5996251
