M51CO9/64

M51CO9/64

SKU PRE5996391
by Precision Twist Drill
Primary Use: Possible Use:

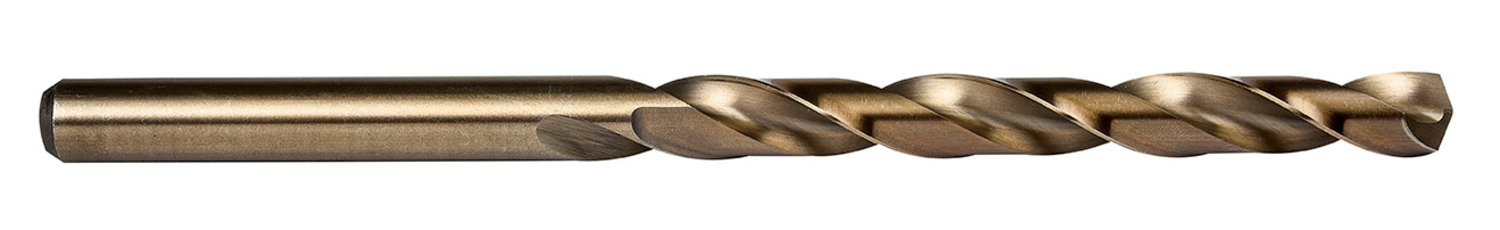

Long series drill with straight shank, diameter 0.1406" (9/64) with an overall length of 5.3/8" and flute length of 3" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 6xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$18.46 - $18.46
$18.46
$18.46 - $18.46
$18.46
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.1406

Cutting Diameter - mm (DC): 3.57

Drill Point Angle - deg: 135

Flute Length: 3.0

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 5.375

Connetion Diameter: 0.1406

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 9/64

Grade: Bronze

EDP: 51309

MFG Part Number: 5996391
