HX15V

HX15V

SKU PRE5996399
by Precision Twist Drill
Primary Use: Possible Use:

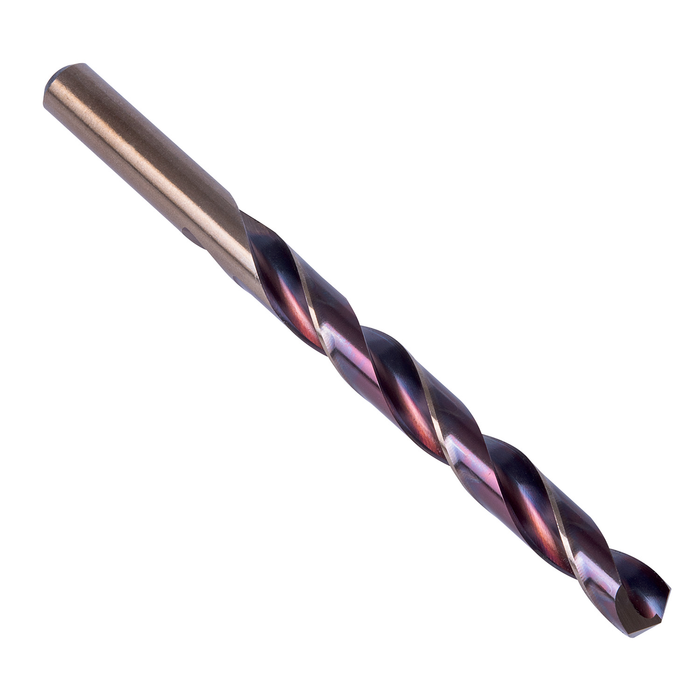

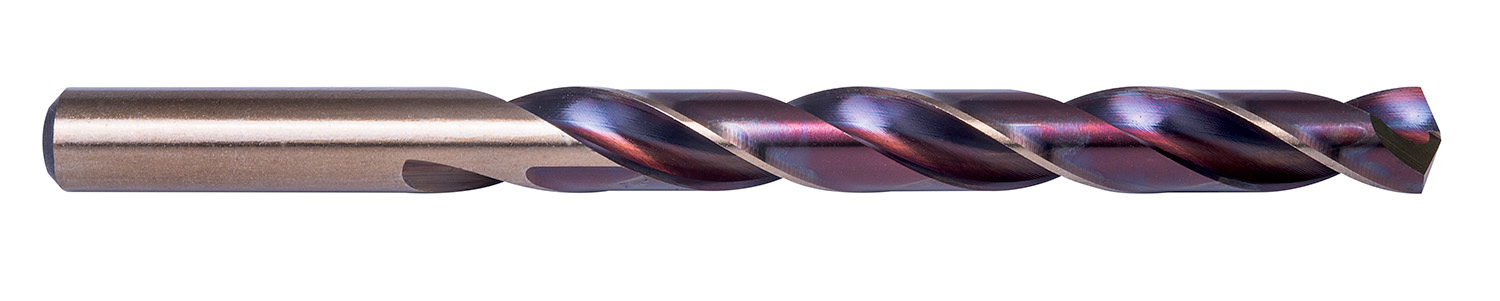

Jobber length drill with straight shank, diameter 0.3770" (V) with an overall length of 5" and flute length of 3.5/8" according to ANSI standard with 135° split point, HSS with purple-bronze finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$10.81 - $10.81
$10.81
$10.81 - $10.81
$10.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.377

Cutting Diameter - mm (DC): 9.58

Drill Point Angle - deg: 135

Flute Length: 3.625

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 5.0

Connetion Diameter: 0.377

Tool Direction: Right

Shank: Cylindrical shank

Letter: V

Grade: Purple/Bronze

EDP: 22222

MFG Part Number: 5996399
