QC1290P1/4

QC1290P1/4

SKU PRE5996417
by Precision Twist Drill
Primary Use: Possible Use:

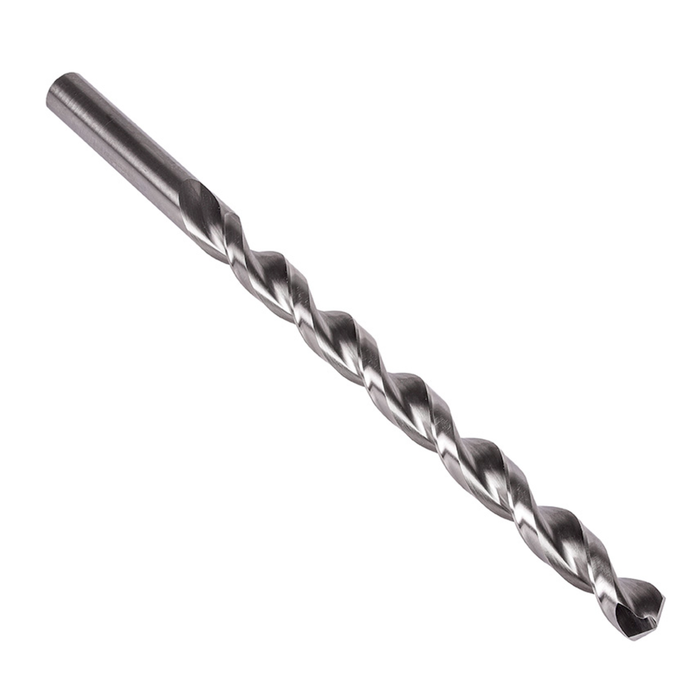

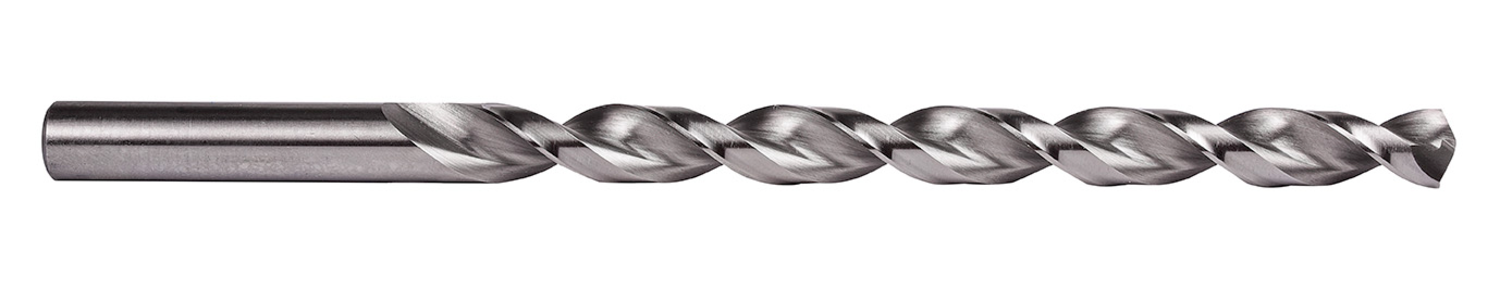

Extra long length drill with straight shank, diameter 0.2500" (1/4) with an overall length of 12" and flute length of 9" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 10xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$39.29 - $39.29
$39.29
$39.29 - $39.29
$39.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.25

Cutting Diameter - mm (DC): 6.35

Drill Point Angle - deg: 135

Flute Length: 9.0

Lenxth x Diameter Ratio: 10

Overall Length (OAL): 12.0

Connetion Diameter: 0.25

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1/4

Grade: Bright

EDP: 60316

MFG Part Number: 5996417
