M51CO13/64

M51CO13/64

SKU PRE5996596
by Precision Twist Drill
Primary Use: Possible Use:

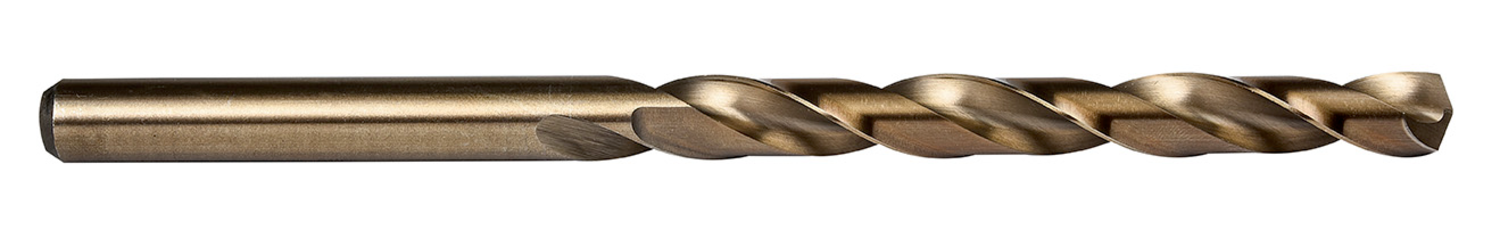

Long series drill with straight shank, diameter 0.2031" (13/64) with an overall length of 6" and flute length of 3.5/8" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 6xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$21.56 - $21.56
$21.56
$21.56 - $21.56
$21.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.2031

Cutting Diameter - mm (DC): 5.16

Drill Point Angle - deg: 135

Flute Length: 3.625

Lenxth x Diameter Ratio: 6

Overall Length (OAL): 6.0

Connetion Diameter: 0.2031

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 13/64

Grade: Bronze

EDP: 51313

MFG Part Number: 5996596
