M42COG

M42COG

SKU PRE5996661
by Precision Twist Drill
Primary Use: Possible Use:

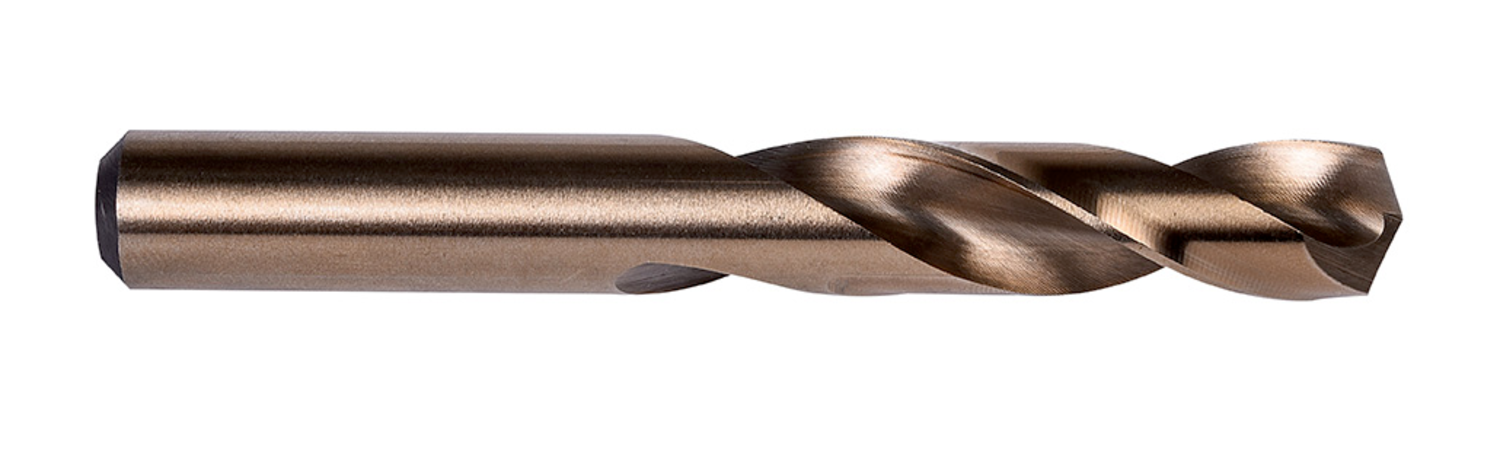

Stub length drill with straight shank, diameter 0.2610" (G) with an overall length of 2.5/8" and flute length of 1.7/16" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$8.81 - $8.81
$8.81
$8.81 - $8.81
$8.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.261

Cutting Diameter - mm (DC): 6.63

Drill Point Angle - deg: 135

Flute Length: 1.4375

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.625

Connetion Diameter: 0.261

Tool Direction: Right

Shank: Cylindrical shank

Letter: G

Grade: Bronze

EDP: 42307

MFG Part Number: 5996661
