QC21PN1

QC21PN1

SKU PRE5996952
by Precision Twist Drill
Primary Use: Possible Use:

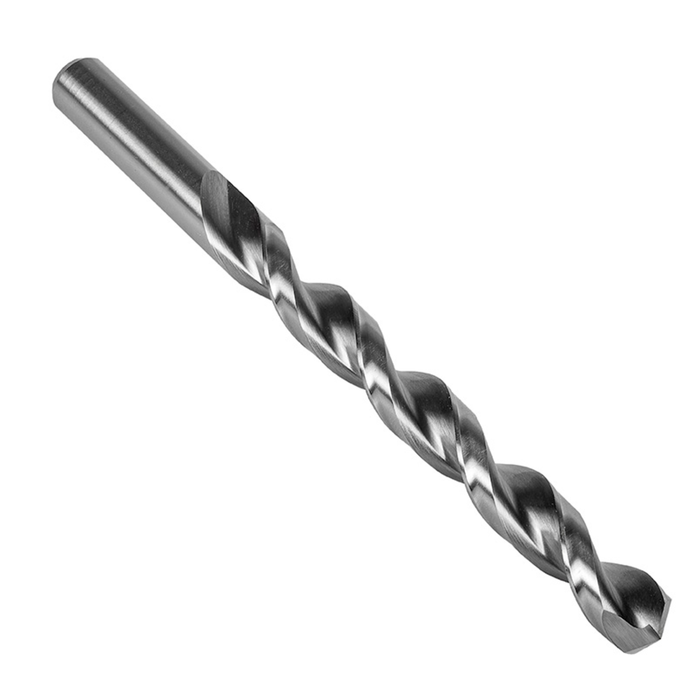

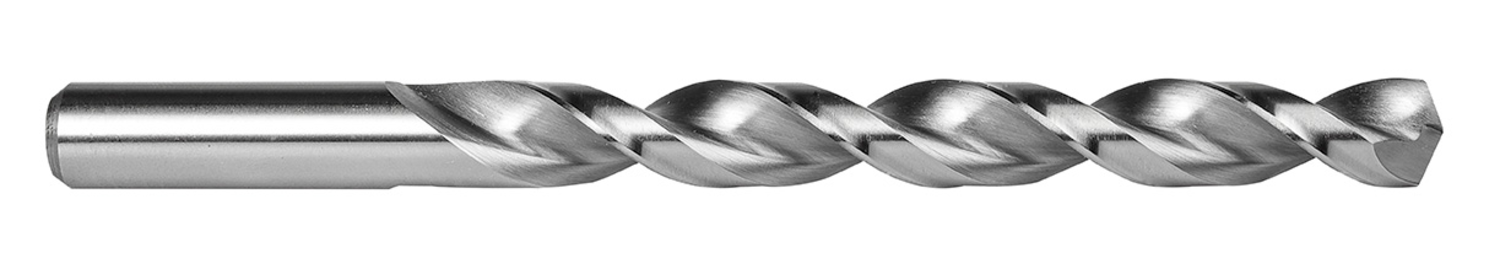

Jobber length drill with straight shank, diameter 0.2280" (N1) with an overall length of 3.7/8" and flute length of 2.5/8" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 4xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$7.01 - $7.01
$7.01
$7.01 - $7.01
$7.01
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

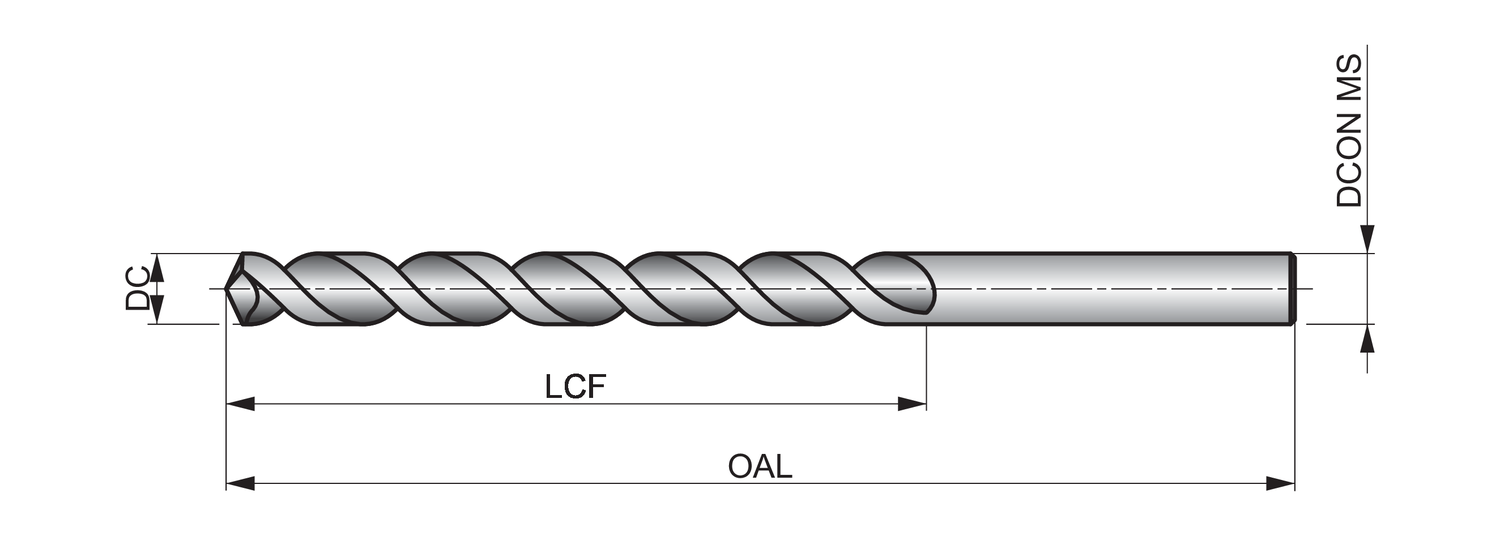

Cutting Diameter - in (DC): 0.228

Cutting Diameter - mm (DC): 5.79

Drill Point Angle - deg: 135

Flute Length: 2.625

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.875

Connetion Diameter: 0.228

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 19401

MFG Part Number: 5996952
