QC21PN14

QC21PN14

SKU PRE5996964
by Precision Twist Drill
Primary Use: Possible Use:

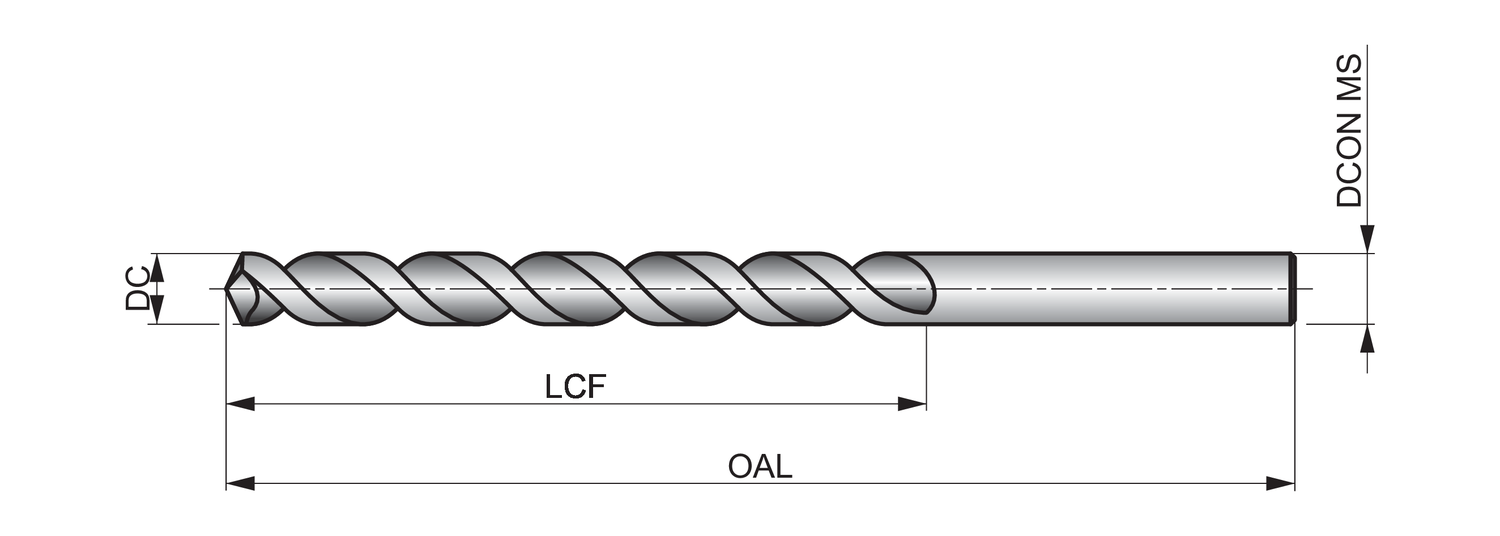

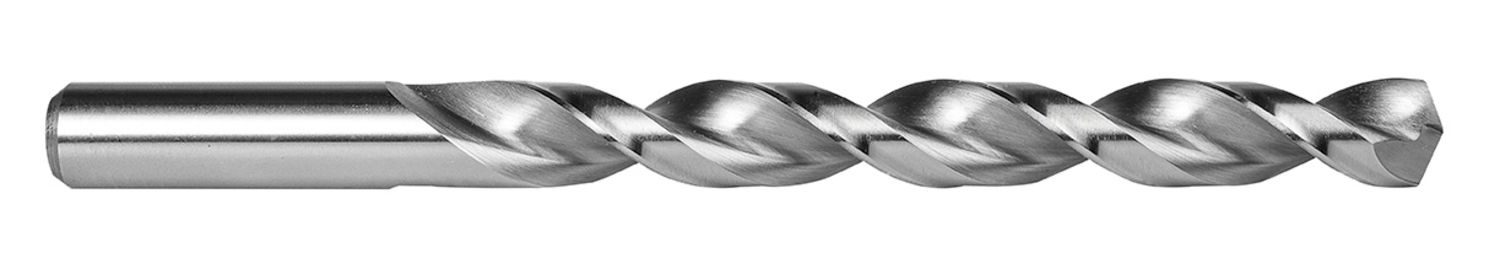

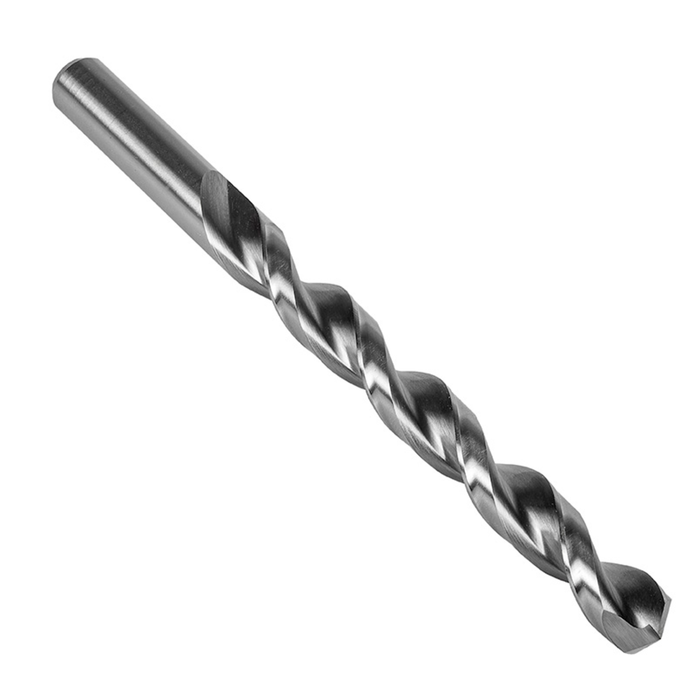

Jobber length drill with straight shank, diameter 0.1820" (N14) with an overall length of 3.3/8" and flute length of 2.3/16" according to ANSI standard with 135° split point, HSS with bright finish and parabolic web for 4xD drilling without pecking in steel and non-ferrous material

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$5.11 - $5.11
$5.11
$5.11 - $5.11
$5.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.182

Cutting Diameter - mm (DC): 4.62

Drill Point Angle - deg: 135

Flute Length: 2.1875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.375

Connetion Diameter: 0.182

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 19414

MFG Part Number: 5996964
